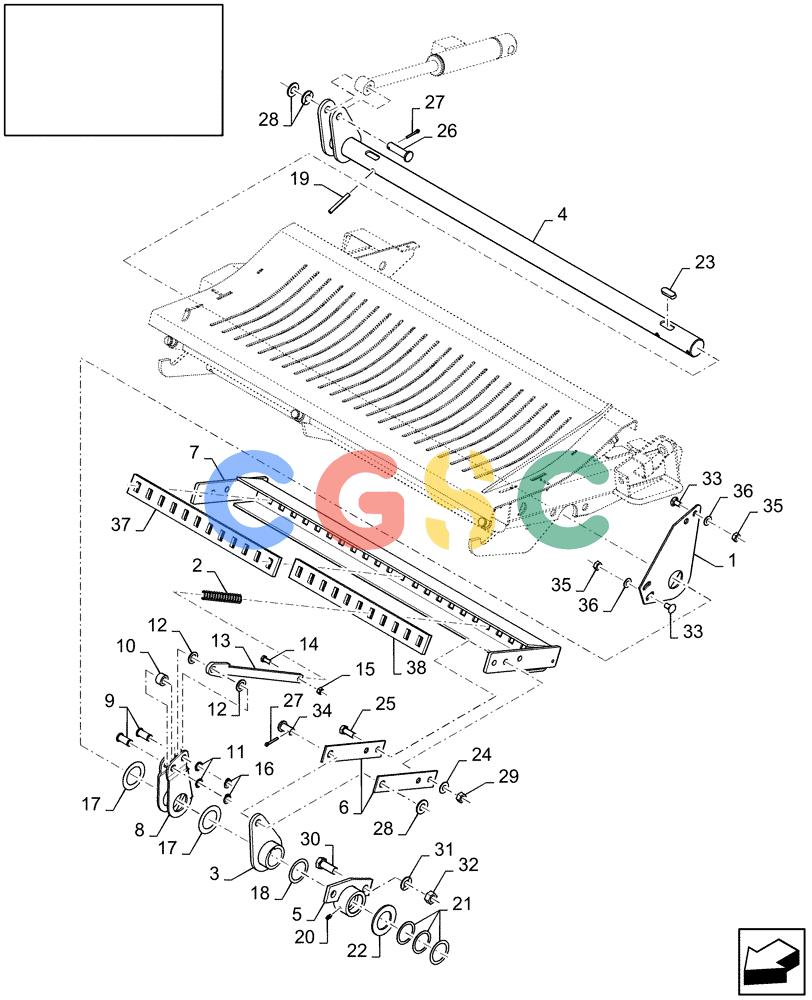

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (18.87727122[02]) - DIA : KNIFE DRAWER KIT - KNIFE DRAWER FOR 33 KNIVES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
87727122
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
84068635
|
[1] |
PLATE
|
ZED
|
| 2. |
84038524
|
[33] |
SPRING,Compression, 1.26" OD x 13.39" L
|
ZED
|
| 3. |
84039463
|
[2] |
LEVER
|
ZED
|
| 4. |
84039315
|
[1] |
SHAFT
|
ZED
|
| 5. |
84039452
|
[2] |
SUPPORT
|
ZED
|
| 6. |
84039309
|
[4] |
COVER PLATE
|
ZED
|
| 7. |
87745298
|
[1] |
U-BRACKET
|
ZED
|
| 8. |
84068634
|
[33] |
LEVER
|
ZED
|
| 9. |
84267351
|
[66] |
PIN,15mm OD x 35mm L
|
ZED
|
| 10. |
84041936
|
[33] |
ROLLER,25mm OD x 15mm L
|
ZED
|
| 11. |
84043973
|
[66] |
FRICTION WASHER,15mm ID x 21mm OD x 1.5mm Thk
|
ZED
|
| 12. |
140090
|
[66] |
WASHER
|
PA
|
| 13. |
84607256
|
[33] |
TOOL
|
ZED
|
| 14. |
120104
|
[33] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 15. |
86629542
|
[33] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 16. |
84041862
|
[66] |
CIRCLIP
|
ZED
|
| 17. |
84005527
|
[66] |
WASHER,46mm ID x 70mm OD x 1mm Thk
|
ZED
|
| 18. |
NLS
|
[4] |
NO LONGER SERVICED
|
BAS
|
| 19. |
412202
|
[3] |
LOCK PIN,8mm OD x 65mm L, Slotted
|
PA
|
| 20. |
321204
|
[2] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 21. |
58821
|
[6] |
WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk
|
NH
|
| 22. |
84814169
|
[1] |
WASHER,46mm ID x 75mm OD x 4mm Thk
|
ZED
|
| 23. |
170019
|
[2] |
KEY,14mm x 9mm x 40mm
|
NH
|
| 24. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 25. |
9706687
|
[4] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 26. |
9850761
|
[1] |
CLEVIS PIN,M16 x 60
|
ZED
|
| 27. |
412685
|
[3] |
COTTER PIN,M4 x 32
|
ZED
|
| 28. |
378246
|
[4] |
WASHER,17mm ID x 34mm OD x 3mm Thk
|
ZED
|
| 29. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 30. |
43168
|
[4] |
BOLT,Hex, M16 x 40mm, Cl 8.8
|
NH
Superseded by part number: 86509867
|
| 31. |
140048
|
[4] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 32. |
100020
|
[4] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 33. |
120041
|
[4] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 34. |
380840
|
[2] |
CLEVIS PIN,M16 x 30
|
NH
|
| 35. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 36. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 37. |
84045049
|
[1] |
COVER PLATE
|
ZED
|
| 38. |
84045050
|
[1] |
COVER PLATE
|
ZED
|
| . . |
86503661
|
[1] |
GREASE
|
GI
|
