纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-017) - COOLER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
241 次

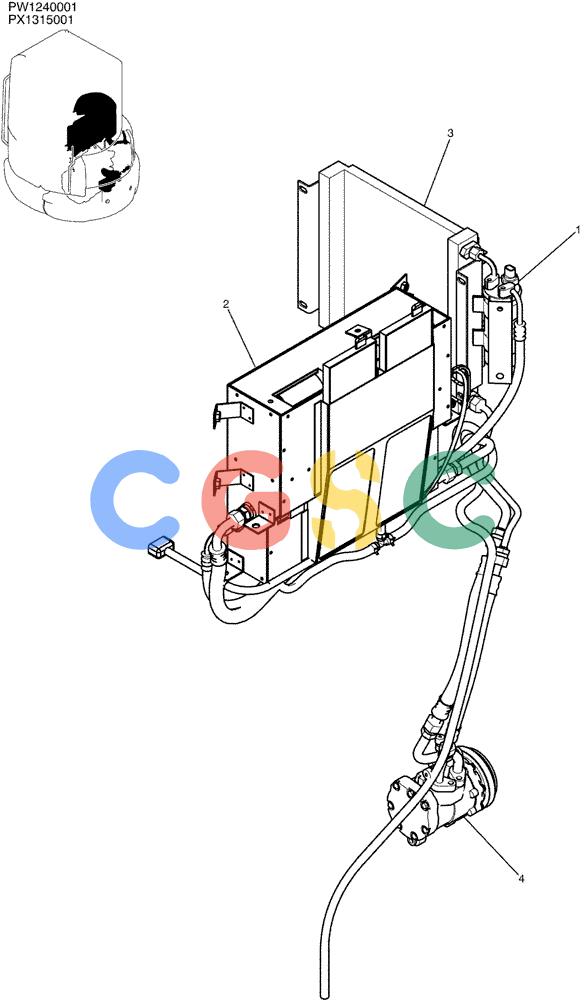

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONDRIER ASSY, AIR PW96V00005F1, SEE FIG 05-018 |
| 2. | PH20M00016F1 | [1] | COOLER | KOBCOOLER ASSY, SEE FIG 05-019 |
| 3. | PH20M01108F1 | [1] | CONDENSER | KOBCONDENSER |
| 3-1. | PH20M01108S009 | [1] | ELECTRIC MOTOR | KOBNot Illustrated – Condenser Fan |
| 4. | PH91V00004F1 | [1] | COMPRESSOR | KOBCOMPRESSOR ASSY |
