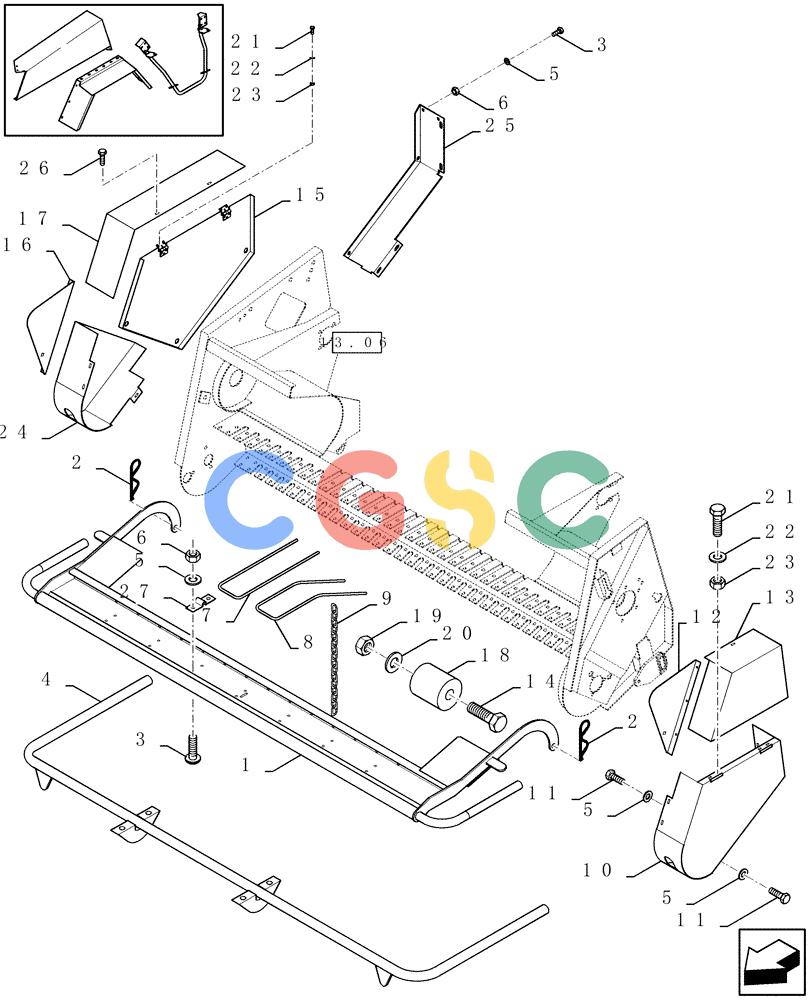

凯斯零件查询(LBX331R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (8/01-12/03) (08.003[01]) - PICK-UP PROTECTION Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84607886
|
[1] |
WINDGUARD
|
ZED
|
| 1. |
84607887
|
[1] |
WINDGUARD
|
ZED
|
| 2. |
80437424
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 437424
|
| 3. |
811-8020
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 4. |
84078429
|
[1] |
CENTRAL RAIL
|
ZED
|
| 4. |
84078427
|
[1] |
CENTRAL RAIL
|
ZED
|
| 5. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 7. |
84607743
|
[4] |
REEL TINE
|
ZED
Short Superseded by part number: 84801141
|
| 8. |
84607782
|
[1] |
REEL TINE
|
ZED
Long Superseded by part number: 84801140
|
| 9. |
84038622
|
[1] |
CHAIN
|
ZED
|
| 10. |
84607790
|
[1] |
SHIELD
|
ZED
|
| 11. |
86511478
|
[19] |
BOLT,Hex Serr, M8 x 1.25 x 16mm
|
ZED
|
| 12. |
84607786
|
[1] |
COVER PLATE
|
ZED
|
| 13. |
84607783
|
[1] |
SHIELD
|
ZED
|
| 14. |
80300662
|
[2] |
BOLT
|
ZED
M12x70 Superseded by part number: 300662
|
| 15. |
84607771
|
[1] |
SHIELD
|
ZED
|
| 16. |
84607785
|
[1] |
COVER PLATE
|
ZED
|
| 17. |
84607811
|
[1] |
SHIELD
|
ZED
|
| 18. |
80395087
|
[2] |
INSULATOR BLOCK
|
ZED
Superseded by part number: 89513995
|
| 19. |
80100038
|
[2] |
NUT
|
ZED
M12 Superseded by part number: 100038
|
| 20. |
80378245
|
[2] |
WASHER
|
ZED
12MM Superseded by part number: 378245
|
| 21. |
614-6016
|
[8] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| 22. |
80322357
|
[8] |
LOCK WASHER,Belleville, M6
|
ZED
16MM Superseded by part number: 322357
|
| 24. |
84607770
|
[1] |
HOUSING
|
ZED
|
| 25. |
84607810
|
[1] |
SHIELD
|
ZED
|
| 27. |
84056308
|
[1] |
PLATE
|
ZED
|
| 6. |
89706690
|
[1] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 23. |
15896221
|
[8] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
