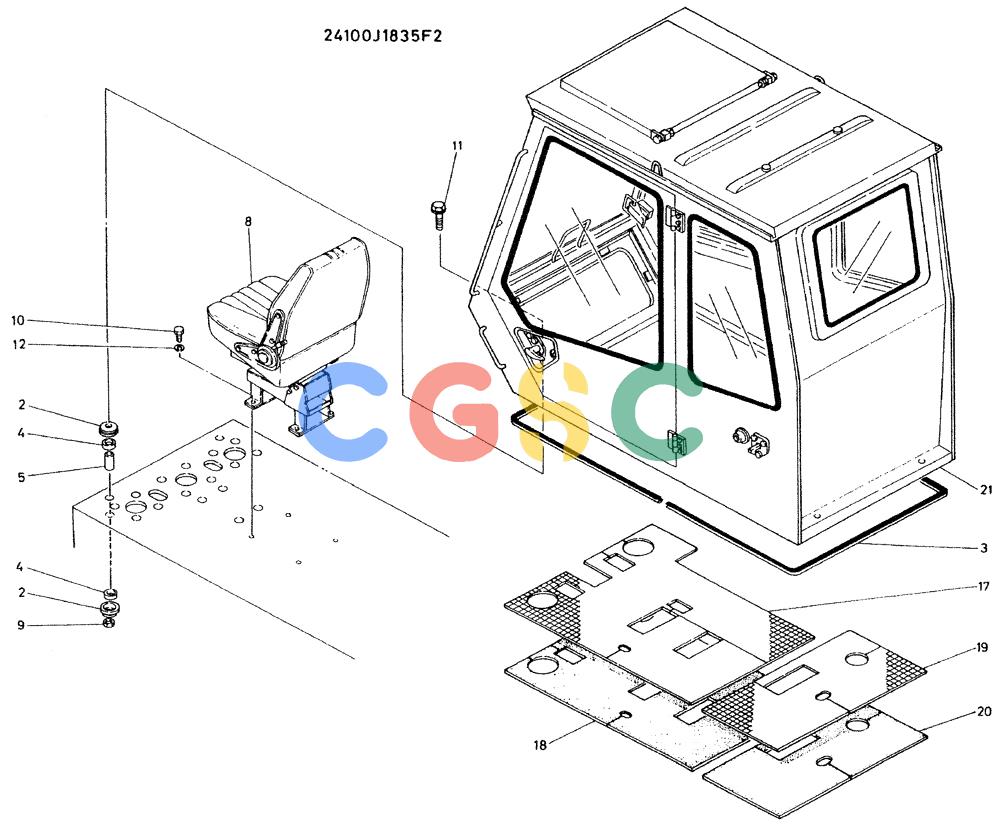

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (02-001) - CAB INST Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
862 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1835F2 | [1] | INSTAL, CAB, CONSISTS OF REF 2 TO | |
| 2. | 2414T776C2 | [10] | COVER | COVER |
| 3. | 2416Z176D8 | [1] | SEAT, RUBBER | |
| 4. | 2416Z179 | [10] | RUBBER, CUSHION | RUBBER, CUSHION |
| 5. | 2418T3989D2 | [5] | SPACER | SPACER |
| 8. | 24100U81F2 | [1] | SEAT ASSY | SEAT ASSY |
| 9. | ZN31C16015 | [5] | NUT | KOBM16x2.0mm |
| 10. | ZS11C10020 | [4] | CAPSCREW M10x1.50x20mm | CAPSCREW M10x1.50x20mm |
| 11. | ZS11C16110 | [5] | CAPSCREW M16x2.0x110mm | CAPSCREW M16x2.0x110mm |
| 12. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 16. | 24100J2049F1 | [1] | INSULATOR ASSY | |
| 17. | 2427R213 | [1] | MAT, FLOOR | MAT, FLOOR |
| 18. | 2427R214 | [1] | MAT, FLOOR | MAT, FLOOR |
| 19. | 2427Z312 | [1] | MAT, FLOOR | MAT, FLOOR |
| 20. | 2427Z313 | [1] | MAT, FLOOR | MAT, FLOOR |
| 21. | 24100X616F2 | [1] | CAB ASSY | |
