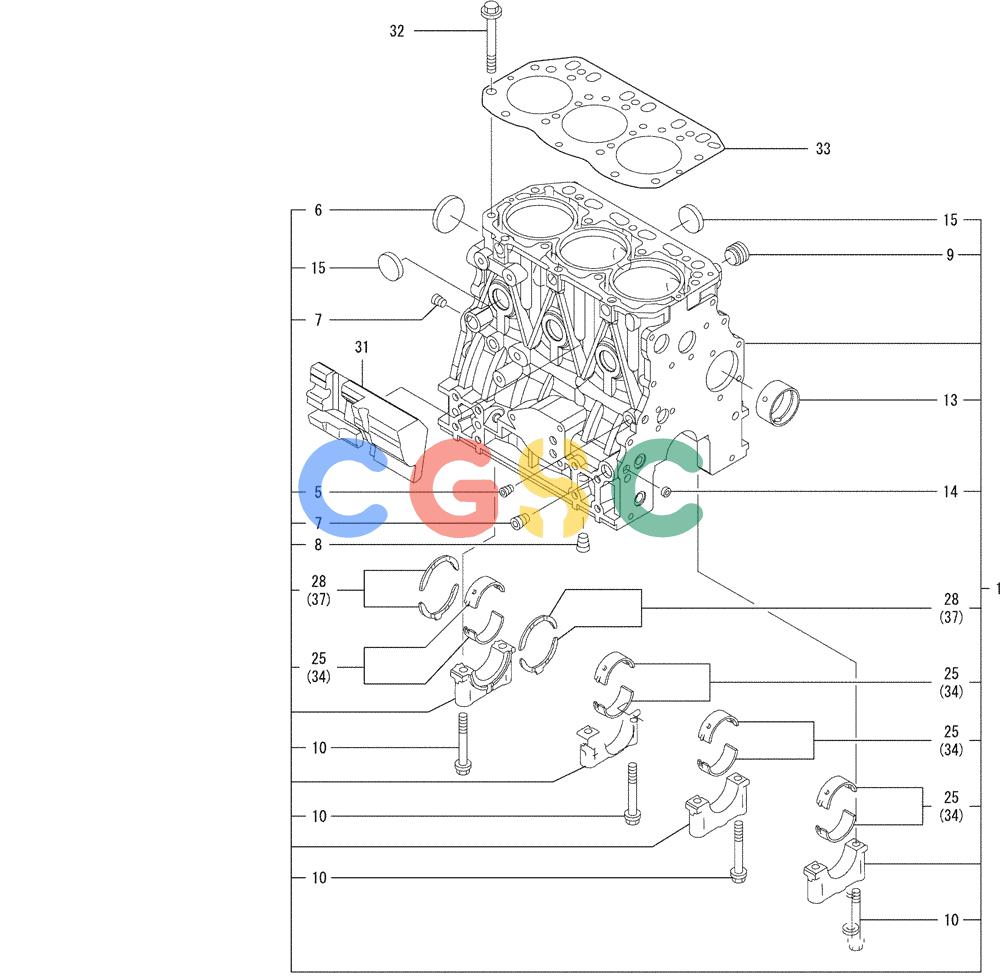

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-001) - CYLINDER BLOCK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV72900501560 | [1] | CYLINDER,3 Cylinders | KOBBLOCK ASSY, CYLINDER |
| 5. | VV12406001050 | [1] | PLUG,1/8" | KOBPLUG PT1/8 |
| 6. | VV12900101250 | [1] | PLUG | KOBPLUG 50 |
| 7. | VV12416001910 | [2] | PLUG,1/4" | KOBPLUG PT 1/4 |
| 9. | VV17105101921 | [1] | PLUG | KOBPLUG |
| 10. | VV12915002020 | [8] | BOLT | KOBBOLT, METAL CAP |
| 13. | VV12979502411 | [1] | BEARING | KOBBUSH, CAMSHAFT |
| 14. | VV27241120000 | [2] | PLUG | KOBPLUG 12 |
| 15. | VV27241300000 | [6] | PLUG | KOBPLUG, 30 Superseded by part number: VV27243300000 |
| 25. | VV12900102930 | [4] | CRANKSHAFT BEARING | KOBMAIN BEARING SET Superseded by part number: VV12900102931 |
| 28. | VV12915002930 | [2] | THRUST BEARING | KOBMETAL, THRUST Superseded by part number: VV12915002931 |
| 31. | VV12900401190 | [1] | SPACER | KOBSPACER |
| 32. | VV12915001200 | [14] | STUD | KOBSTUD, CYL. HEAD |
| 33. | VV12900101340 | [1] | GASKET | KOBGASKET, (NON-ASB) |
| 37. | VV12915002940 | [1] | THRUST BEARING | KOBMETAL, THRUST, O.S=0.25 |
