纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-003) - FLYWHEEL HOUSING & OIL SUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
813 次

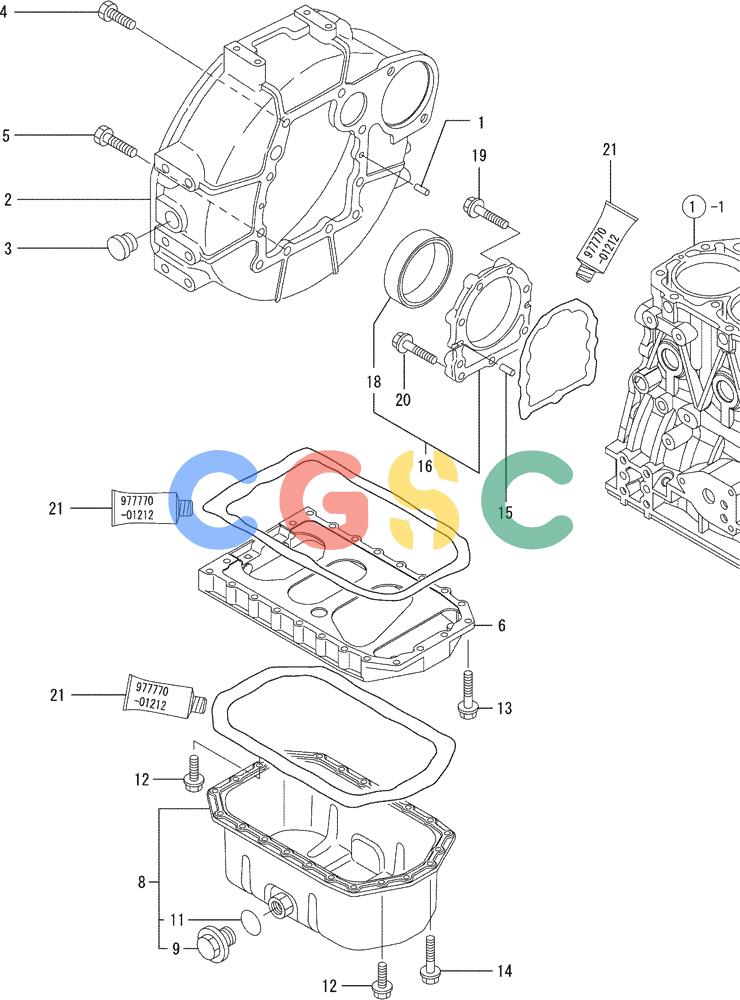

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV12910001580 | [2] | PIN,M8 x 16mm | KOBPARALLEL PIN, 8 X 16 |
| 2. | VV12961201600 | [1] | HOUSING | KOBHOUSING, FLYWHEEL |
| 3. | VV11962001750 | [1] | CAP | KOBCAP, FLYWHEEL COVER Superseded by part number: VV11957501750 |
| 4. | VV26206100252 | [6] | BOLT,M10 x 25mm | KOBBOLT M10 X 25 |
| 5. | VV26206100302 | [4] | BOLT,M10 x 30mm | KOBBOLT M10 X 30 |
| 6. | VV12910001730 | [1] | SPACER | KOBSPACER, OIL SUMP |
| 8. | VV12910001760 | [1] | SUMP | KOBSUMP ASSY, OIL |
| 9. | VV17130101640 | [1] | PLUG | KOBPLUG M22 |
| 11. | VV24341000250 | [1] | O-RING | KOBO-RING 1A S-25.0 |
| 12. | VV26106080162 | [4] | BOLT,M8 x 16mm | KOBBOLT, M8 X 16 PLATED |
| 13. | VV26106080252 | [2] | BOLT,M8 x 25mm | KOBBOLT, M8 X 25 PLATED |
| 14. | VV26106080452 | [20] | BOLT,M8 x 45mm | KOBBOLT, M8 X 45 PLATED |
| 16. | VV12910001640 | [1] | BOX | KOBCASE ASSY, OIL SEAL Superseded by part number: 73411884, VV72940201650 |
| 18. | VV12979501780 | [1] | OIL SEAL | KOBSEAL, OIL Superseded by part number: VV12912001780 |
| 19. | VV12948601670 | [6] | BOLT,M8 x 30mm | KOBBOLT, M8 X 30, COLLAR HD |
| 20. | VV26106080352 | [3] | BOLT,M8 x 35mm | KOBBOLT, M8 X 35 PLATED |
| 21. | VV97777001212 | [1] | GASKET | KOBGASKET, LIQUID Superseded by part number: VV9777701207F |
