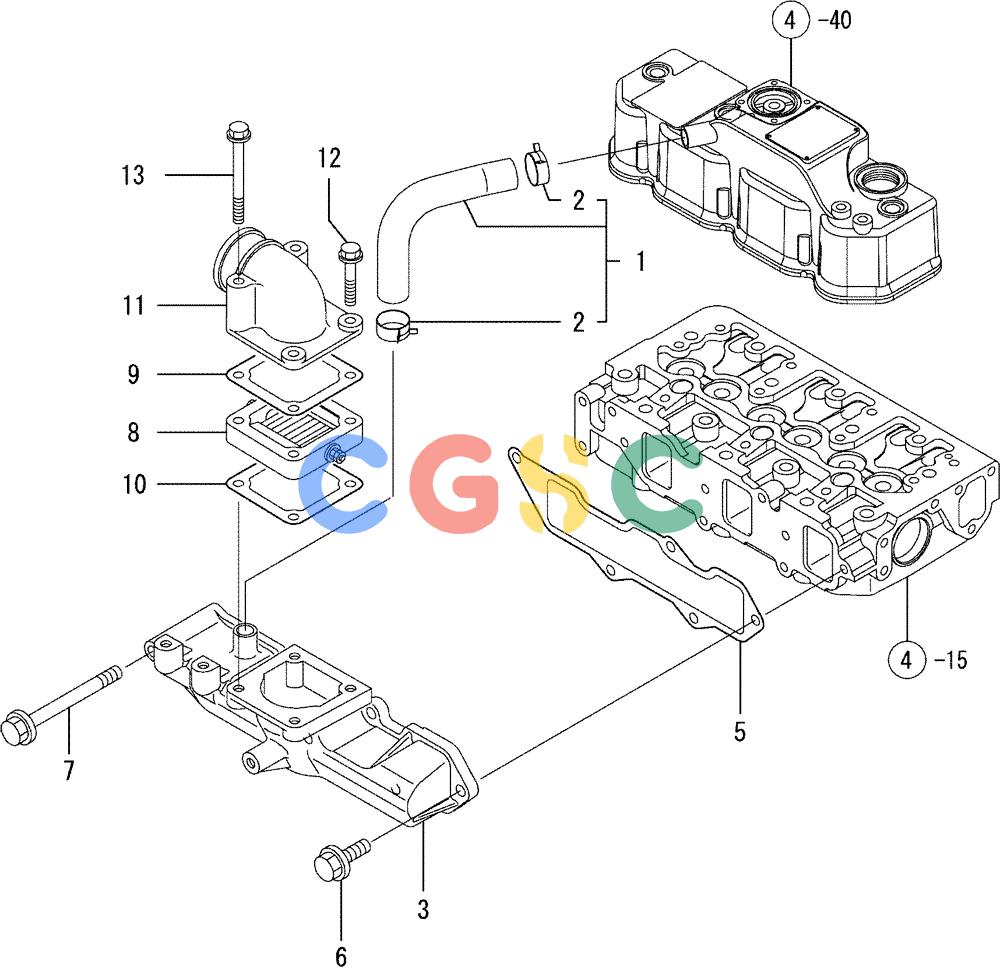

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-005) - SUCTION MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
579 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV12900503080 | [1] | PIPE | KOBPIPE, BREATHER |
| 2. | VV12941003990 | [2] | CLAMP | KOBCLAMP 24 |
| 3. | VV12900512100 | [1] | INLET MANIFOLD | KOBMANIFOLD, INTAKE |
| 5. | VV12900112110 | [1] | MANIFOLD GASKET | KOBGASKET, INT. MANIFOLD |
| 6. | VV26106080202 | [4] | BOLT,M8 x 20mm | KOBBOLT, M8 X 20 PLATED |
| 7. | VV26106080802 | [1] | BOLT,M8 x 80mm | KOBBOLT, M8 X 80 PLATED |
| 8. | VV12910077500 | [1] | HEATER | KOBHEATER, AIR |
| 9. | VV12910077510 | [1] | GASKET | KOBGASKET, AIR HEATER |
| 10. | VV12915077511 | [1] | PACKAGE,SERVICE | KOBGASKET, (NON-ASB.) |
| 11. | VV17134077520 | [1] | ELBOW | KOBBEND |
| 12. | VV26106080402 | [2] | BOLT,M8 x 40mm | KOBBOLT, M8 X 40 PLATED |
