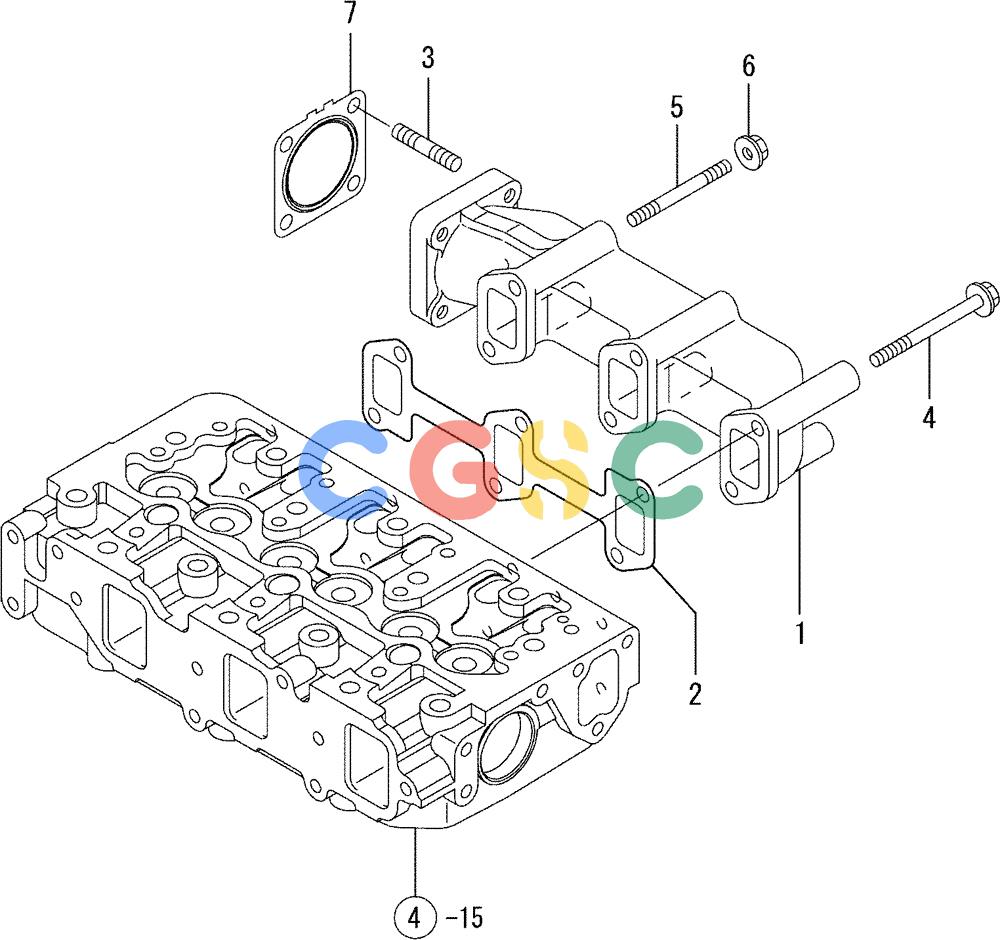

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-006) - EXHAUST MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
385 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV12900413129 | [1] | EXHAUST MANIFOLD | KOBMANIFOLD, EXHAUST |
| 2. | VV12915013110 | [1] | MANIFOLD GASKET | KOBGASKET, EXH. MANIFOLD |
| 3. | VV11913118320 | [4] | BOLT | KOBBOLT, M8 X 22 |
| 4. | VV12390013630 | [4] | BOLT,M8 x 80mm | KOBBOLT, M8 X 80 |
| 5. | VV12390013610 | [2] | STUD,M8 x 80mm | KOBSTUD BOLT, M8 X 80 |
| 6. | VV26306080002 | [2] | NUT,M8 | KOBNUT |
| 7. | VV12900413200 | [1] | GASKET | KOBGASKET, SILENCER Superseded by part number: VV11951513200 |
