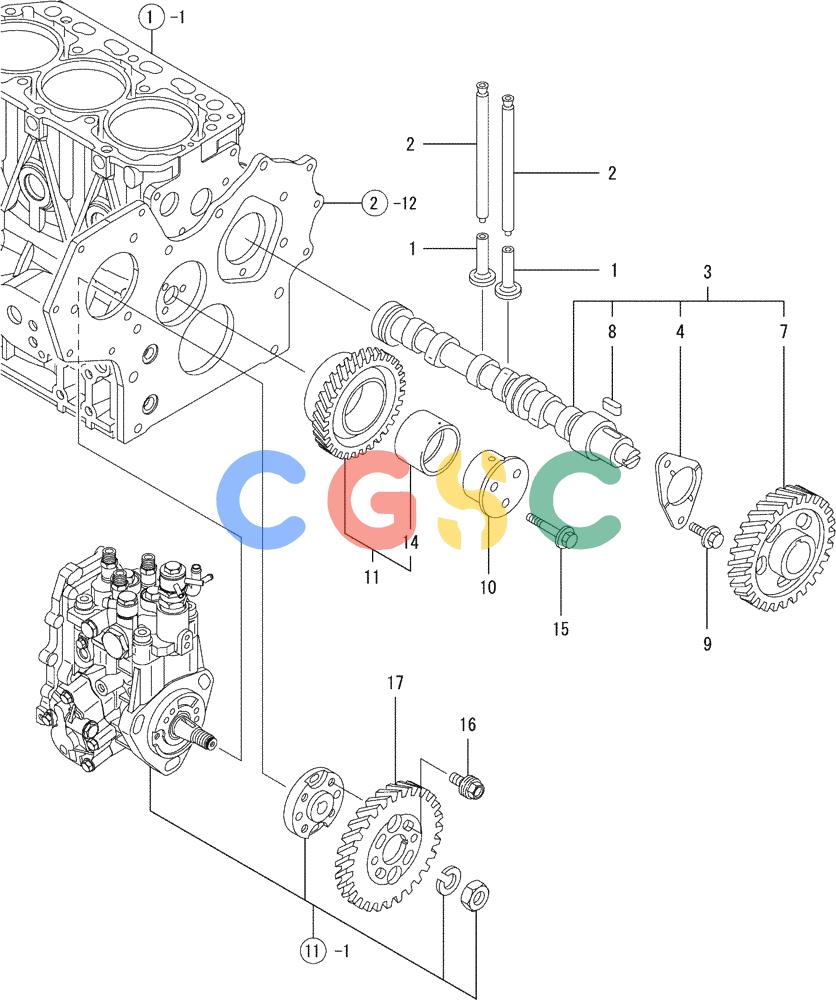

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-007) - CAMSHAFT & DRIVING GEAR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
409 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV12915014200 | [6] | TAPPET | KOBTAPPET |
| 2. | VV12915014400 | [6] | PUSH ROD | KOBROD, PUSH |
| 3. | VV12912914580 | [1] | CAMSHAFT | KOBCAMSHAFT ASSY |
| 4. | VV12915002450 | [1] | METAL LINER | KOBMETAL,THRUST, CAM |
| 7. | VV12915014101 | [1] | GEAR SET | KOBGEAR, CAMSHAFT |
| 8. | VV22512070140 | [1] | KEY,M7 x 14mm | KOBKEY 7 X 14 |
| 9. | VV26106080142 | [2] | BOLT,M8 x 14mm | KOBBOLT M8 X 14 PLATED |
| 10. | VV11980225051 | [1] | SHAFT | KOBSHAFT, IDLE GEAR |
| 11. | VV11980225100 | [1] | GEAR | KOBGEAR ASSY, IDLE |
| 14. | VV11980225070 | [1] | BUSHING | KOBBUSH, IDLE GEAR |
| 15. | VV26106080402 | [3] | BOLT,M8 x 40mm | KOBBOLT M8 X 40 PLATED |
| 16. | VV12915025301 | [4] | BOLT | KOBBOLT, FI-P |
| 17. | VV11980225901 | [1] | GEAR | KOBGEAR, PUMP |
