纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-009) - LUB. OIL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
390 次

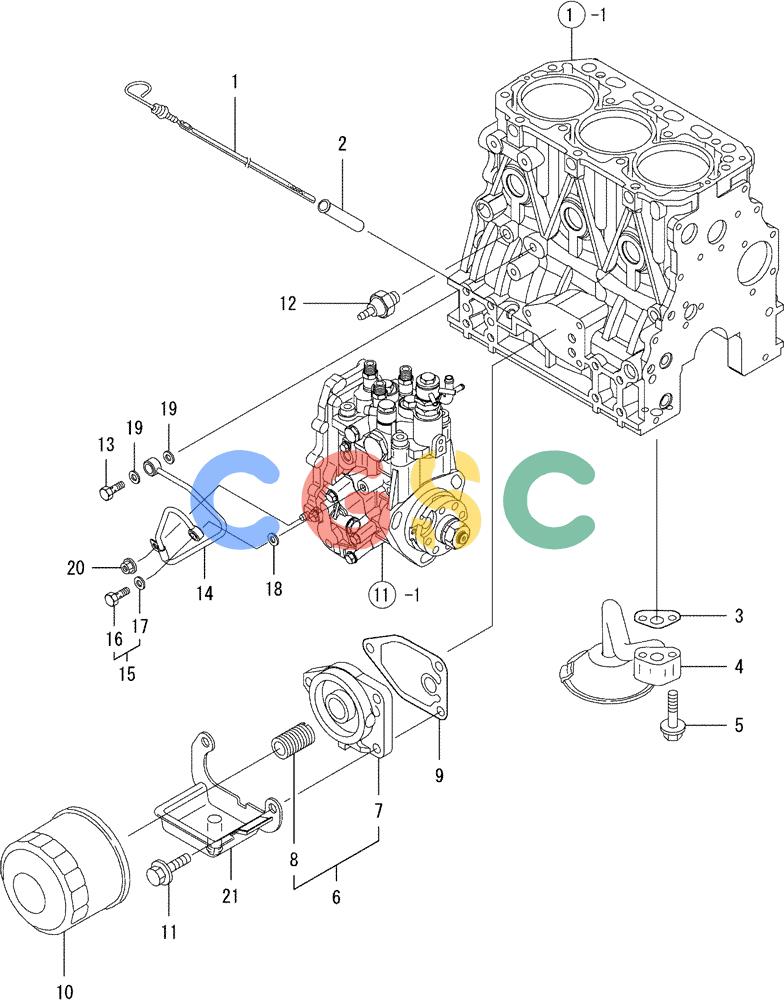

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV12900434801 | [1] | DIPSTICK | KOBDIPSTICK, LUB. OIL Superseded by part number: VV12900434802 |
| 2. | VV12152034810 | [1] | GUIDE | KOBGUIDE, DIPSTICK |
| 3. | VV12915035041 | [1] | GASKET | KOBGASKET, (NON-ASB.) Superseded by part number: VV12915035042 |
| 4. | VV12910035301 | [1] | PIPE ASSY. | KOBPIPE ASSY, OIL INLET |
| 5. | VV26106080352 | [2] | BOLT,M8 x 35mm | KOBBOLT, M8 X 35 PLATED |
| 6. | VV11980235100 | [1] | BRACKET | KOBBRACKET ASSY, FILTER |
| 7. | VV11980235110 | [1] | BRACKET | KOBBRACKET, FILTER |
| 8. | VV12910035140 | [1] | STUD | KOBSTUD |
| 9. | VV12915035111 | [1] | GASKET | KOBGASKET, (NON-ASB.) |
| 10. | VV12915035151 | [1] | ENGINE OIL FILTER | KOBFILTER, 80 X 80L Superseded by part number: 84160467 |
| 11. | VV26106080222 | [3] | BOLT,M8 x 22mm | KOBBOLT, M8 X 22 PLATED |
| 12. | VV11425039450 | [1] | PRESSURE SWITCH,DC6V, 12V, 24V, 49 ± 1 kPa (7.1 ± 1.4 psi), PT 1/8" | KOB(0.5 KG) L.O. |
| 13. | VV12416039140 | [1] | BOLT | KOBBOLT 10, PIPE JOINT |
| 14. | VV11980239450 | [1] | PIPE ASSY. | KOBPIPE ASSY, LUB. OIL |
| 15. | VV12900559830 | [1] | BOLT | KOBBOLT ASSY, JOINT |
| 16. | VV23857030000 | [1] | BOLT | KOBJOINT BOLT 3 |
| 17. | VV22190080002 | [1] | SEAL | KOBSEAL WASHER 8S |
| 19. | VV22190100002 | [2] | SEAL | KOBSEAL WASHER 10S |
| 20. | VV26366060002 | [1] | NUT,M6 | KOBNUT, M6 |
| 21. | VV12924035800 | [1] | PLATE | KOBPLATE, L.O. |
