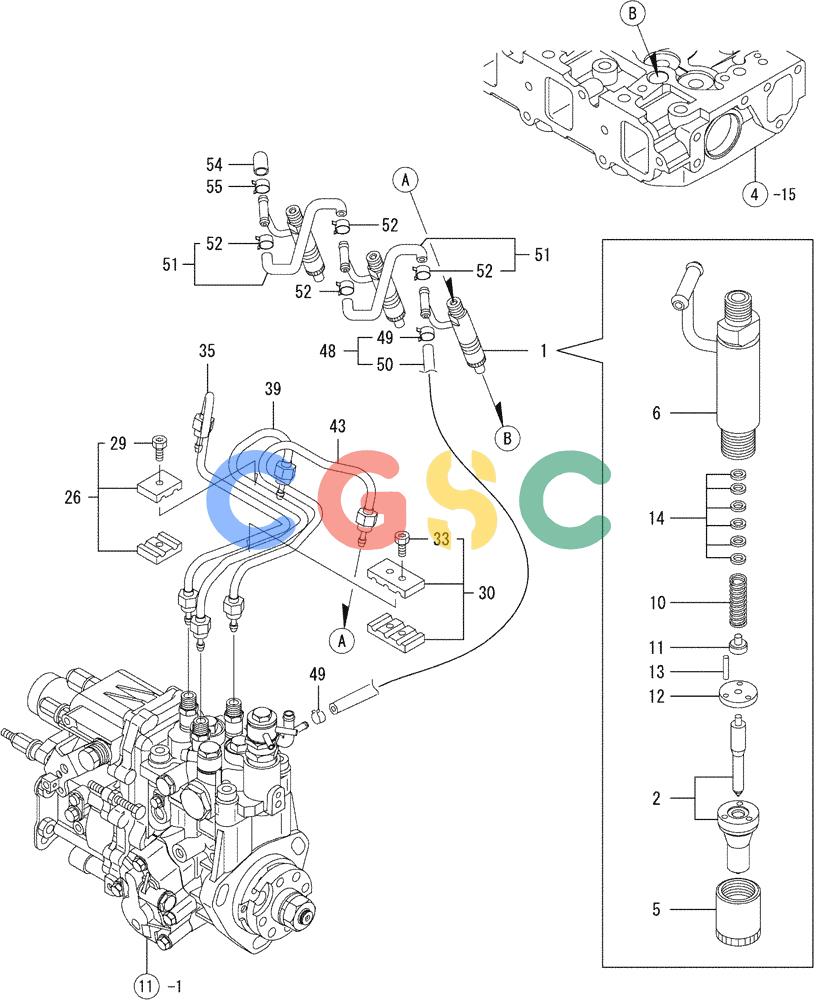

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-012) - FUEL INJECTION VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
535 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV72924553100 | [3] | FUEL SYSTEM INJECTOR | KOBFUEL INJECTOR (WBC) |
| 2. | VV12900453001 | [3] | NOZZLE | KOBNOZZLE CMP |
| 5. | VV11425053080 | [3] | NUT | KOBNUT, NOZZLE CASE |
| 6. | VV11980253100 | [3] | HOLDER | KOBHOLDER ASSY, NOZZLE |
| 10. | VV11425053120 | [3] | SPRING | KOBSPRING, NOZZLE |
| 11. | VV11425053130 | [3] | SEAT | KOBSEAT, NOZZLE SPRING |
| 12. | VV11425053140 | [3] | PLATE | KOBPLATE, STOP |
| 13. | VV11425053210 | [6] | PIN | KOBPIN |
| 14. | VV11425053400 | [3] | SHIM | KOBSHIM PACK Superseded by part number: VV11425053600 |
| 26. | VV11930559120 | [1] | RETAINER | KOBRETAINER |
| 29. | VV12915059131 | [1] | BOLT | KOBBOLT, M4 X 14, HEX. SCKT. |
| 30. | VV12915059120 | [1] | RETAINER | KOBRETAINER, INJ. PIPE |
| 35. | VV12900459810 | [1] | PIPE ASSY. | KOBPIPE ASSY, INJECTION |
| 39. | VV12900459820 | [1] | PIPE ASSY. | KOBPIPE ASSY, INJECTION |
| 43. | VV12900459830 | [1] | PIPE ASSY. | KOBPIPE ASSY, INJECTION |
| 48. | VV11980259550 | [1] | PIPE ASSY. | KOBPIPE ASSY, RETURN Superseded by part number: VV12926859551 |
| 49. | VV12472259050 | [2] | CLAMP | KOBCLAMP 9 |
| 50. | VV11980259560 | [1] | PIPE | KOBPIPE, FUEL RETURN |
| 51. | VV12948659551 | [2] | PIPE | KOBPIPE, FUEL RETURN Superseded by part number: VV12948659581 |
| 54. | VV11959359580 | [1] | CAP | KOBCAP Superseded by part number: VV11959359581 |
| 55. | VV12406077680 | [1] | CLAMP | KOBCLAMP 10 Superseded by part number: VV23080010000 |
