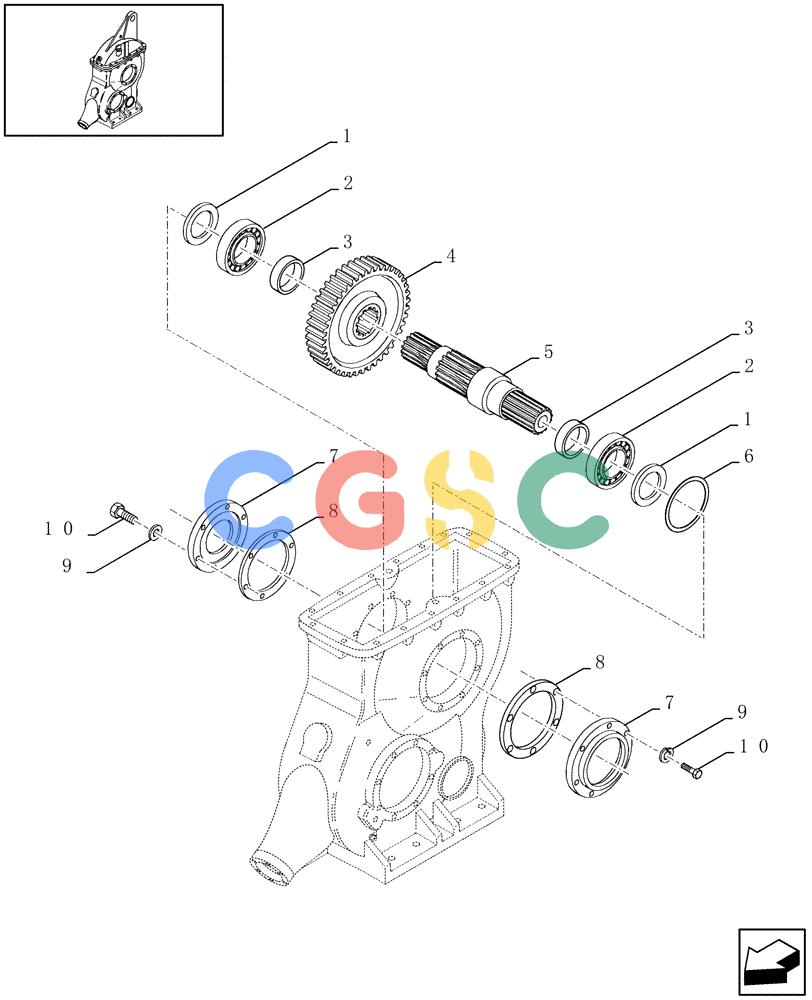

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (03.04[01]) - MAIN GEARBOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
743 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
920018147
|
[2] |
RING
|
ZED
|
| 2. |
24903750
|
[2] |
BALL BEARING,120mm ID x 180mm OD x 38mm W
|
ZED
|
| 3. |
84074457
|
[2] |
SPACER
|
ZED
|
| 4. |
84074448
|
[1] |
GEAR
|
ZED
|
| 5. |
84074449
|
[1] |
SHAFT
|
ZED
Superseded by part number: 87718405
|
| 6. |
84074470
|
[1] |
SHIM
|
ZED
|
| 7. |
84074458
|
[2] |
COVER
|
ZED
|
| 8. |
84074454
|
[2] |
GASKET,0.2mm Thk
|
ZED
|
| 9. |
12034771
|
[1] |
LOCK WASHER
|
ZED
Superseded by part number: 412123
|
| 10. |
11112621
|
[1] |
SCREW,Hex, M12 x 35mm, Cl 8.8, Full Thd
|
ZED
Superseded by part number:
|
