神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (10-003) - HYDR LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
389 次

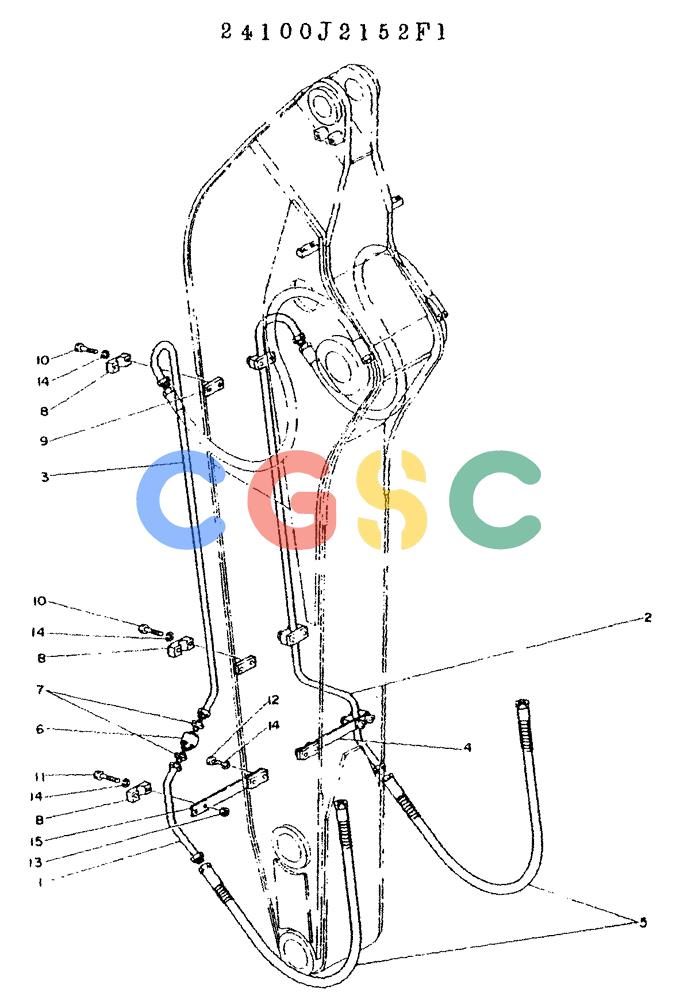

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J2152F1 | [1] | HYDR LINES, CONSISTS OF REF 1 TO 15 | |
| 1. | 2418T5501 | [1] | TUBE | |
| 2. | 2418P4404 | [1] | TUBE | |
| 3. | 2418T55D2 | [1] | TUBE | |
| 4. | 2416T5393D1 | [1] | BRACKET | |
| 5. | 2444R488D7 | [2] | HOSE | |
| 6. | 2436R287 | [1] | HYDRAULIC VALVE | KOB |
| 7. | ZF23E35020 | [2] | HYD CONNECTOR | KOB |
| 8. | R16P0035D3 | [6] | CLAMP | KOB |
| 9. | 2416T4878D4 | [6] | BLOCK, TRAPPED | |
| 10. | ZS11C16080 | [8] | CAPSCREW | |
| 11. | ZS11C16090 | [4] | CAPSCREW | |
| 12. | ZS11C16030 | [4] | CAPSCREW | |
| 13. | ZN11C16013 | [4] | NUT | KOBM16x2.0mm |
| 14. | ZW22X16000 | [16] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 15. | 2416T5393D2 | [1] | BRACKET | |
