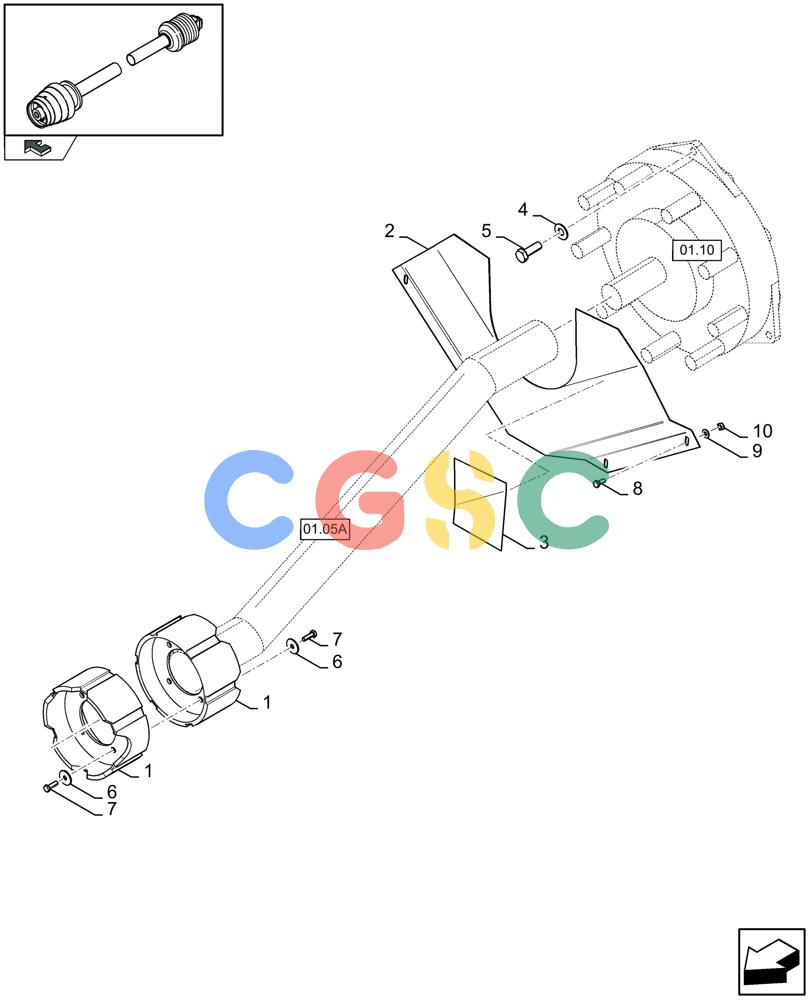

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (01.05[01]) - POWER TAKE-OFF, REAR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
936 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84818972
|
[2] |
ADAPTER
|
ZED
|
| 2. |
84037127
|
[1] |
SUPPORT
|
ZED
|
| 3. |
84053500
|
[1] |
DECAL
|
ZED
|
| 4. |
80140046
|
[3] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 5. |
80300389
|
[3] |
BOLT,M12 x 35mm
|
ZED
M12 x 35 Superseded by part number: 628-12035
|
| 6. |
80362776
|
[8] |
WASHER
|
ZED
Superseded by part number: 362776
|
| 7. |
80120100
|
[8] |
BOLT,M6 x 1 x 20mm
|
ZED
Superseded by part number: 120100
|
| 8. |
86508568
|
[4] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 9. |
80322357
|
[4] |
LOCK WASHER,Belleville, M6
|
ZED
Superseded by part number: 322357
|
| 10. |
15896221
|
[4] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
