纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-035) - CYLINDER ASSY, TILT (DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
396 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

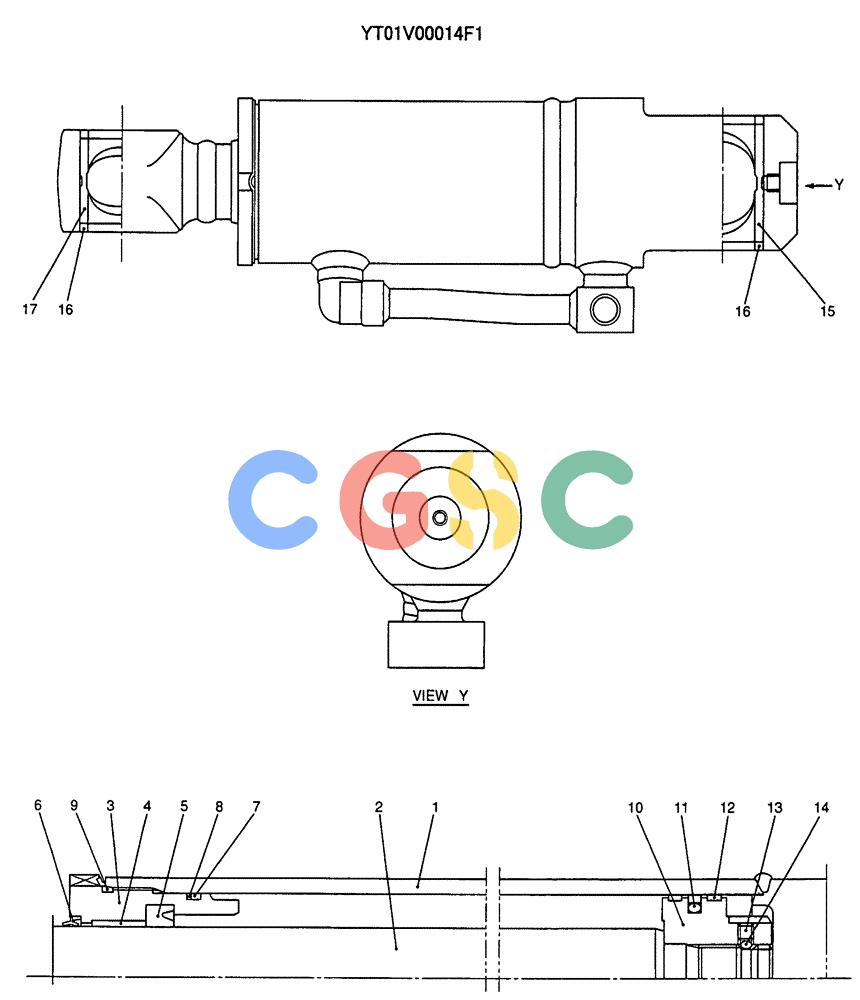

| . . | YT01V00014F1 | [1] | CYLINDER ASSY. | KOBTILT |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 3. | 2438U1169S3 | [1] | CYLINDER HEAD | KOB |
| 4. | PW01V00010S004 | [1] | BUSHING | KOB Superseded by part number: 2405U104D045025 |
| 5. | 2438U635S3 | [1] | RING | KOBU |
| 6. | PH01V00006S006 | [1] | RING | KOBRING |
| 7. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB |
| 8. | PW01V00014S008 | [1] | BACK-UP RING | KOB |
| 9. | ZD11G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 10. | 2438U1118S12 | [1] | PISTON | KOB |
| 11. | 2438U852S15 | [1] | RING | KOBSEAL |
| 12. | 2438U1118S14 | [2] | SLIDE | KOBRING |
| 13. | 2438U1057S16 | [1] | SET SCREW | KOBSETSCREW |
| 14. | 2436U946S11 | [1] | BALL | KOB |
| 15. | 2438U1379S21 | [1] | BUSHING | KOB |
| 16. | PX01V00012S020 | [4] | SEAL | KOBRING |
| 17. | 2438U887S10 | [1] | BUSHING | KOB |
| . . | YT01V00014R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF. 5 (1), 6 (1), 7 (1), 8 (1), 9 (1) |
| . . | 2438U1118R200 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF. 11 (1), 12 (2) |
| . . | PY01V00019R100 | [1] | REPAIR KIT | KOBALL (ROD + PISTON) CONSISTS OF REF. 5 (1), 6 (1), 7 (1), 8 (1), 9 (1),11 (1), 12 (2) Superseded by part number: PY01V00019R100P, 77265456 |
| . . | YT01V00014R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 1 (1), 15 (1) |
| . . | YT01V00014R500 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 2 (1), 17 (1) |
