纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-036) - CYLINDER ASSY, ANGLE (DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
267 次

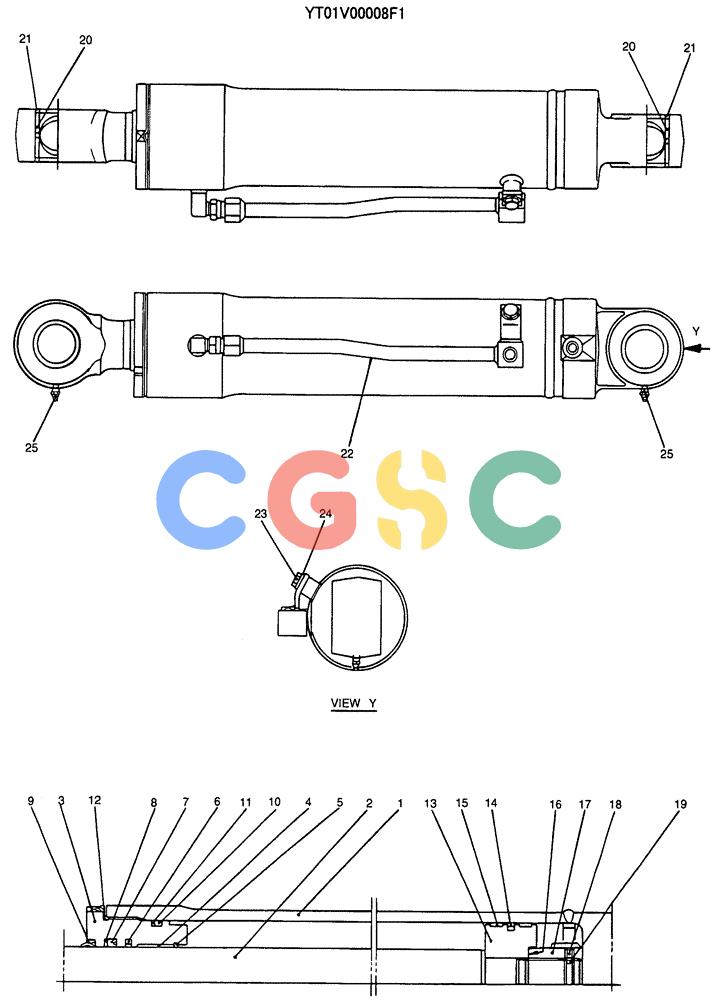

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT01V00008F1 | [1] | CYLINDER ASSY. | KOBANGLE |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 3. | YT01V00008S003 | [1] | CYLINDER HEAD | KOB |
| 4. | LE01V00002S004 | [1] | BUSHING | KOB |
| 5. | 2438U717S6 | [1] | RING | KOBRETAINING |
| 6. | 2438U717S17 | [1] | RING | KOBBUFFER |
| 7. | 2438U717S13 | [1] | SNAP RING | KOBU |
| 8. | 2438U717S14 | [1] | RING | KOBBACK UP |
| 9. | LE01V00019S009 | [1] | RING | KOBWIPER Superseded by part number: 2438U717S12 |
| 10. | ZD12G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOB |
| 11. | PZ01V00003S008 | [1] | RING | KOBBACK UP |
| 12. | ZD11G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB |
| 13. | YT01V00008S013 | [1] | PISTON | KOB |
| 14. | 2438U676S21 | [1] | RING | KOBSEAL |
| 15. | 2438U676S23 | [2] | RING | KOBSLIDE |
| 16. | YR01V00001S019 | [1] | SHIM | KOB |
| 17. | YT01V00008S017 | [1] | NUT | KOB |
| 18. | 2438U986S18 | [1] | SET SCREW | KOBSET |
| 19. | 2436U281S37 | [1] | BALL | KOB |
| 20. | 2438U1118S17 | [2] | BUSHING | KOB |
| 21. | 2438U717S21 | [4] | SEAL | KOBWIPER |
| 22. | YT01V00008S022 | [1] | PIPE | KOBASSY |
| 23. | ZS18C10016 | [1] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm |
| 24. | PR01V00002S024 | [1] | WASHER | KOB Superseded by part number: ZW16P10000 |
| 25. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| . . | YT01V00008R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1), 12 (1) |
| . . | YR01V00013R200 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF. 14 (1), 15 (2) |
| . . | YT01V00008R300 | [1] | REPAIR KIT | KOBALL (ROD + PISTON) CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1), 12 (1), 14 (1), 15 (2) |
| . . | YT01V00008R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 1 (1), 20 (1) |
| . . | YT01V00008R500 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 2 (1), 20 (1) |
