纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-038) - CYLINDER ASSY, BOOM (OFFSET BOOM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
975 次

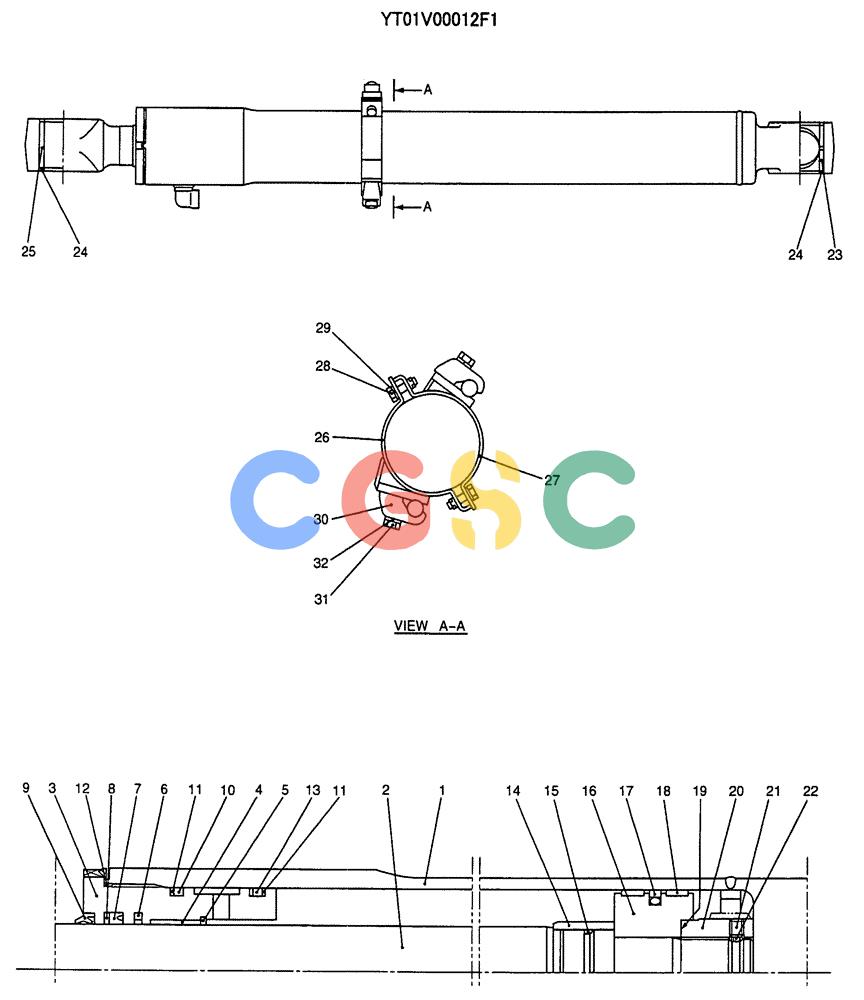

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT01V00012F1 | [1] | CYLINDER ASSY. | KOBBOOM |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 3. | YR01V00001S003 | [1] | CYLINDER HEAD | KOB Superseded by part number: YT01V00012F1 |
| 4. | YR01V00001S004 | [1] | BUSHING | KOB Superseded by part number: 2438U1094S4 |
| 5. | 2438U721S7 | [1] | SNAP RING | KOBRETAINING |
| 6. | 2438U721S20 | [1] | RING | KOBBUFFER |
| 7. | 2438U721S16 | [1] | RING | KOBU |
| 8. | 2438U721S17 | [1] | BACK-UP RING | KOB |
| 9. | YT01V00001S009 | [1] | RING | KOBWIPER |
| 10. | ZD12G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB |
| 11. | YR01V00001S011 | [3] | RING | KOBBACK UP |
| 12. | ZD11G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB |
| 13. | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB |
| 14. | YR01V00001S014 | [1] | BEARING | KOBCUSHION |
| 15. | YT01V00001S015 | [1] | SEAL | KOBCUSHION |
| 16. | YT01V00012S016 | [1] | PISTON | KOB |
| 17. | LE01V00006S014 | [1] | RING | KOBSEAL |
| 18. | YR01V00001S018 | [2] | RING | KOBSLIDE |
| 19. | 2438U1094S21 | [1] | SHIM | KOB |
| 20. | YT01V00001S020 | [1] | NUT | KOB |
| 21. | 2438U999S21 | [1] | SET SCREW | KOBSET |
| 22. | 2436U330S16 | [1] | BALL | KOB |
| 23. | YT01V01008P1 | [1] | BUSHING | KOB |
| 24. | 2438U1946S25 | [4] | RING | KOBWIPER |
| 25. | LF01V00003S023 | [2] | BUSHING | KOB Superseded by part number: YT01V01001P2 |
| 26. | YR01V00012S023 | [1] | BAND | KOBASSY |
| 27. | YR01V00012S024 | [1] | BAND | KOBASSY |
| 28. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 29. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 30. | YR01V00001S032 | [2] | CLAMP | KOB |
| 31. | ZS18C12045 | [2] | SCREW,Hex, M12 x 45mm | KOBCAP |
| 32. | ZW26X12000 | [2] | WASHER | KOB |
| . . | YT01V00012R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (3), 12 (1) |
| . . | YR01V00001R200 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF. 17 (1), 18 (2) |
| . . | YT01V00012R200 | [1] | REPAIR KIT | KOBALL (ROD + PISTON) CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (3), 12 (1), 17 (1), 18 (2) |
| . . | YT01V00012R300 | [1] | KIT | KOBCONSISTS OF REF. 1 (1), 23 (1) |
| . . | YT01V00012R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 2 (1), 25 (2) |
