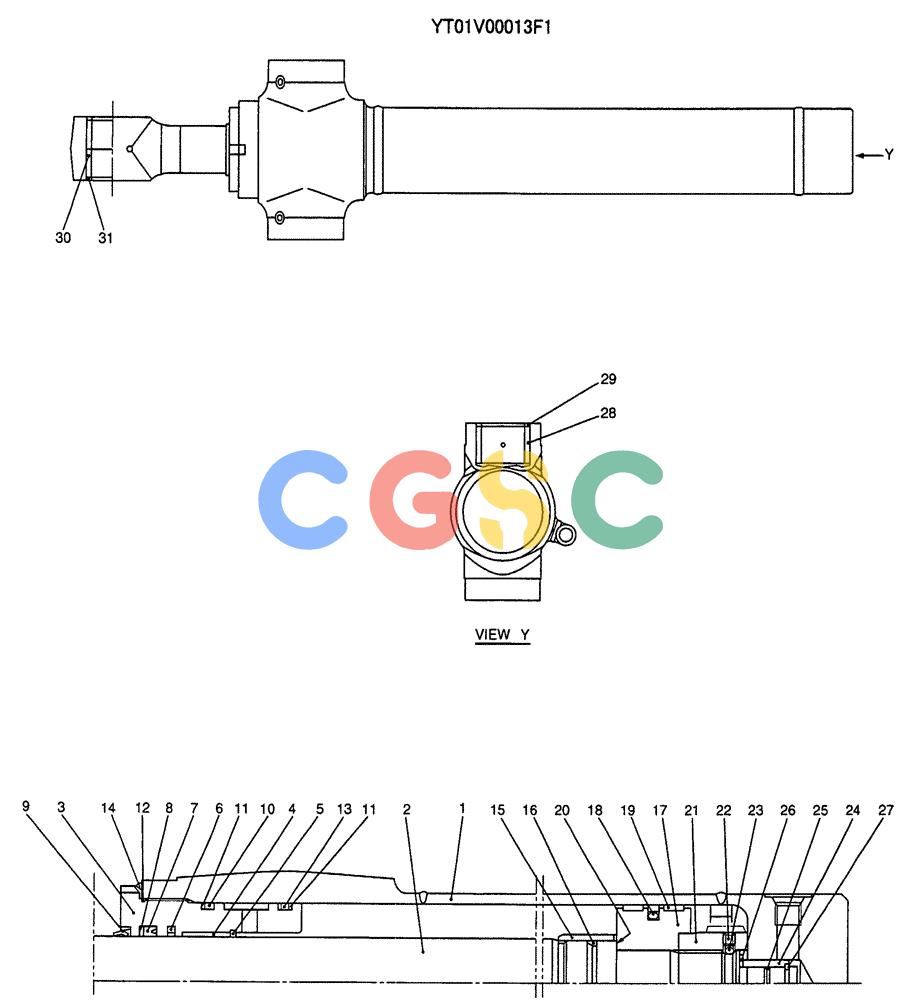

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-039) - CYLINDER ASSY, ARM (OFFSET BOOM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
198 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT01V00013F1 | [1] | CYLINDER ASSY. | KOBARM |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 3. | YT01V00013S003 | [1] | CYLINDER HEAD | KOB |
| 4. | YR01V00013S004 | [1] | BUSHING | KOB |
| 5. | 2438U721S7 | [1] | SNAP RING | KOBRETAINING |
| 6. | 2438U721S20 | [1] | RING | KOBBUFFER |
| 7. | 2438U721S16 | [1] | RING | KOBU |
| 8. | 2438U721S17 | [1] | BACK-UP RING | KOBBACK UP |
| 9. | YT01V00001S009 | [1] | RING | KOBWIPER |
| 10. | ZD12G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOB |
| 11. | PZ01V00003S008 | [3] | RING | KOBBACK UP |
| 12. | ZD11G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB |
| 13. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOB |
| 14. | YR01V00013S013 | [1] | WASHER | KOBLOCK |
| 15. | YR01V00001S014 | [1] | BEARING | KOBCUSHION |
| 16. | YT01V00001S015 | [1] | SEAL | KOBCUSHION |
| 17. | YT01V00008S013 | [1] | PISTON | KOB |
| 18. | 2438U676S21 | [1] | RING | KOBSEAL |
| 19. | 2438U676S23 | [2] | RING | KOBSLIDE |
| 20. | YR01V00001S019 | [1] | SHIM | KOB |
| 21. | YT01V00008S017 | [1] | NUT | KOB |
| 22. | 2438U986S18 | [1] | SET SCREW | KOBSET |
| 23. | 2436U281S37 | [1] | BALL | KOB |
| 24. | YR01V00006S024 | [1] | BEARING | KOBCUSHION |
| 25. | LF01V00002S024 | [1] | SEAL | KOBCUSHION |
| 26. | YR01V00006S026 | [1] | RING | KOBRETAINING |
| 27. | YR01V00006S027 | [2] | STOP | KOB |
| 28. | YT01V00013S028 | [2] | BUSHING | KOB |
| 29. | LP01V00007S026 | [2] | RING | KOBWIPER |
| 30. | YT01V00013S030 | [2] | BUSHING | KOB |
| 31. | YR01V00001S025 | [2] | RING | KOBWIPER |
| . . | YT01V00013R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (3), 12 (1), 13 (1), 14 (1) |
| . . | YR01V00013R200 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF. 18 (1), 19 (2) |
| . . | YT01V00013R200 | [1] | REPAIR KIT | KOBALL (ROD + PISTON) CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (3), 12 (1), 13 (1), 14 (1), 18 (1), 19 (2) |
| . . | YT01V00013R300 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 1 (1), 28 (2) |
| . . | YT01V00013R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 2 (1), 30 (2) |
