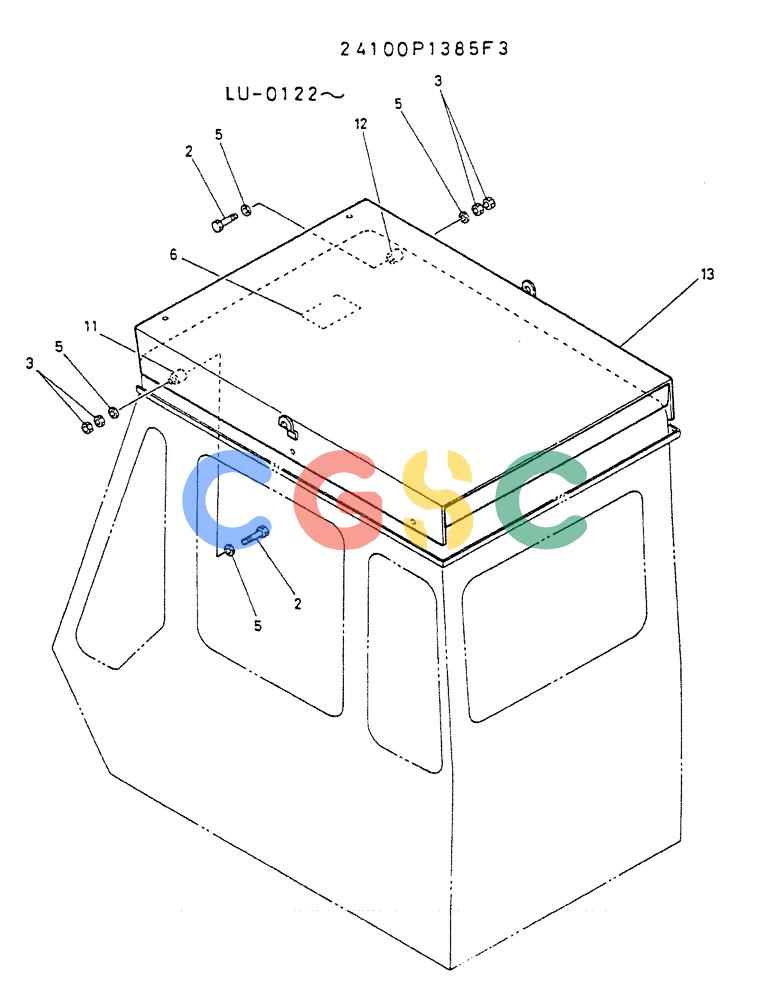

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | 24100P1385F3 | [1] | GUARD ASSY, HEAD | |
| 2. | ZS18C10070 | [6] | SCREW,Hex, M10 x 70mm | KOBM10x1.50x70mm |
| 3. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm |
| 5. | ZW16H10000 | [12] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 6. | 7711011 | [1] | STICKER | |
| 11. | 2418T13686D1 | [1] | PIPE | |
| 12. | 2418T13686D2 | [1] | PI PE | |
| 13. | 2427N2274 | [1] | GUARD, HEAD |
