纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (05-010) - CALL ASSY, ONE-WAY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
520 次

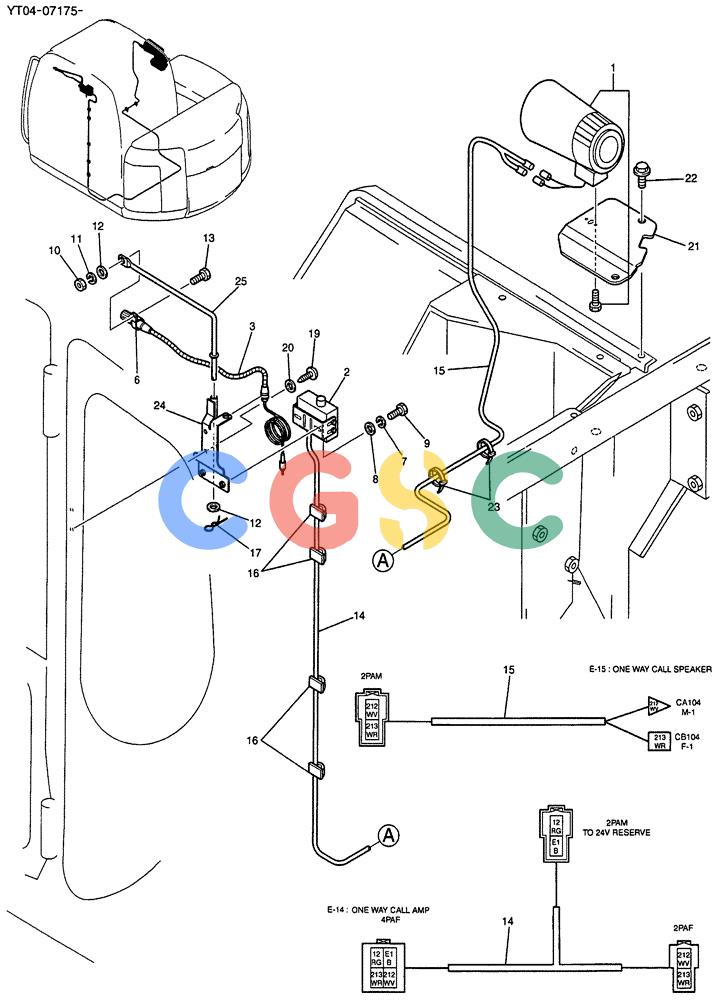

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT54E00001F2 | [1] | RADIO | KOBCALL ASSY, ONE-WAY |
| 1. | LC54S00004P1 | [1] | SPACER | KOBSPEAKER |
| 2. | 2447R145 | [1] | AMPLIFIER | KOB |
| 3. | 2479R2097 | [1] | SPEAKER | KOBMICROPHONE |
| 6. | 2432R225D7 | [1] | CLIP | KOB Superseded by part number: ZC46X16011 |
| 7. | ZW26X05000 | [2] | LOCK WASHER | KOBLOCK |
| 8. | ZW16P05000 | [2] | WASHER | KOB |
| 9. | ZS18C05012 | [2] | SCREW,Hex, M5 x 12mm | KOBCAP |
| 10. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 11. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 12. | ZW16P10000 | [2] | WASHER | KOBID 05 x OD 10 x Th 2.0mm |
| 13. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBCap |
| 14. | YY54E01002P1 | [1] | WIRE HARNESS | KOB |
| 15. | YN54E01006P1 | [1] | WIRE HARNESS | KOB |
| 16. | 2432Z478D4 | [3] | CLIP | KOB |
| 17. | 2419R9D2 | [1] | COTTER PIN | KOBSNAP |
| 19. | ZS32T60016 | [2] | CAPSCREW | KOBSCREW TAPPING |
| 20. | ZW16P06000 | [2] | WASHER | KOB |
| 21. | YT54E01001P1 | [1] | BRACKET | KOB |
| 22. | ZM32C12030 | [2] | BOLT | KOBSEMS |
| 23. | PY01P01043D4 | [2] | CABLE TIE,4.80mm W x 251mm L | KOB |
| 24. | YF54E01003P1 | [1] | BRACKET | |
| 25. | YF54E01004P1 | [1] | STAY | KOBSTAY |
