纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (04-002) - ELEMENT KIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
314 次

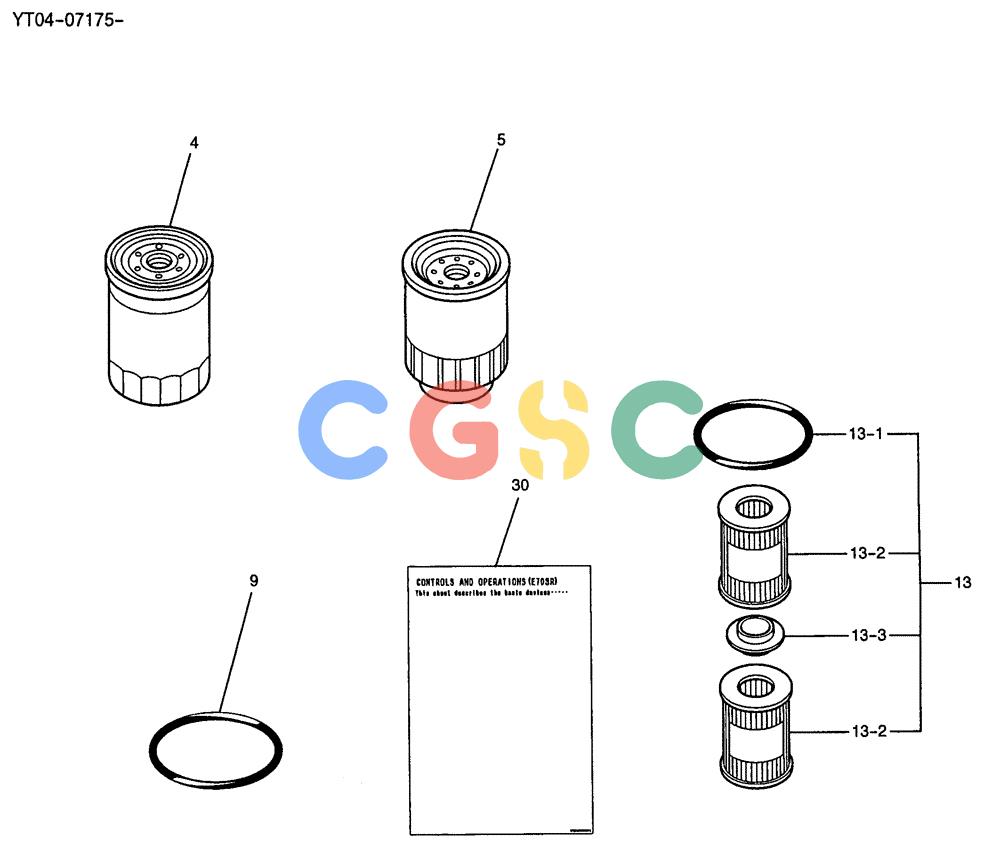

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30T00005F7 | [1] | ELEMENT KIT | |
| 4. | YR02P00001S007 | [1] | ELEMENT | KOBFILTER, OIL Superseded by part number: 84160287 |
| 5. | 2446R346D1 | [1] | FILTER | KOBFUEL Superseded by part number: EN02P00001-2 |
| 9. | 2445Z912 | [4] | O-RING | KOB |
| 13. | YR52V01001R200 | [1] | ELEMENT | KOBELEMENT KIT Superseded by part number: YR52V01001S002, YR52V01003P2 |
| 13-1. | ZD11G15500 | [1] | O-RING,154.30mm ID x 165.70mm OD x 5.70mm | KOBID 154.3 ± 1.26 x OD 170mm |
| 13-2. | YR52V01003P1 | [2] | FILTER | KOBELEMENT Superseded by part number: YR52V01003P2 |
| 13-3. | YR52V01001S002 | [1] | RUBBER JOINT | KOB |
| 30. | YT91Z0008P1 | [1] | MANUAL, OPERATORS, Start Serial: YT04-10257 | |
