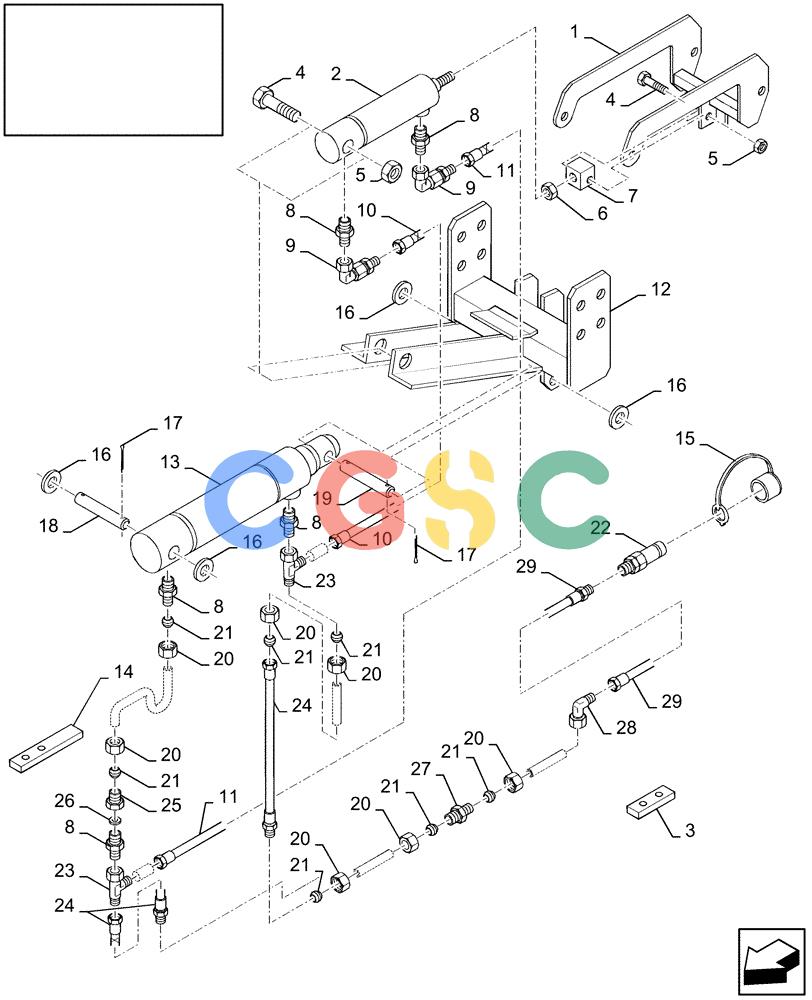

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (18.84067163[01]) - DIA : BALE EJECT KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
453 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84067163
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
84817054
|
[1] |
SUPPORT
|
ZED
|
| 2. |
84807314
|
[1] |
HYDRAULIC CYLINDER,Double Acting, 18mm Rod, 140mm Stroke
|
ZED
|
| 3. |
84100035
|
[1] |
MOUNTING PLATE
|
ZED
|
| 4. |
9706717
|
[2] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8
|
NH
|
| 5. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 6. |
331192
|
[1] |
NUT,M16 x 1.5, Cl 8
|
ZED
Superseded by part number: 10790521
|
| 7. |
9622175
|
[1] |
BLOCK
|
ZED
|
| 8. |
395019
|
[5] |
HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB
|
PA
|
| 9. |
418284
|
[2] |
90 ELBOW
|
ZED
|
| 10. |
87369746
|
[1] |
HOSE,7.90 mm ID x 905.00 mm, SAE J517, SAE 100R1
|
ZED
|
| 11. |
87369745
|
[1] |
HOSE
|
ZED
|
| 12. |
84078455
|
[1] |
SUPPORT
|
ZED
|
| 13. |
84807316
|
[1] |
HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 400mm Stroke
|
ZED
|
| 14. |
84007699
|
[2] |
COVER PLATE
|
ZED
|
| 15. |
84819669
|
[2] |
DUST CAP
|
ZED
|
| 16. |
338206
|
[4] |
WASHER,26mm ID x 35mm OD x 2mm Thk
|
ZED
|
| 17. |
130011
|
[4] |
COTTER PIN,M5 x 40
|
ZED
|
| 18. |
84004813
|
[1] |
PIN
|
ZED
|
| 19. |
84004833
|
[1] |
PIN
|
ZED
|
| 20. |
86548975
|
[8] |
PIPE UNION NUT,M16 x 1.5
|
ZED
|
| 21. |
150014
|
[8] |
FERRULE
|
ZED
|
| 22. |
84819661
|
[2] |
QUICK MALE COUPLING
|
ZED
|
| 23. |
734031
|
[2] |
HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female
|
ZED
|
| 24. |
84078809
|
[2] |
FLEXIBLE HOSE
|
ZED
|
| 25. |
445302
|
[1] |
HYD CONNECTOR
|
ZED
|
| 26. |
396098
|
[1] |
RESTRICTOR VALVE
|
ZED
|
| 27. |
150017
|
[7] |
HYD CONNECTOR,M16 x 1.5 x M16 x 1.5
|
ZED
Superseded by part number: 47499003
|
| 28. |
84007700
|
[2] |
ELBOW
|
ZED
|
| 29. |
84031413
|
[2] |
HYDRAULIC HOSE,7.9mm ID x 2500mm L, SAE 100R1
|
ZED
|
