凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (18.84067163[02]) - DIA : BALE EJECT KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
719 次

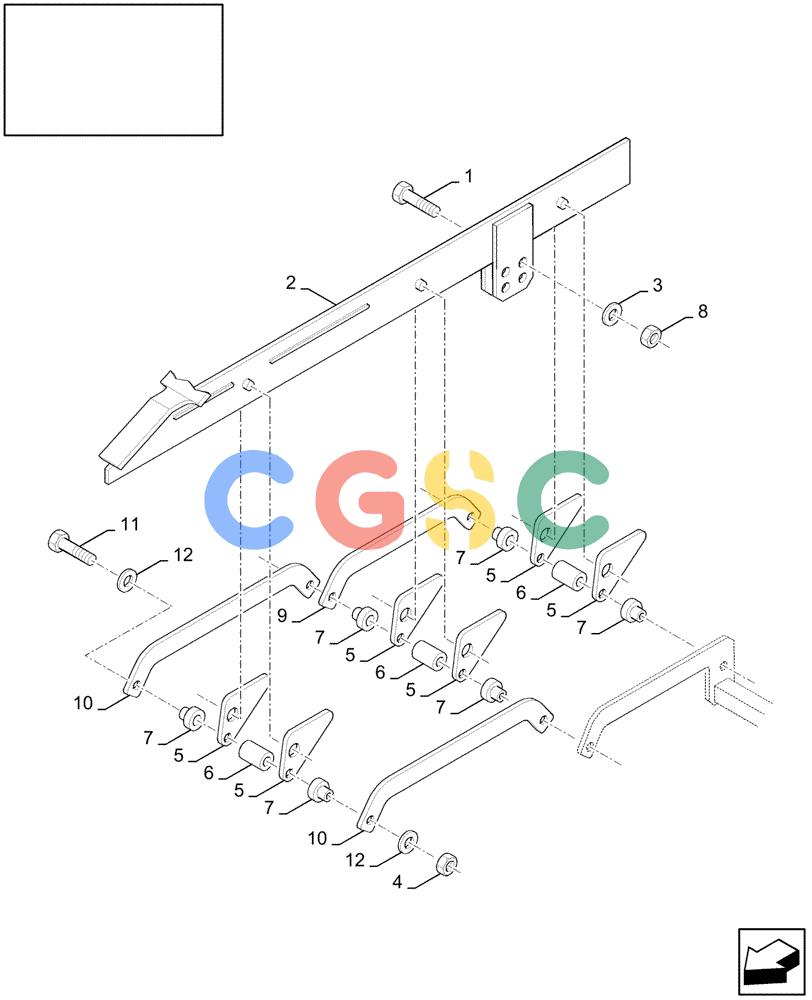

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84067163
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
9706702
|
[8] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
NH
|
| 2. |
84062262
|
[2] |
BAR
|
ZED
|
| 3. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 4. |
100037
|
[6] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 5. |
84004660
|
[12] |
TOOTH
|
ZED
|
| 6. |
84004713
|
[6] |
BUSHING,10.5mm ID x 25mm OD x 18mm L
|
ZED
|
| 7. |
84004672
|
[12] |
BUSHING,10.5mm ID x 20mm OD x 24mm L
|
ZED
|
| 8. |
9706685
|
[8] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 9. |
84441918
|
[2] |
LINK BLOCK
|
ZED
|
| 10. |
84004674
|
[4] |
LINK BLOCK
|
ZED
|
| 11. |
120075
|
[6] |
BOLT,M10 x 1.5 x 106.58mm, Cl 8.8
|
NH
|
| 12. |
378244
|
[12] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
