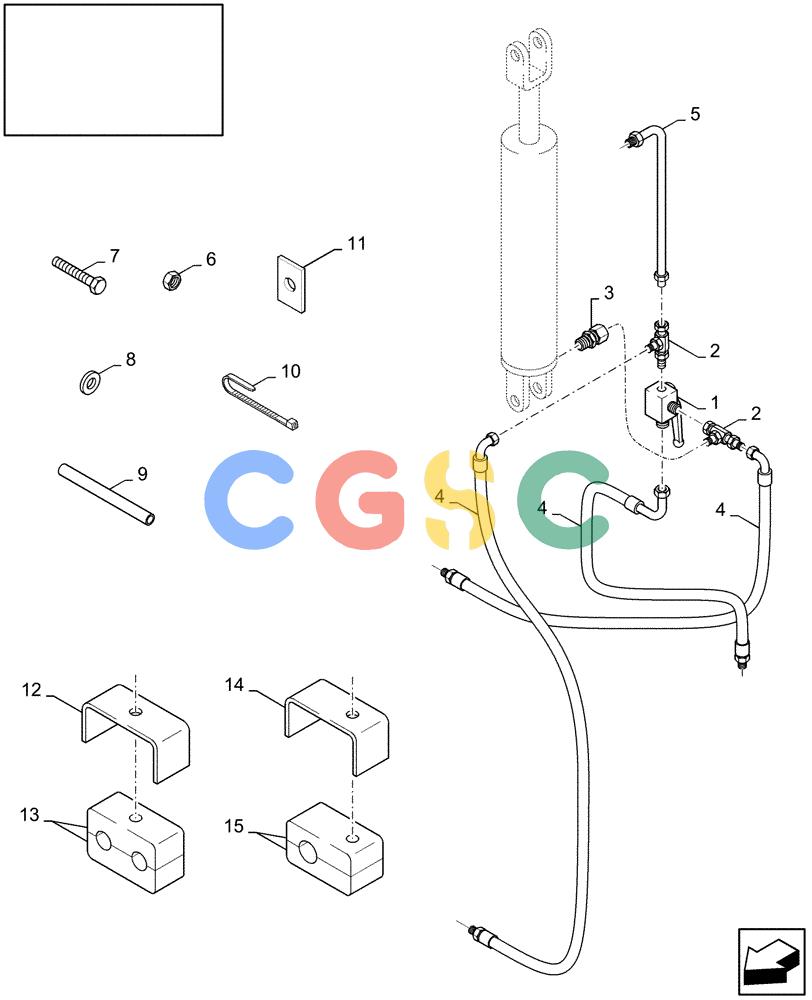

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (18.84067163[03]) - DIA : BALE EJECT KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84067163
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
84100885
|
[1] |
DRAINCOCK/TAP SUPPLY
|
ZED
|
| 2. |
84064562
|
[2] |
HYD CONNECTOR
|
ZED
|
| 3. |
84452214
|
[1] |
HYD CONNECTOR
|
ZED
|
| 4. |
84078517
|
[3] |
FLEXIBLE HOSE,6.35mm ID x 600mm L, SAE 100R1
|
ZED
|
| 5. |
84452439
|
[1] |
HYD TUBE,287.9, 139.6 mm L
|
ZED
|
| 6. |
412152
|
[3] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 6. |
9706755
|
[1] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 7. |
120100
|
[1] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 7. |
43118
|
[6] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
Superseded by part number: 120102
|
| 7. |
120056
|
[4] |
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
|
NH
|
| 7. |
338413
|
[1] |
BOLT,Hex, M6 x 60mm, Cl 8.8
|
NH
|
| 7. |
397985
|
[1] |
BOLT,Hex, M6 x 70mm, Cl 8.8, Full Thd
|
NH
|
| 8. |
140040
|
[1] |
WASHER,6.6mm ID x 22mm OD x 2mm Thk
|
ZED
|
| 8. |
86588450
|
[2] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 8. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 9. |
84007691
|
[1] |
HYD TUBE
|
ZED
|
| 9. |
84007692
|
[1] |
HYD TUBE
|
ZED
|
| 9. |
84452226
|
[1] |
HYD TUBE,386.2, 105.3 mm L
|
ZED
|
| 9. |
84007696
|
[1] |
HYD TUBE
|
ZED
|
| 9. |
84007695
|
[1] |
HYD TUBE
|
ZED
|
| 9. |
84073533
|
[1] |
HYD TUBE
|
ZED
|
| 9. |
84073535
|
[1] |
HYD TUBE
|
ZED
|
| 9. |
84607136
|
[1] |
HYD TUBE,100 mm L
|
ZED
|
| 9. |
84432932
|
[1] |
HYD TUBE,10 mm OD
|
ZED
|
| 9. |
84432934
|
[1] |
HYD TUBE,10 mm OD
|
ZED
|
| 9. |
84432926
|
[1] |
HYD TUBE,10 mm OD
|
ZED
|
| 9. |
84432924
|
[1] |
HYD TUBE,10 mm OD
|
ZED
|
| 9. |
84452443
|
[1] |
HYD TUBE,1296, 868 mm L
|
ZED
|
| 9. |
84452446
|
[1] |
HYD TUBE,1309.4, 698 mm L
|
ZED
|
| 10. |
396718
|
[3] |
STRAP
|
ZED
Superseded by part number: 529070
|
| 11. |
434097
|
[2] |
SUPPORT
|
DUB
|
| 12. |
431941
|
[11] |
SUPPORT
|
DUB
|
| 13. |
430357
|
[22] |
CLAMP
|
DUB
|
| 14. |
433101
|
[2] |
SUPPORT
|
NH
|
| 15. |
433008
|
[4] |
CLAMP
|
NH
|
| . . |
84429129
|
[1] |
DECAL
|
ZED
|
