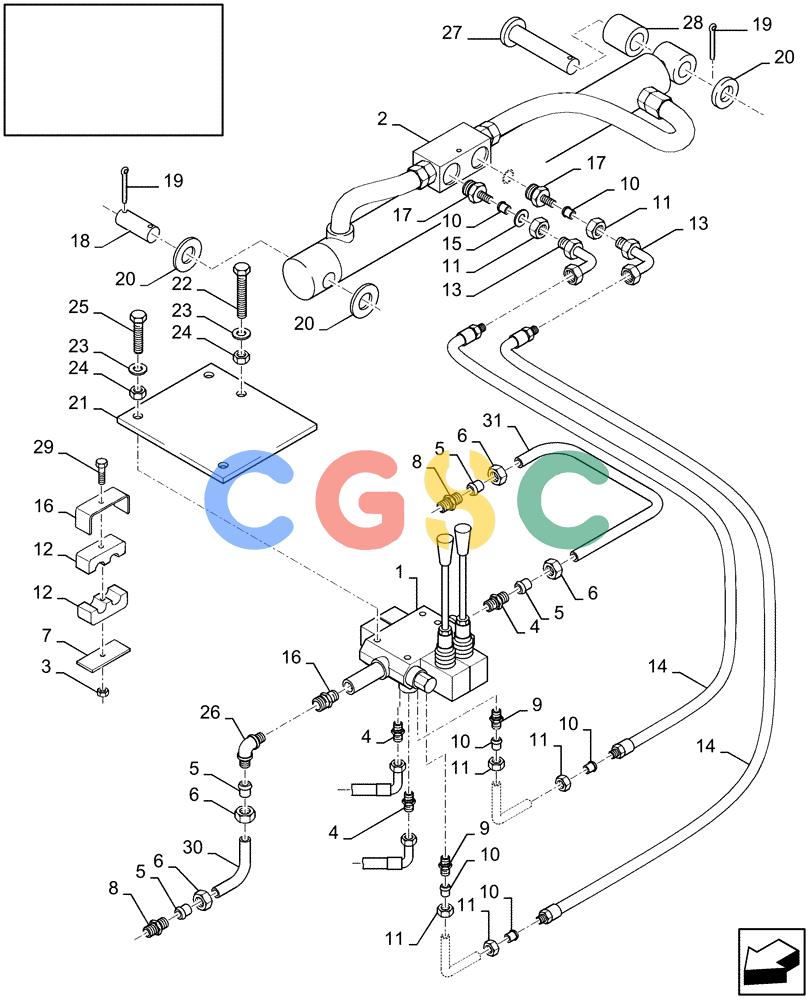

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (18.84070330[01]) - DIA : ROLLER BALE CHUTE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84070330
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
84062215
|
[1] |
HYDRAULIC VALVE
|
ZED
Superseded by part number: 84568219
|
| 2. |
84449279
|
[1] |
HYDRAULIC CYLINDER
|
ZED
Superseded by part number: 84272153
|
| 2. |
84272153R
|
[1] |
REMAN-HYD CYLINDER
|
ZED
|
| 2. |
84272153C
|
[1] |
CORE-HYD CYLINDER
|
ZED
Return Number
|
| 3. |
412152
|
[4] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 4. |
9813512
|
[3] |
HYD CONNECTOR
|
ZED
Superseded by part number: 89813512
|
| 5. |
150014
|
[4] |
FERRULE
|
ZED
|
| 6. |
86548975
|
[4] |
PIPE UNION NUT,M16 x 1.5
|
ZED
|
| 7. |
434097
|
[1] |
SUPPORT
|
DUB
|
| 8. |
150017
|
[2] |
HYD CONNECTOR,M16 x 1.5 x M16 x 1.5
|
ZED
Superseded by part number: 47499003
|
| 9. |
84043514
|
[2] |
HYD CONNECTOR
|
ZED
|
| 10. |
335136
|
[2] |
FERRULE
|
ZED
|
| 11. |
335135
|
[2] |
TUBE NUT,M14 x 1.5
|
ZED
|
| 12. |
430356
|
[2] |
CLAMP
|
ZED
|
| 13. |
418283
|
[2] |
ELBOW
|
ZED
|
| 14. |
84449371
|
[2] |
HYDRAULIC HOSE
|
ZED
|
| 15. |
423996
|
[1] |
ORIFICE
|
ZED
|
| 16. |
84814948
|
[1] |
SUPPORT
|
ZED
|
| 17. |
84074545
|
[2] |
HYD CONNECTOR
|
ZED
|
| 18. |
356015
|
[1] |
SPINDLE
|
ZED
|
| 19. |
130007
|
[4] |
COTTER PIN,M4 x 25
|
NH
Superseded by part number: 83903970
|
| 20. |
378246
|
[4] |
WASHER,17mm ID x 34mm OD x 3mm Thk
|
ZED
|
| 21. |
84074612
|
[1] |
PLATE
|
ZED
|
| 22. |
386045
|
[2] |
BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8
|
NH
Superseded by part number: 16044124
|
| 23. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 24. |
89706690
|
[4] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 25. |
43127
|
[2] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 26. |
427419
|
[1] |
HYD CONNECTOR
|
ZED
|
| 27. |
84078725
|
[1] |
CLEVIS PIN,16mm OD x 100mm L
|
ZED
|
| 28. |
84400935
|
[1] |
ROLLER
|
ZED
|
| 29. |
120056
|
[1] |
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
|
NH
|
| 30. |
84449889
|
[1] |
HYD TUBE,919.7, 442.8 mm L
|
ZED
|
| 31. |
84071773
|
[1] |
HYD TUBE
|
ZED
|
