纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-012) - PUMP ASSY, FUEL, P/N YF22P00002F3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
190 次

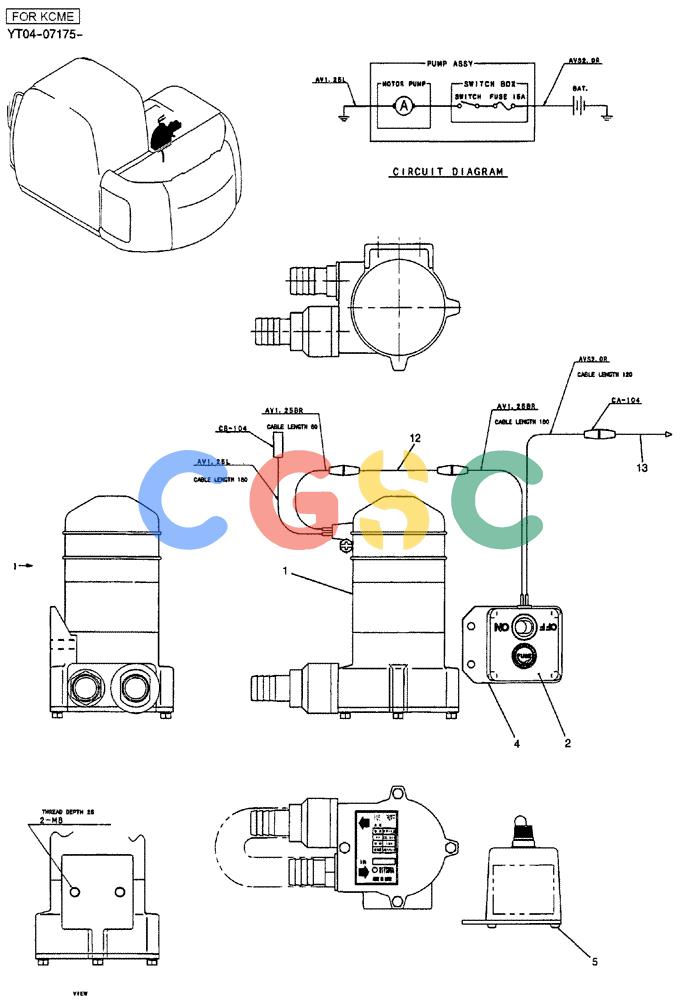

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF22P00002F3 | [1] | PUMP | KOBASSY, FUEL |
| 1. | YF22P00002S001 | [1] | MOTOR | KOBELEC |
| 2. | YF22P00002S002 | [1] | SWITCH | KOB |
| 4. | YF22P00002S004 | [1] | PLATE | KOB |
| 5. | YF22P00002S005 | [4] | SCREW,Phillips Drive, Pan HD, M4 x 14mm | KOBMACHINE Superseded by part number: ZS31C04014 |
| 12. | YT22P01009D1 | [1] | HARNESS | KOB |
| 13. | YT22P01010D1 | [1] | HARNESS | KOB |
