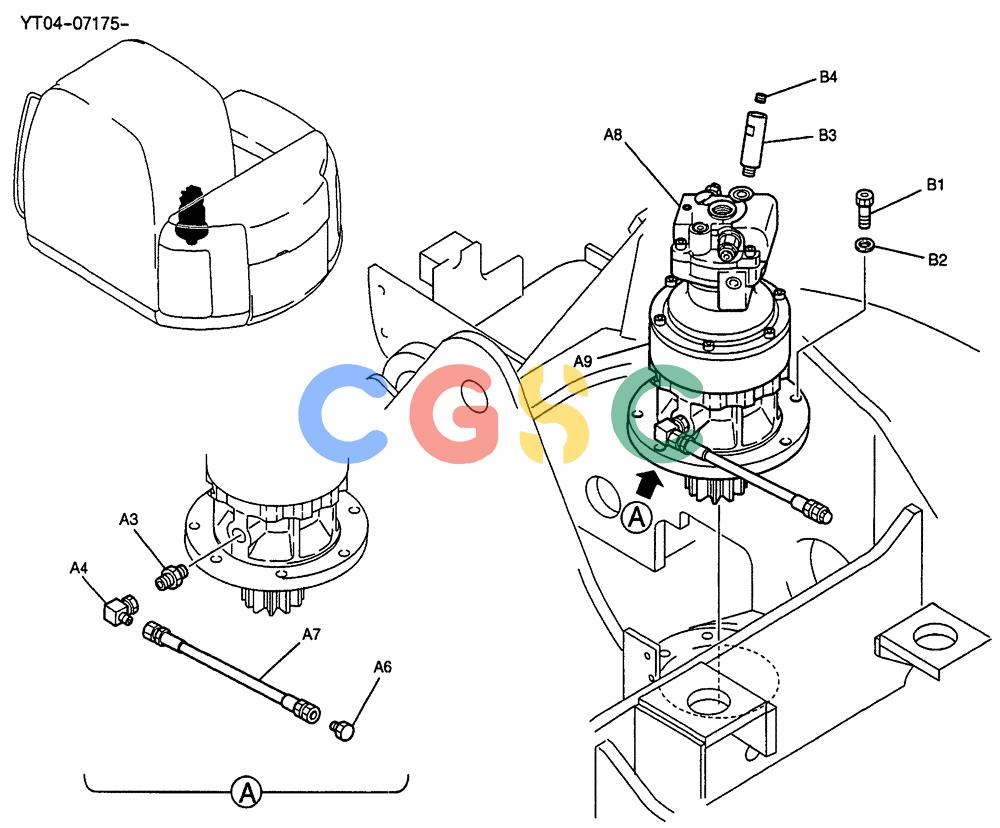

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-019) - MOTOR INSTAL, SWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
596 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT15V00001F3 | [1] | MOTOR | KOBASSY, SWING |
| A3. | ZH22Z06000 | [1] | CONNECTION | KOB |
| A4. | 2444R596D2 | [1] | ELBOW | KOB |
| A6. | 2444Z2728D2 | [1] | PLUG | KOB |
| A7. | 2444R1119D029 | [1] | HOSE | KOB Superseded by part number: 2444R1119D030 |
| A8. | YT15V00005F2 | [1] | MOTOR | KOBASSY, HYD |
| A9. | YT32W00002F2 | [1] | REDUCER | KOBASSY |
| . . | YT32W00001F1 | [1] | MOTOR INSTAL, SWING | |
| B1. | ZS23C16050 | [8] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW CAP |
| B2. | ZW13H16000 | [8] | WASHER | KOB |
| B3. | YT32W01001P1 | [1] | TUBE | KOB |
| B4. | ZE82T08000 | [1] | PLUG | KOB |
