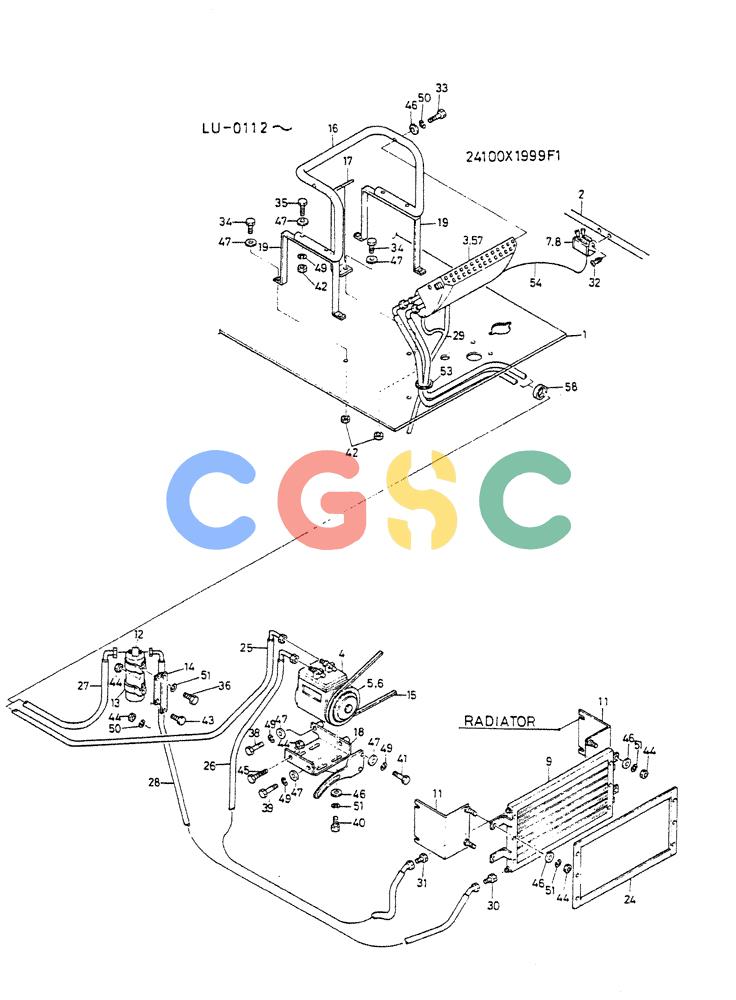

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-021) - COOLER ASSY, CAR P/N 24100X1999F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
550 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X1999F1 | [1] | COOLER ASSY, CAR | |
| 1. | 2422N1140 | [1] | PLATE- FLOOR | |
| 2. | 2427P1798 | [1] | CAB | |
| 3. | 24100U323 | [1] | UNIT, COOLING | UNIT, COOLING |
| 4. | 2450U213 | [1] | COMPRESSOR COMPRESSOR | COMPRESSOR COMPRESSOR |
| 5. | 2415U205 | [1] | CLUTCH | |
| 6. | 2418Z688 | [3] | WASHER | |
| 7. | 24100U324 | [1] | CONTROL ASSY | |
| 8. | 24100U325 | [1] | BRACKET | |
| 9. | 2484U164 | [1] | CONDENSER | CONDENSER |
| 11. | 2416P9530 | [2] | BRACKET | |
| 12. | 2427R420 | [1] | TANK, LIQUID | |
| 13. | 2416Z323 | [1] | BRACKET | |
| 14. | 2416T12551 | [1] | BRACKET | |
| 15. | R06P0004D5 | [1] | BELT | KOB |
| 16. | 2416T10791 | [1] | BRACKET | |
| 17. | 2416P9563 | [1] | BRACKET | |
| 18. | 2416N3092 | [1] | BRACKET | BRACKET |
| 19. | 2416T14647 | [2] | BRACKET | |
| 24. | 2416T10841 | [1] | BRACKET | |
| 25. | 2444R1267 | [1] | HOSE | |
| 26. | 2444P1268 | [1] | HOSE | |
| 27. | 2444R1269 | [1] | HOSE | |
| 28. | 2444R1270 | [1] | HOSE | |
| 29. | 2444Z2203 | [1] | HOSE | |
| 30. | 2444Z2204 | [1] | JOINT | |
| 31. | 2444Z2205 | [1] | JOINT | |
| 32. | ZS32T60014 | [2] | CAPSCREW | |
| 33. | ZS16C08050 | [2] | CAPSCREW | |
| 34. | ZM11C10030 | [6] | SCREW | KOBM10x1.50x30mm (Incls. Lockwasher) |
| 35. | ZS16C10055 | [4] | CAPSCREW M10x1.50x55mm | CAPSCREW M10x1.50x55mm |
| 36. | ZS13C08016 | [2] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 38. | ZS17C10060 | [2] | SCREW | KOB Superseded by part number: ZS18C10060 |
| 39. | ZS17C10070 | [1] | CAPSCREW | CAPSCREW |
| 40. | ZS17C08035 | [4] | BOLT M08x1.25x35mm | BOLT M08x1.25x35mm |
| 41. | ZS17C10045 | [2] | SCREW | KOB Superseded by part number: ZS18C10045 |
| 42. | ZN12C10008 | [6] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 43. | ZS11C08016 | [2] | CAPSCREW,Hex, M8 x 16mm, Cl 4.8 | KOBSCREW M08x1.25x16mm Superseded by part number: ZS18C08016 |
| 44. | ZN18C08007 | [10] | NUT | KOBM08x1.25mm |
| 45. | 2420Z786 | [2] | CAPSCREW | |
| 46. | ZW16X06000 | [10] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 47. | ZW16X10000 | [11] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 49. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 50. | ZW22X08000 | [2] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 51. | ZW26X08000 | [12] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 53. | 2420Z699 | [1] | GROMMET | KOB |
| 54. | 2479Z846 | [1] | HARNESS | |
| 57. | 2416Z322 | [1] | INSULATOR | |
| 58. | 2405Z147 | [6] | BUSHING | |
