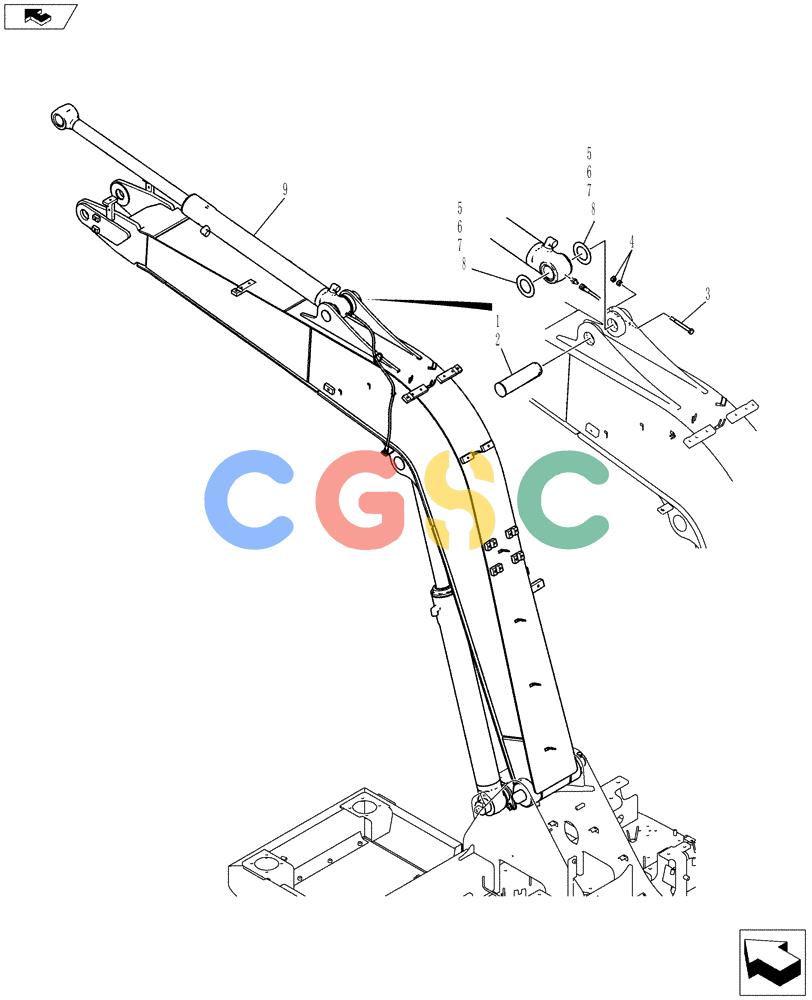

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (03-015[01]) - ARM CYLINDER INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02B00087F1 | [1] | | |
| 1. | YT02B00006F1 | [1] | CYLINDER | KOBInstal |
| 2. | YT02B01009P1 | [1] | PIN | KOB |
| 3. | HS18C12115G2 | [1] | SCREW,M12 x 115mm, Cl 10.9 | KOBCap |
| 4. | ZN18C12010 | [2] | NUT | KOB |
| 5. | B16T0442D56 | [1] | SHIM,0.5mm Thk | KOB |
| 6. | B16T0442D43 | [1] | SHIM,0.9mm Thk | KOB |
| 7. | B16T0442D27 | [1] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOB1.2 |
| 8. | PY02B01028P1 | [2] | SHIM,2.0mm Thk | KOB |
| 9. | YT01V00031F1 | [1] | LIFT CYLINDER | KOBArm |
