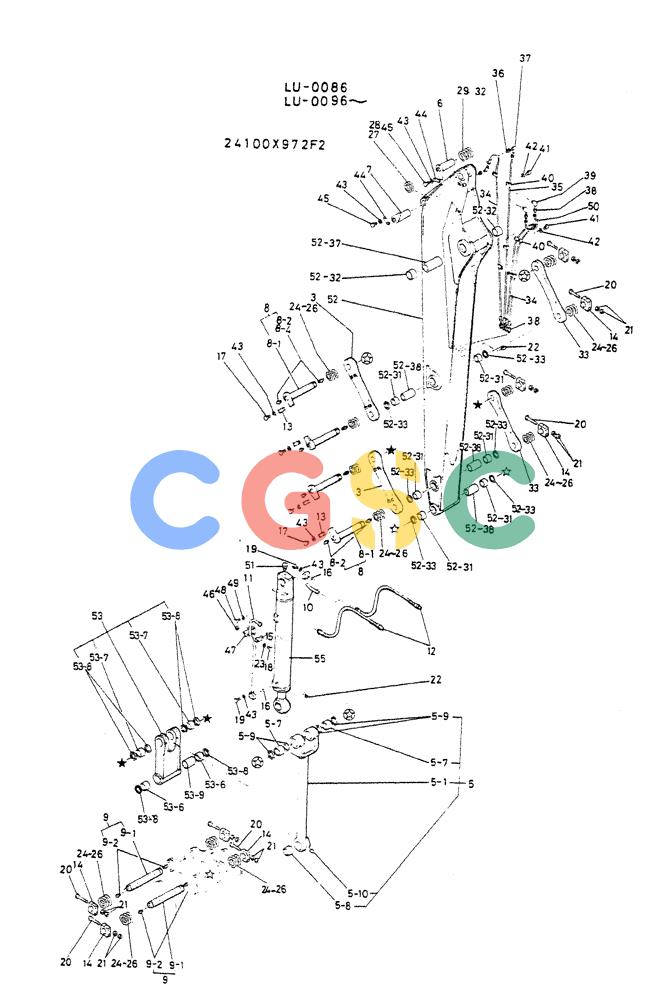

| . . | 24100X972F2 | [1] | ARM ASSY,5.28M | |
| 3. | 2406N531D2 | [2] | LINK, IDLER LINK, IDLER | LINK, IDLER LINK, IDLER |
| 5. | 2406N657F1 | [1] | LINK ASSY | |
| 5-1. | 2406N1657 | [1] | LINK | |
| 5-7. | 2405T648 | [2] | BUSHING | KOB |
| 5-6. | 2405T758 | [1] | BUSHING | KOB |
| 5-9. | 2445R138D8 | [4] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust -- ID 90 x OD 105 x Th 4mm |
| 5-10. | 44Z1810 | [1] | FITTING,GREASE | |
| 6. | 2419P2394 | [1] | PIN | PIN |
| 7. | 2419P2393 | [1] | PIN | KOB |
| 8. | 2419P1187F1 | [4] | PIN ASSY, Start Serial: LU.0086,0096- | |
| . . | 2419P2402F1 | [4] | PIN ASSY, Start Serial: LU.0142- | |
| 8-1. | 2419P1187 | [1] | PIN, Start Serial: LU.0086,0096- | |
| . . | 2419P2402 | [1] | PIN, Start Serial: LU.0142- | |
| 8-2. | 44Z1010 | [2] | FITTING,GREASE, Start Serial: LU.0086,0096- | |
| 8-4. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight, Start Serial: LU.0142- |
| 9. | 2419P1185F1 | [2] | PIN | KOB, Start Serial: LU.0086,0096- |
| . . | 2419P2400F1 | [2] | PIN, Start Serial: LU.0142- | |
| 9-1. | 2419P1185 | [1] | PIN, Start Serial: LU.0086,0096- | |
| . . | 2419P2400 | [1] | PIN, Start Serial: LU.0142- | |
| 9-2. | 44Z1D10 | [4] | FITTING | KOB, Start Serial: LU.0086,0096- |
| . . | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight, Start Serial: LU.0142- |
| 10. | 2418N1688 | [1] | TUBE | KOB |
| 11. | 2418N1689 | [1] | TUBE | KOB |
| 12. | ZX58B16180 | [2] | HOSE | |
| 13. | 2418T3887D1 | [4] | PLATE | KOB |
| 14. | 2432T1148 | [8] | CLAMP | KOB |
| 15. | R16P0035D3 | [1] | CLAMP | KOB |
| 16. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 17. | ZS18C12025 | [8] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 18. | ZS18C16080 | [2] | SCREW,Hex, M16 x 80mm | KOBM16x2.0x80mm |
| 19. | ZS18C12075 | [8] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm |
| 20. | ZS18C12100 | [16] | SCREW,Hex, M12 x 100mm | KOBM12x1.75x100mm |
| 21. | ZN18C12010 | [32] | NUT | KOBM12x1.75mm |
| 22. | 44Z1010 | [5] | FITTING, GREASE | |
| 23. | ZW16H16000 | [2] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 24. | B16T0442D13 | [9] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 25. | B16T0442D14 | [9] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 26. | B16T0442D15 | [9] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
| 27. | B16T0442D16 | [2] | SHIM,160mm OD x 92mm ID x 3.2mm Thk | KOBID 92 x OD 160 x Th 3.2mm |
| 28. | 2420T2747D1 | [2] | SHIM,92mm ID x 160mm OD x 4.5mm Thk | KOB |
| 29. | 2420T2747D2 | [2] | SHIM,102mm ID x 170mm OD x 1.2mm Thk | KOBID 102 x OD 170 x Th 1.2mm |
| 30. | 2420T2747D3 | [2] | SHIM,102mm ID x 170mm OD x 1.6mm Thk | KOBID 102 x OD 170 x Th 1.6mm |
| 31. | 2420T2747D4 | [2] | SHIM,102mm ID x 170mm OD x 2.3mm Thk | KOBID 102 x OD 170 x Th 2.3mm |
| 32. | 2420T2747D5 | [2] | SHIM,102mm ID x 170mm OD x 3.2mm Thk | KOBID 102 x OD 170 x Th 3.2mm |
| 33. | 2406N531D1 | [2] | LINK IDLER | |
| 34. | 2420R349D280 | [2] | HOSE | KOBPF 1/4 Superseded by part number: HX21E04280DX |
| 35. | 2420R349D356 | [1] | HOSE | |
| 36. | R44PG034 | [2] | CONNECTOR | |
| 37. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 38. | ZH22Z04000 | [6] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 39. | ZG32B04000 | [2] | ELBOW | KOB |
| 4 0. | R16P0036D17 | [8] | CLAMP | CLAMP |
| 41. | ZS18C08012 | [8] | SCREW,Hex, M8 x 12mm | KOBM08x1.25x12mm |
| 42. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 43. | ZW16H12000 | [20] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 44. | B16T0006 | [2] | PLATE | PLATE |
| 45. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 44. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| 47. | 2416P5330 | [1] | BRACKET | |
| 48. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 49. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 50. | 2420R349D264 | [1] | HOSE | HOSE |
| 51. | 44Z226D1 | [1] | PLUG | |
| 51. | 2411X647F1 | [1] | ARM | |
| 52-31. | 2405T647 | [6] | BUSHING | KOB |
| 52-32. | 2405T756 | [2] | BUSHING | |
| 52-33. | 2445R138D8 | [6] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust -- ID 90 x OD 105 x Th 4mm |
| 52-37. | 2418T6487 | [1] | SPACER | |
| 52-38. | 2418T6486 | [3] | SPACER | KOB |
| 53. | 2406N668F1 | [1] | LINK, BUCKET | LINK, BUCKET |
| 53-6. | 2405T647 | [2] | BUSHING | KOB |
| 53-7. | 2405T648 | [2] | BUSHING | KOB |
| 53-6. | 2445R138D8 | [6] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust -- ID 90 x OD 105 x Th 4mm |
| 53-9. | 2418T1686 | [1] | SPACER-CRANEPRT | SPACER-CRANEPRT |
| 54. | 24100N2179F1 | [1] | CONTROL ASSY,SEE FIG.03-005, Serial Range: LU.0096--LU.0132 | |
| . . | 24100J7747F1 | [1] | CONTROL ASSY,SEE FIG.03-006, Start Serial: LU.0133 | |
| 55. | 2438U522F3 | [1] | CYLINDER, BUCKET, Serial Range: LU.0086,0096--LU.0142 | CYLINDER, BUCKET, Serial Range: LU.0086,0096--LU.0142 |
| . . | 2438U522F5 | [1] | BUCKET CYLINDER | KOB, Start Serial: L.0143- |
