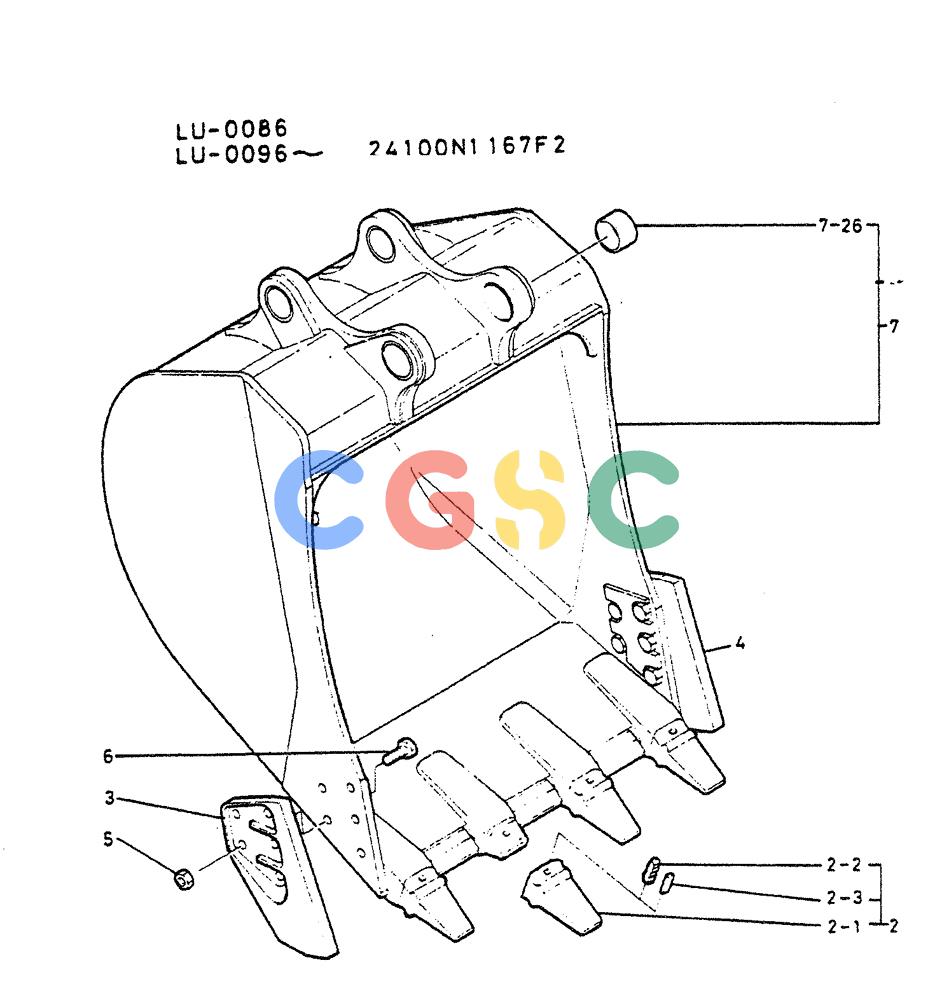

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (08-006) - BUCKET ASSY, 2.3M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
794 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N1167F2 | [1] | BUCKET ASSY 2.3M3 | |
| 2. | 2412U12F1 | [4] | TOOTH ASSY | |
| 2-1. | 2412U12E1 | [1] | POINT | |
| 2-2. | 2412U12E2 | [1] | PIN LOCKING | PIN LOCKING |
| 2-3. | 2412U12E3 | [1] | RUBBER | |
| 3. | 2412P238D1 | [1] | CUTTER | KOB |
| 4. | 2412P238D2 | [1] | CUTTER | KOB |
| 5. | ZN13C30024 | [10] | NUT | KOB |
| 6. | ZS13C30085 | [10] | SCREW | KOBCAPSCREW M30x3.50x85mm |
| 7. | 2412X236F1 | [1] | BUCKET | |
| 7-26. | 2405T704 | [4] | BUSHING | BUSHING |
