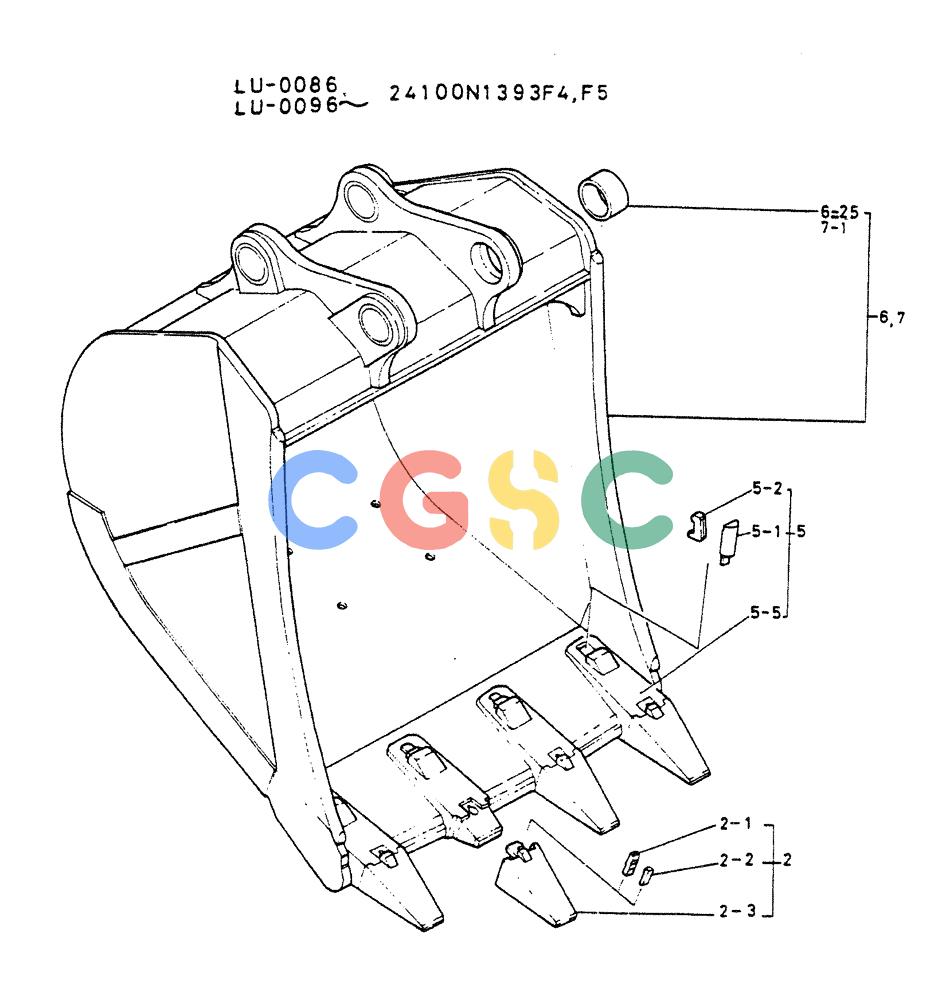

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (08-007) - BUCKET ASSY, ROCK, 2.0M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N1393F4 | [1] | BUCKET ASSY. 2.0M3 ROCK | |
| . . | 24100N1393F5 | [1] | BUCKET ASSY. 2.0M3 ROCK | |
| 2. | 2412U28F1 | [4] | POINT ASSY | |
| 2-1. | 2412U28S1 | [1] | PIN, LOCKING | PIN, LOCKING |
| 2-2. | 2412U28S2 | [1] | SHEAR BOLT RUBBER | SHEAR BOLT RUBBER |
| 2-3. | 2412U28S3 | [1] | POINT | POINT |
| 5. | 2412U27F3 | [4] | ADAPTER ASSY | |
| 5-1. | 2412R1D1 | [1] | WEDGE | WEDGE |
| 5-2. | 2412U27S2 | [1] | CLAMP | CLAMP |
| 5-5. | 2412U27S5 | [1] | ADAPTER | ADAPTER |
| 6. | 2412X249F1 | [1] | BUCKET | |
| 6-25. | 2405T839 | [4] | BUSHING | KOB |
| 7. | 2412X509F1 | [1] | BUCKET | |
| 7-1. | 2412U26 | [4] | BUSHING | |
