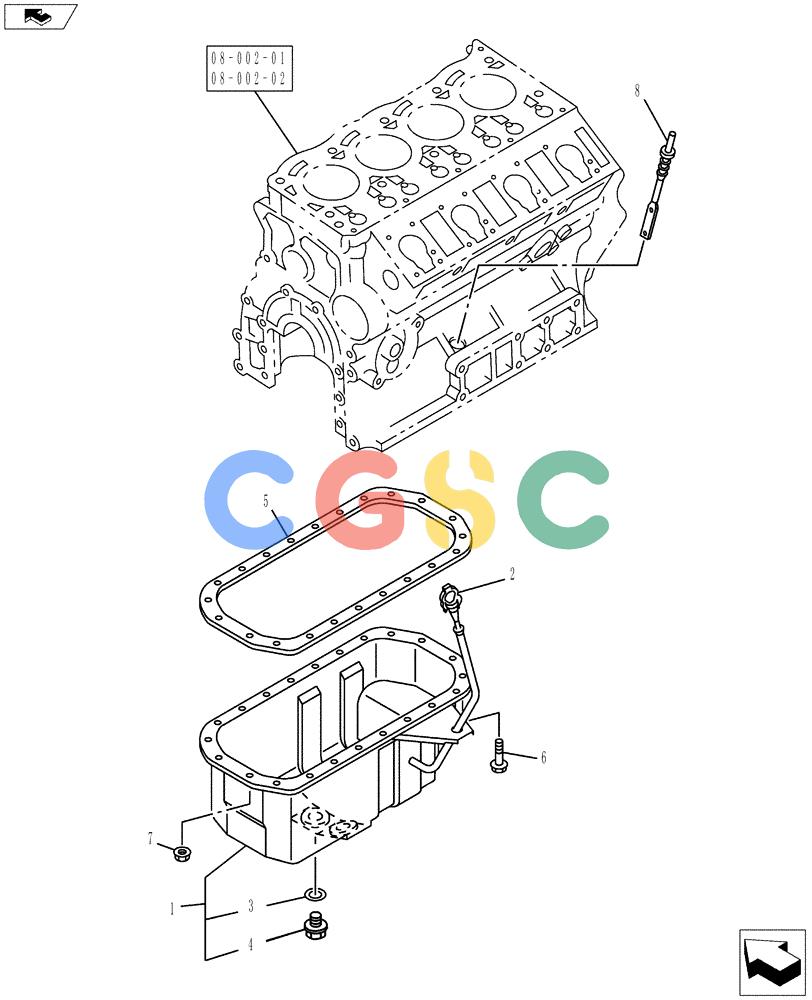

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (08-003[00]) - OIL PAN AND LEVEL GAUGE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
818 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8980930730 | [1] | PAN | KOBAsm., Oil |
| 2. | VI8980490350 | [1] | LEVEL GAUGE | KOBOil Superseded by part number: VI8980490351 |
| 3. | VI1096300900 | [1] | PACKING | KOBGasket; Drain Plug |
| 4. | VI1096040220 | [1] | DRAIN PLUG | KOBOil Superseded by part number: VI1096040641 |
| 5. | VI8973149140 | [1] | GASKET | KOBOil Pan To C/Bl |
| 6. | VI8980797910 | [18] | BOLT | KOBOil Pan |
| 7. | VI8973296220 | [4] | NUT | KOBOil Pan |
| 8. | VI8944584720 | [1] | PLUG | KOBLevel Gauge Superseded by part number: 47543914 |
