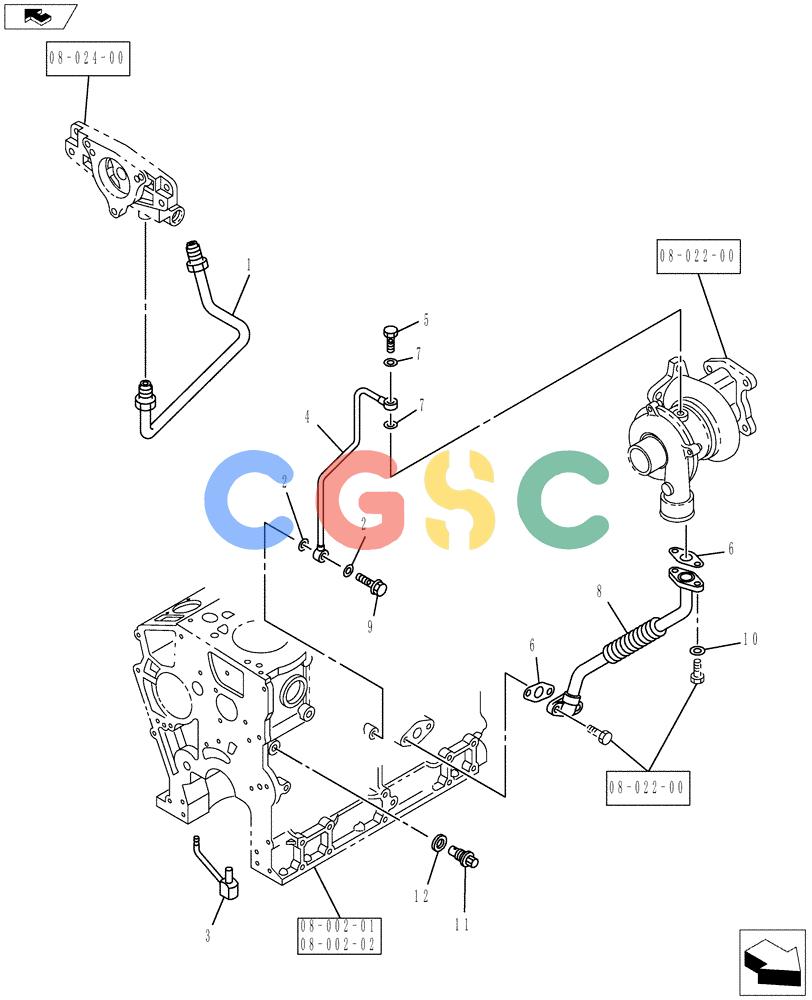

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (08-008[00]) - OIL AND VACUUM PIPING-ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
508 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8970454000 | [1] | PIPE | KOBOil, Pump To C/Bl |
| 2. | VI9095714100 | [2] | SEAL | KOBOil Pipe |
| 3. | VI8980903140 | [4] | PIPE | KOBOil, Oil Jet |
| 4. | VI8980959780 | [1] | PIPE | KOBOil, Turbocharger Feed |
| 5. | VI8980961320 | [1] | BOLT | KOBEye, Oil Pipe, Turbocharger Side |
| 6. | VI8943626721 | [2] | GASKET | KOBOil Pipe, Turbocharger |
| 8. | VI8980305640 | [1] | RETURN PIPE | KOBAsm., Oil, Turbocharger Return |
| 9. | VI9099061731 | [1] | EYEBOLT | KOBOil Pipe Fix Superseded by part number: VI1096750780 |
| 10. | VI9091605060 | [2] | WASHER | KOBPl |
| 11. | VI8971757030 | [1] | CHECK VALVE | KOBAsm. |
| 12. | VI9095714160 | [1] | SEAL | KOBCheck Vlv. |
