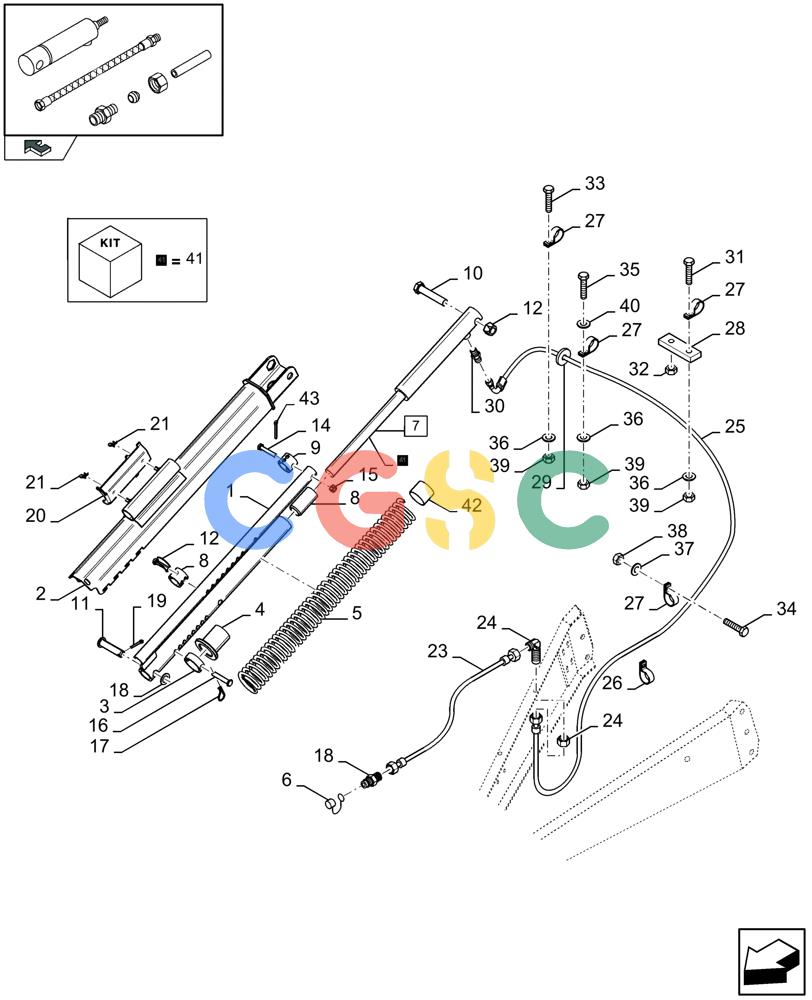

| 1. |
84817368
|
[1] |
SUPPORT
|
ZED
|
| 2. |
84817374
|
[1] |
GUIDE
|
ZED
|
| 3. |
84817381
|
[1] |
BUSHING,51.3mm ID x 60.3mm OD x 20mm L
|
ZED
|
| 4. |
84817383
|
[1] |
BUSHING
|
ZED
|
| 5. |
84801205
|
[1] |
EXPANDER
|
ZED
, Serial Range: -C411
|
| 5. |
84817444
|
[1] |
SPRING
|
ZED
, Start Serial: D412 Superseded by part number: 84801205
|
| 6. |
84819677
|
[1] |
CAP COVER
|
ZED
|
| 7. |
84818223
|
[1] |
HYDRAULIC CYLINDER,30mm Rod, 230mm Stroke
|
ZED
(41)
|
| 8. |
9837602
|
[1] |
BUSHING,31mm ID x 40mm OD x 80mm L
|
ZED
|
| 9. |
84024657
|
[2] |
BUSHING
|
PLO
|
| 10. |
80395528
|
[1] |
SCREW
|
ZED
Superseded by part number: 395528
|
| 11. |
84021067
|
[1] |
PIN
|
ZED
|
| 12. |
80380424
|
[1] |
LOCK NUT
|
ZED
Superseded by part number: 380424
|
| 13. |
89838996
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 9838996
|
| 14. |
80120070
|
[1] |
SCREW
|
ZED
, Serial Range: -C535 Superseded by part number: 120070
|
| 14. |
336793
|
[1] |
CLEVIS PIN,M10 x 55
|
ZED
, Start Serial: D536 Superseded by part number: 80336793
|
| 15. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
, Serial Range: -C535 Superseded by part number: 100037
|
| 15. |
140017
|
[1] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
, Start Serial: D536 Superseded by part number: 9820489
|
| 16. |
84045619
|
[1] |
PIN,12mm OD x 72.5mm L
|
ZED
|
| 17. |
80370539
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 370539
|
| 18. |
84819675
|
[1] |
PUSH-PULL COUPLING
|
ZED
|
| 19. |
89820493
|
[1] |
WASHER
|
ZED
Superseded by part number: 9820493
|
| 20. |
80130011
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 130011
|
| 21. |
84818191
|
[1] |
SUPPORT
|
ZED
|
| 22. |
84807781
|
[2] |
WING NUT,M8
|
NH
|
| 23. |
84078071
|
[1] |
FLEXIBLE HOSE,6.35mm ID x 2500mm L, SAE 100R1
|
ZED
|
| 24. |
84041508
|
[1] |
HYD CONNECTOR
|
ZED
|
| 25. |
84448414
|
[1] |
FLEXIBLE HOSE,6.35mm ID x 3700mm L, SAE 100R1
|
ZED
|
| 26. |
80396718
|
[5] |
STRAP
|
ZED
Superseded by part number: 529070
|
| 27. |
80431351
|
[1] |
CLAMP
|
ZED
Superseded by part number: 431351
|
| 28. |
84007699
|
[1] |
COVER PLATE
|
ZED
|
| 29. |
84435431
|
[1] |
GROMMET,M15 x 40 x 30
|
ZED
|
| 30. |
80386215
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 386215
|
| 31. |
89706703
|
[1] |
BOLT
|
ZED
M6 x 20 Superseded by part number: 9706703
|
| 32. |
80100095
|
[1] |
NUT
|
ZED
M16 Superseded by part number: 10717511
|
| 33. |
80120100
|
[1] |
BOLT,M6 x 1 x 20mm
|
ZED
Superseded by part number: 120100
|
| 34. |
80043127
|
[1] |
SCREW,M8 x 25mm
|
ZED
M8 x 25 Superseded by part number: 43127
|
| 35. |
86977786
|
[2] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
|
GI
|
| 36. |
80322357
|
[1] |
LOCK WASHER,Belleville, M6
|
ZED
Superseded by part number: 322357
|
| 37. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8 MM Superseded by part number: 322358
|
| 38. |
89706690
|
[1] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 39. |
15896221
|
[1] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 40. |
86588450
|
[2] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 41. |
84045272
|
[1] |
SEAL KIT
|
ZED
|
| 42. |
84801207
|
[1] |
BUSHING
|
ZED
, Start Serial: D436
|
| 43. |
130004
|
[1] |
COTTER PIN,2.9mm OD x 31.4mm OAL
|
WIN
, Start Serial: D536
|
