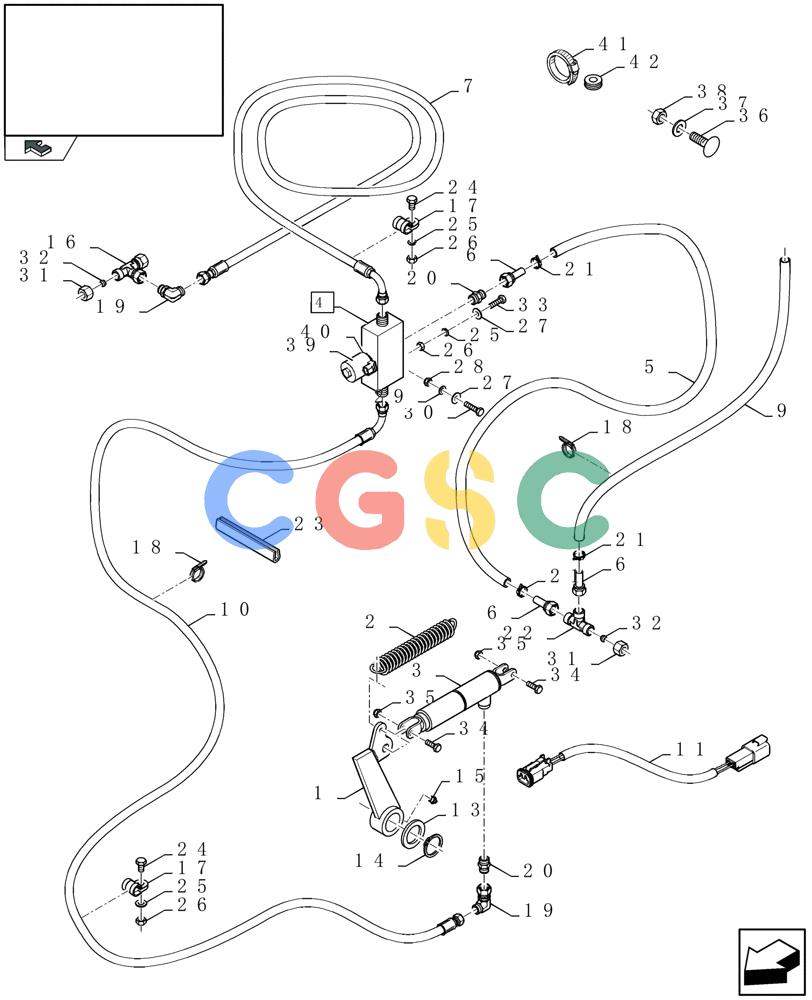

| 1. |
84817591
|
[1] |
STOP
|
ZED
|
| 2. |
84806601
|
[1] |
SPRING,Extension, 28.399mm OD x 108mm L
|
ZED
|
| 3. |
84817400
|
[1] |
HYDRAULIC CYLINDER
|
ZED
|
| 4. |
84443728
|
[1] |
HYDRAULIC VALVE
|
ZED
(39, 40)
|
| 5. |
84458449
|
[1] |
HOSE,8.00 mm ID x 800.00 mm
|
ZED
|
| 6. |
84458429
|
[3] |
HYD TUBE,8 mm OD x 45 mm L
|
ZED
|
| 7. |
84458266
|
[1] |
FLEXIBLE HOSE
|
ZED
|
| 9. |
84458460
|
[1] |
HOSE,8.00 mm ID x 650.00 mm
|
ZED
|
| 10. |
84448414
|
[1] |
FLEXIBLE HOSE,6.35mm ID x 3700mm L, SAE 100R1
|
ZED
|
| 11. |
84459111
|
[1] |
WIRE HARNESS
|
ZED
|
| 13. |
80140119
|
[5] |
WASHER
|
ZED
Superseded by part number: 140119
|
| 14. |
80370004
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 11068376
|
| 15. |
9838669
|
[1] |
LUBE NIPPLE
|
ZED
Superseded by part number: 84062065
|
| 16. |
84064562
|
[1] |
HYD CONNECTOR
|
ZED
|
| 17. |
80431351
|
[6] |
CLAMP
|
ZED
Superseded by part number: 431351
|
| 18. |
80323597
|
[1] |
STRAP
|
ZED
Nylon Superseded by part number: 14560287
|
| 18. |
574518
|
[1] |
HOSE CLAMP,6.3mm - 15.7mm, SAE # 4
|
NH
Steel Superseded by part number: 86625022
|
| 19. |
80418283
|
[2] |
ELBOW
|
ZED
Superseded by part number: 418283
|
| 20. |
89850318
|
[4] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9850318
|
| 21. |
80574518
|
[4] |
HOSE CLAMP
|
ZED
Superseded by part number: 82039341
|
| 22. |
80379430
|
[1] |
3 WAY CONNECTION
|
ZED
Superseded by part number: 379430
|
| 23. |
9850033
|
[1] |
SEAL
|
ZED
Superseded by part number: 84053834
|
| 24. |
80300506
|
[6] |
SCREW
|
ZED
M6 x 25 Superseded by part number: 86977786
|
| 25. |
80322357
|
[7] |
LOCK WASHER,Belleville, M6
|
ZED
Superseded by part number: 322357
|
| 26. |
15896221
|
[7] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 27. |
80140040
|
[2] |
WASHER
|
ZED
6 MM, Serial Range: -C547 Superseded by part number: 140040
|
| 28. |
80412152
|
[1] |
NUT
|
ZED
M6 Superseded by part number: 412152
|
| 29. |
86588450
|
[1] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 30. |
86508569
|
[1] |
BOLT,Hex, M6 x 70mm, Cl 8.8
|
NH
|
| 31. |
80335135
|
[2] |
NUT
|
ZED
M8 Superseded by part number: 335135
|
| 32. |
80335136
|
[2] |
FERRULE
|
ZED
8 MM Superseded by part number: 335136
|
| 33. |
80120056
|
[1] |
SCREW
|
ZED
M6 x 50, Serial Range: -C547 Superseded by part number: 120056
|
| 34. |
89706704
|
[2] |
BOLT,M10 x 35mm
|
ZED
M10 x 35 Superseded by part number: 9706704
|
| 35. |
80100037
|
[2] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 36. |
80374895
|
[4] |
CARRIAGE BOLT
|
ZED
M12 x 25 Superseded by part number: 374895
|
| 37. |
80140046
|
[4] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 38. |
89706685
|
[4] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 39. |
87367792
|
[1] |
SOLENOID
|
ZED
|
| 40. |
87367794
|
[1] |
HYDRAULIC VALVE
|
ZED
Superseded by part number: 86000592
|
| 41. |
418407
|
[3] |
CLAMP,24mm ID, 8.5mm Bolt Hole, P Type
|
ZED
, Start Serial: D548
|
| 42. |
452802
|
[1] |
GROMMET
|
ZED
|
