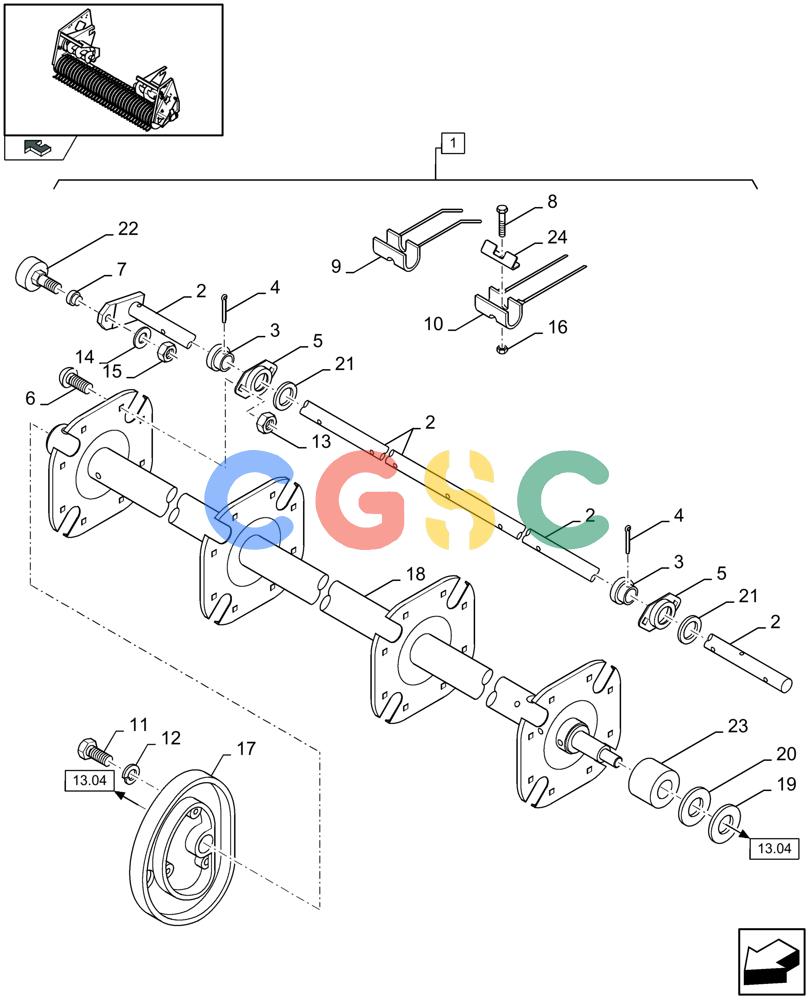

| 1. |
84086552
|
[1] |
REEL
|
ZED
(2-22) Superseded by part number: 84607752, 84132577, 84056883, 87524838, 86511416, 84801578, 54695, 84078880, 84056924, 82034883, 446691, 442245, 9847572, 16044124, 84330047, 43140, 14496621, 140045, 84607813, 136521, 100037
|
| 1. |
84086556
|
[1] |
REEL
|
ZED
(2-22) Superseded by part number: 9847572, 43140, 442245, 84607813, 84607736, 446691, 84330047, 84056924, 84132577, 84078880, 84801578, 86511416, 140045, 54695, 14496621, 16044124, 136521, 87523950, 100037, 84056883, 82034883
|
| 2. |
84607752
|
[4] |
TINE BAR
|
ZED
|
| 2. |
84607736
|
[4] |
TINE BAR
|
ZED
|
| 3. |
80054770
|
[1] |
BALL BEARING
|
ZED
Superseded by part number: 84330047
|
| 4. |
80136521
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 136521
|
| 5. |
80054695
|
[1] |
BEARING CARRIER
|
ZED
Superseded by part number: 54695
|
| 6. |
80380425
|
[1] |
BOLT
|
ZED
Superseded by part number: 380425
|
| 7. |
84078880
|
[4] |
BUSHING,15.88mm ID x 30mm OD x 13.5mm L
|
ZED
|
| 8. |
80043129
|
[1] |
SCREW
|
ZED
M8 x 40, Serial Range: -C491 Superseded by part number: 16044024
|
| 8. |
386045
|
[1] |
BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8
|
NH
, Start Serial: D492 Superseded by part number: 16044124
|
| 9. |
89847572
|
[1] |
TINE
|
ZED
Outside Superseded by part number: 9847572
|
| 10. |
84056883
|
[1] |
TINE,2 Prongs, 96.52mm L
|
ZED
Inside
|
| 11. |
80043140
|
[3] |
BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
ZED
Superseded by part number: 43140
|
| 12. |
80140045
|
[3] |
WASHER
|
ZED
Belleville, M10 Superseded by part number: 140045
|
| 13. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 14. |
80446691
|
[4] |
WASHER
|
ZED
Superseded by part number: 446691
|
| 15. |
86511416
|
[4] |
JAM NUT,Jam, 5/8"-18, G2
|
ZED
|
| 16. |
86629542
|
[1] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 17. |
84607813
|
[1] |
CAM
|
ZED
|
| 18. |
84607910
|
[1] |
REEL
|
ZED
, Serial Range: -C491
|
| 18. |
84801737
|
[1] |
TUBE,1891 mm L
|
ZED
, Serial Range: -F492655
|
| 18. |
87524838
|
[1] |
ROTOR
|
ZED
, Start Serial: D656
|
| 18. |
84607906
|
[1] |
REEL
|
ZED
, Serial Range: -C491
|
| 18. |
84801740
|
[1] |
TUBE,2275 mm L
|
ZED
, Serial Range: -F492655
|
| 18. |
87523950
|
[1] |
ROTOR
|
ZED
, Start Serial: D656
|
| 19. |
80442293
|
[1] |
WASHER
|
ZED
, Serial Range: -C491 Superseded by part number: 442293
|
| 20. |
80047704
|
[1] |
WASHER
|
ZED
36 MM, Serial Range: -C491 Superseded by part number: 47704
|
| 21. |
80442245
|
[1] |
RING
|
ZED
Superseded by part number: 442245
|
| 22. |
84056924
|
[4] |
CAM FOLLOWER,Tine Shaft
|
ZED
|
| 23. |
84817286
|
[1] |
BUSHING,35.7mm ID x 48.3mm OD x 22mm L
|
ZED
|
| 24. |
84801578
|
[1] |
STOP
|
ZED
|
