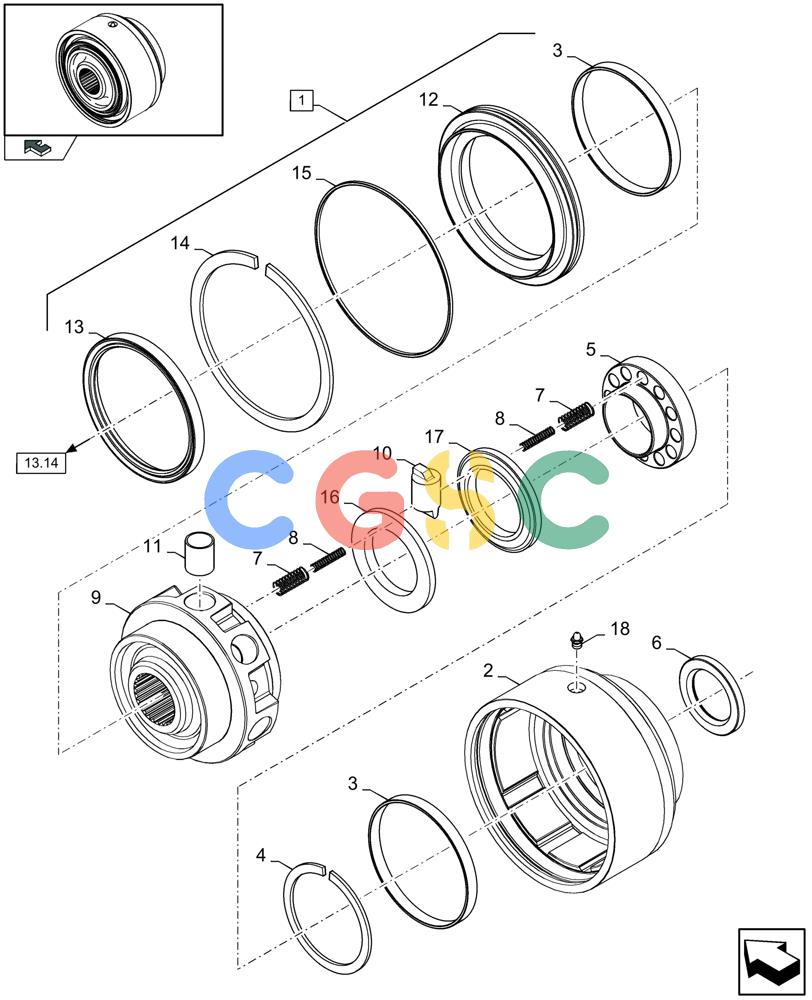

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (13.14A[01]) - ROTOR DRIVE - SLIP CLUTCH - D444 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84801473
|
[1] |
CLUTCH
|
ZED
(2-18)
|
| 2. |
84801504
|
[1] |
CASE
|
ZED
|
| 3. |
84801517
|
[2] |
RING
|
ZED
|
| 4. |
84801511
|
[1] |
CIRCLIP
|
ZED
|
| 5. |
84801512
|
[1] |
SPRING BOX
|
ZED
|
| 6. |
84801506
|
[1] |
OIL SCRAPER RING
|
ZED
|
| 7. |
84801509
|
[24] |
SPRING
|
ZED
|
| 8. |
84801508
|
[18] |
SPRING
|
ZED
|
| 9. |
84801519
|
[1] |
HUB
|
ZED
|
| 10. |
84801514
|
[7] |
COVER
|
ZED
|
| 11. |
84801513
|
[7] |
BUSHING,28mm ID x 32mm ID x 30mm Thk
|
ZED
|
| 12. |
84801518
|
[1] |
COVER
|
ZED
|
| 13. |
84801507
|
[1] |
OIL SCRAPER RING
|
ZED
|
| 14. |
84801510
|
[1] |
CIRCLIP
|
ZED
|
| 15. |
84801505
|
[1] |
OIL SCRAPER RING
|
ZED
Superseded by part number: 84346539
|
| 16. |
84801516
|
[1] |
CLUTCH DISC
|
ZED
CLUTCH DISK
|
| 17. |
84801515
|
[1] |
CLUTCH DISC
|
ZED
CLUTCH DISK
|
| 18. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
