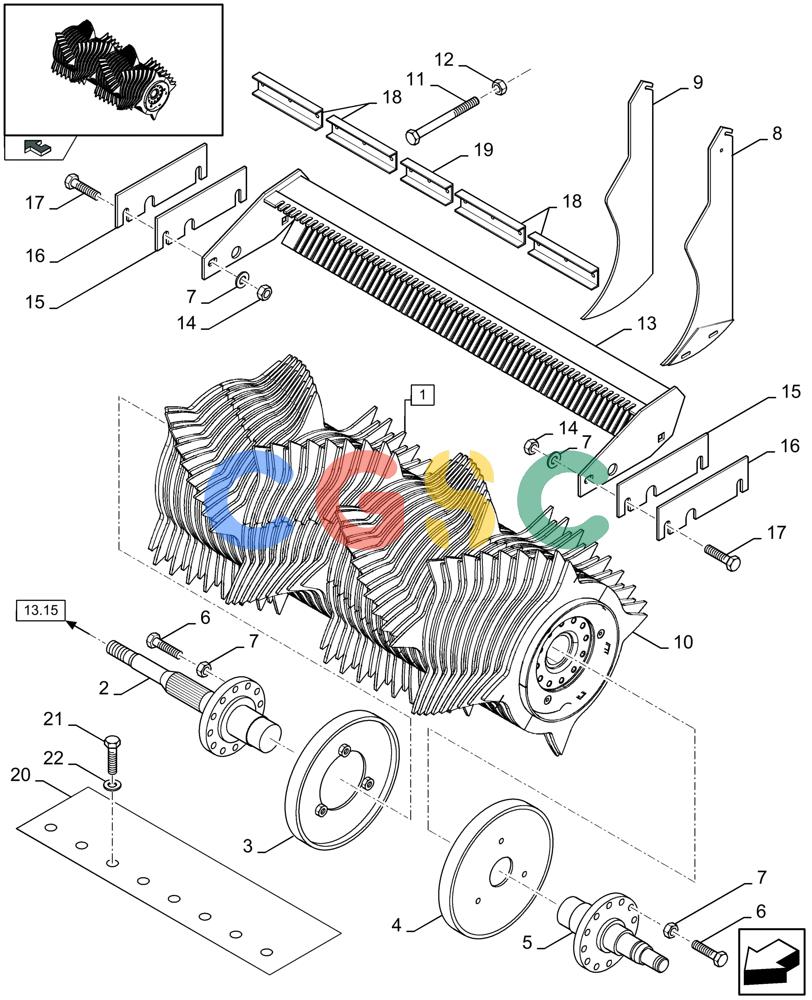

| 1. |
84807747
|
[1] |
ROTOR
|
ZED
(10) W-rotor, Serial Range: -C595 Superseded by part number: 87605075
|
| 1. |
87605075
|
[1] |
ROTOR
|
ZED
(10) W-rotor, Start Serial: D596
|
| 1. |
84807024
|
[1] |
ROTOR
|
ZED
(10) W-rotor, Serial Range: -C595 Superseded by part number: 87605077
|
| 1. |
87605077
|
[1] |
ROTOR
|
ZED
(10) W-rotor, Start Serial: D596
|
| 2. |
84074542
|
[1] |
SHAFT
|
ZED
RH
|
| 3. |
84039525
|
[1] |
FLANGE
|
ZED
RH, Serial Range: -C535 Superseded by part number: 87388926
|
| 3. |
87388926
|
[1] |
FLANGE
|
ZED
RH, Start Serial: D536
|
| 4. |
84039526
|
[1] |
FLANGE
|
ZED
LH, Serial Range: -C535 Superseded by part number: 87388925
|
| 4. |
87388925
|
[1] |
FLANGE
|
ZED
LH, Start Serial: D536
|
| 5. |
84039522
|
[1] |
SHAFT
|
ZED
LH
|
| 6. |
80385922
|
[24] |
SCREW,M16 x 45mm
|
ZED
M16 x 45 Superseded by part number: 385922
|
| 7. |
80140048
|
[28] |
WASHER
|
ZED
16.4 MM Superseded by part number: 140048
|
| 8. |
84056939
|
[23] |
SCRAPER BLADE
|
ZED
|
| 9. |
84041367
|
[22] |
SCRAPER BLADE
|
ZED
|
| 10. |
84068695
|
[1] |
KNIFE BLADE
|
ZED
Side, Serial Range: -C395
|
| 10. |
84807029
|
[4] |
KNIFE BLADE
|
ZED
Side, Serial Range: -F396595
|
| 10. |
87595221
|
[4] |
KNIFE BLADE
|
ZED
Side, Start Serial: D596
|
| 10. |
84068696
|
[1] |
KNIFE BLADE
|
ZED
Short, Serial Range: -C395
|
| 10. |
84807027
|
[42] |
KNIFE BLADE
|
ZED
Short, Serial Range: -F396595
|
| 10. |
87595224
|
[42] |
KNIFE BLADE
|
ZED
Short, Start Serial: D596
|
| 10. |
84037761
|
[1] |
KNIFE BLADE
|
ZED
Long, Serial Range: -C395
|
| 10. |
84807028
|
[46] |
KNIFE BLADE
|
ZED
Long, Serial Range: -F396595
|
| 10. |
87595220
|
[46] |
KNIFE BLADE
|
ZED
Long, Start Serial: D596
|
| 11. |
80337474
|
[1] |
SCREW
|
ZED
M10 x 200 Superseded by part number: 337474
|
| 12. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 13. |
84038656
|
[1] |
FRAME
|
ZED
, Serial Range: -C587 Superseded by part number: 87598460
|
| 13. |
87598460
|
[1] |
BEAM
|
ZED
, Start Serial: D588
|
| 13. |
84068993
|
[1] |
FRAME
|
ZED
, Serial Range: -C587 Superseded by part number: 87598455
|
| 13. |
87598455
|
[1] |
BEAM
|
ZED
, Start Serial: D588
|
| 14. |
100020
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 15. |
84041629
|
[1] |
ADJUSTING PLATE
|
ZED
THK.: 3 MM
|
| 16. |
84038646
|
[1] |
ADJUSTING PLATE
|
ZED
THK.: 1 MM
|
| 17. |
89838060
|
[4] |
SCREW
|
ZED
M16 x 40 Superseded by part number: 86595832
|
| 18. |
84053626
|
[1] |
PROFILE
|
ZED
|
| 19. |
84053625
|
[1] |
PROFILE
|
ZED
|
| 19. |
84068994
|
[1] |
PROFILE
|
ZED
|
| 20. |
87598462
|
[1] |
CLAMP
|
ZED
|
| 20. |
87598458
|
[1] |
CLAMP
|
ZED
|
| 21. |
86629541
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 22. |
140046
|
[1] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
