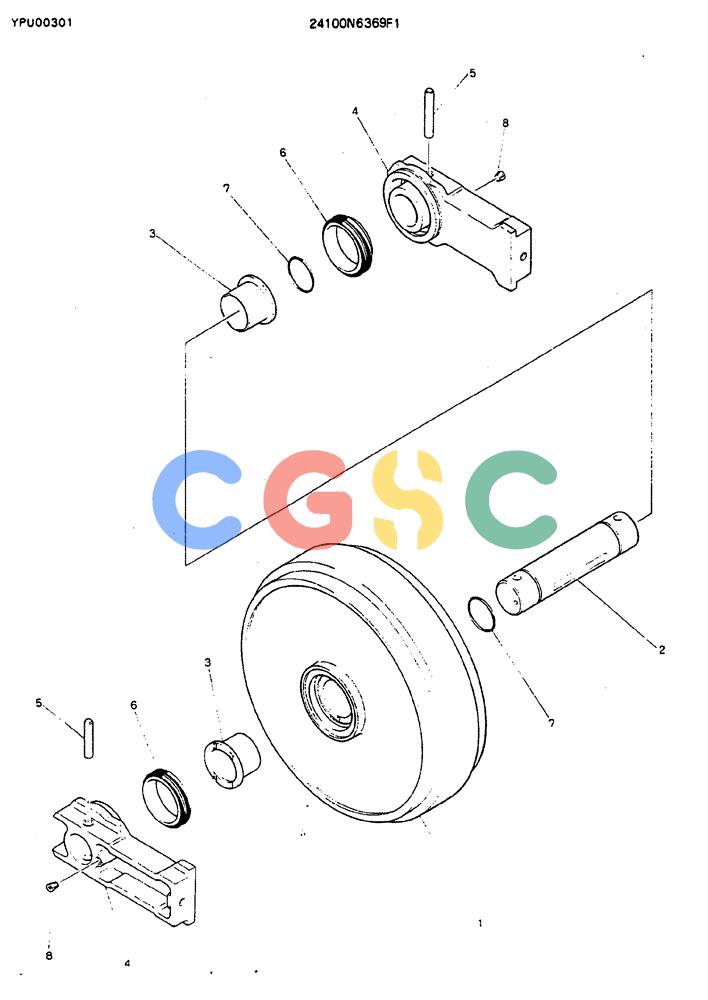

神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (07-002) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
775 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N6369F1 | [1] | IDLER | KOB |
| 1. | 2413N421 | [1] | IDLER | KOB Superseded by part number: 2413N738, 77251783 |
| 2. | 2410P799 | [1] | ROLLER SHAFT | KOB |
| 3. | 2405T1046 | [2] | BUSHING | KOB |
| 4. | 2416N5733 | [2] | BLOCK | KOB |
| 5. | 2419T2668D3 | [2] | PIN | KOB Superseded by part number: 2419T6402 |
| 6. | R45P0018D10 | [2] | SEAL | KOB Superseded by part number: ZD58F08029 |
| 7. | ZD11P04800 | [2] | O-RING | KOB |
| 8. | ZE82T02000 | [2] | PLUG | KOBPipe, 1.25" PT |
