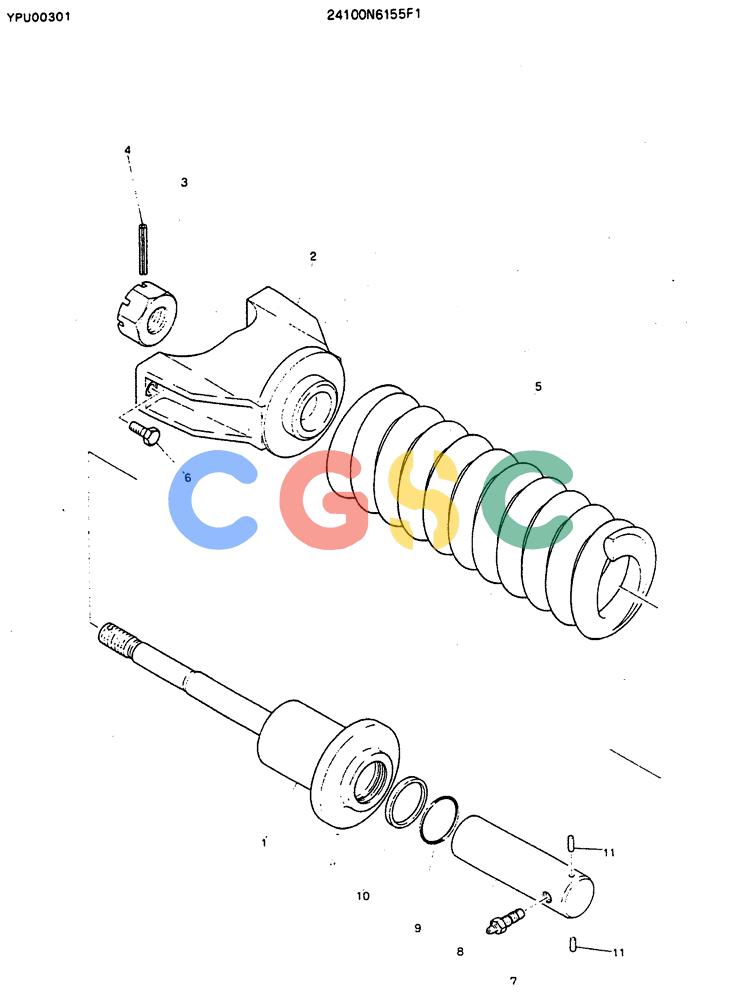

神钢零件查询(MD140C) - EXCAVATOR BTW YPU0301 - YPU0500 (1/80-12/06) (07-005) - SPRING ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
931 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N6155F1 | [1] | SPRING | KOBTRACK |
| 1. | 2438N260 | [1] | CYLINDER | KOB Superseded by part number: 2438N260C2 |
| 2. | 2416N3421D2 | [1] | U-BRACKET | KOB |
| 3. | 2420T4585 | [1] | NUT | KOB |
| 4. | ZP26D06063 | [1] | PIN | KOBRoll -- OD 06 x 63mm Long |
| 5. | 2417P273 | [1] | SPRING | KOBSPRING |
| 6. | ZS13C12035 | [2] | CAPSCREW | KOBSCREW M12x1.75x35mm Superseded by part number: ZS18C12035 |
| 7. | 2444P803 | [1] | LUBE NIPPLE,5/8" - 18 x 64mm L, 19mm Hex | KOB5/8" - 18 UNF, Straight |
| 8. | 2439P171 | [1] | PIN | KOB |
| 9. | ZD12G06500 | [1] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOBID 64.40 ± 0.57 x OD 70mm |
| 10. | 2418U130D36 | [1] | PACKING | KOBSEAL, OIL |
| 11. | 2419T4748 | [2] | PIN | KOB Superseded by part number: LQ54D01023P1 |
