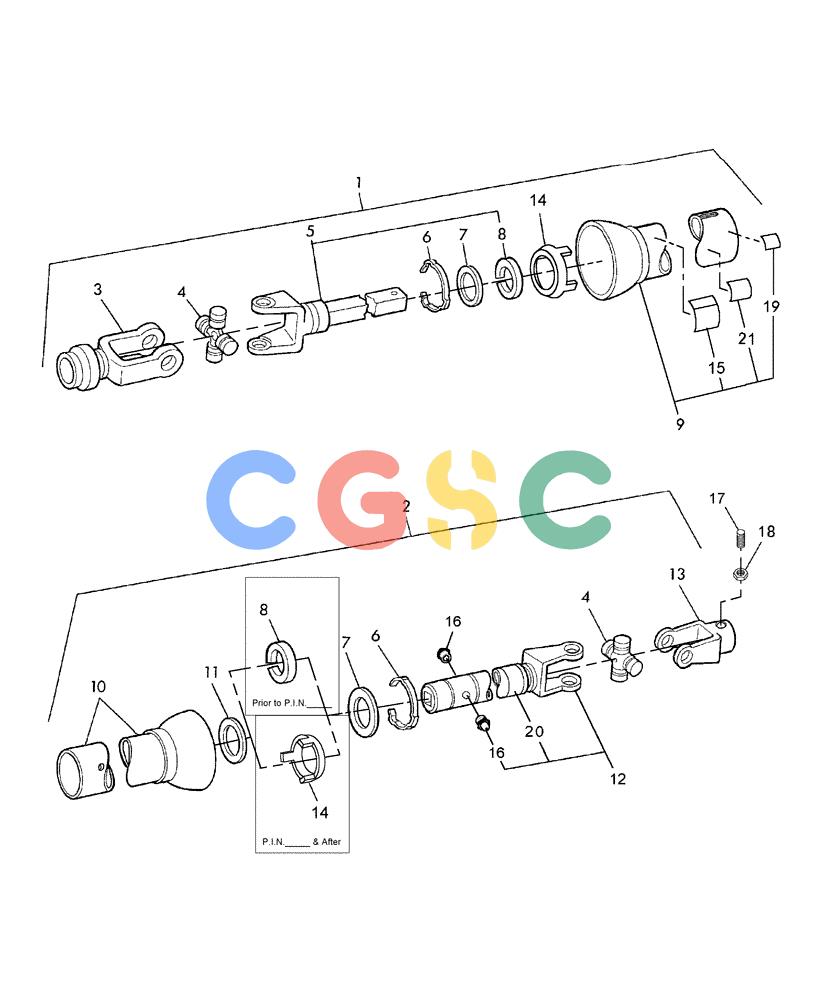

凯斯零件查询(SBX520) - CASE IH SQUARE BALER (1/02-8/08) (012) - POWER TAKE OFF, FRONT, SBX520 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
856702
|
[1] |
FRONT PTO ASSY
|
NH
Shaft, Metal Shield Superseded by part number: 87045655
|
| 1. |
87045656
|
[1] |
FRONT PTO ASSY
|
PA
Shaft, Plastic Shield
|
| 2. |
859332
|
[1] |
INNER SHIELD,14.75" L
|
NH
Metal, W/Yoke & Tube Assy Superseded by part number: 87045655
|
| 2. |
87045657
|
[1] |
REAR PTO ASSY
|
PA
Tube, Plastic Shield
|
| 3. |
855141
|
[1] |
YOKE
|
NH
Slide Collar
|
| 4. |
29214
|
[2] |
BEARING ASSY
|
NH
Superseded by part number: 84355326
|
| 5. |
857305
|
[1] |
PTO SHAFT
|
NH
|
| 6. |
56760
|
[2] |
SNAP RING
|
NH
|
| 7. |
56801
|
[2] |
THRUST WASHER
|
NH
Superseded by part number: 613437R1
|
| 8. |
579113
|
[2] |
BUSHING,2.082" ID x 2.804" OD x 0.375"
|
NH
Superseded by part number: 850432
|
| 9. |
228150
|
[1] |
OUTER SHIELD
|
NH
Metal Shield Superseded by part number: 87048214, 87048274, 87048275, 87048213
|
| 9. |
87048213
|
[1] |
OUTER SHIELD
|
PA
Plastic Shield
|
| 10. |
228154
|
[1] |
INNER SHIELD
|
NH
Metal Shield Superseded by part number: 87048275, 87048214, 87048274, 87048213
|
| 10. |
87048214
|
[1] |
INNER SHIELD
|
PA
Plastic Shield
|
| 11. |
754317
|
[1] |
NYLON BEARING
|
CAS
Bearing, Support
|
| 11. |
87048275
|
[1] |
BEARING COVER
|
PA
|
| 12. |
859331
|
[1] |
YOKE,14.75" L
|
NH
Yoke & Tube, Includes: Ref. 8, 16 & (2) 17
|
| 13. |
29212
|
[1] |
YOKE
|
NH
|
| 14. |
87048274
|
[2] |
BEARING COVER
|
PA
Bearing
|
| 15. |
849471
|
[1] |
DANGER DECAL
|
NH
English
|
| 15. |
849482
|
[1] |
DANGER DECAL
|
NH
French
|
| 16. |
219-87
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 17. |
763883
|
[1] |
SET SCREW,1/2" - 20 x 1-1/4"
|
NH
HS, Self-Locking, Cone Pt, 1/2"-20 x 1-1/4"
|
| 18. |
425-158
|
[1] |
JAM NUT,Jam, 1/2"-20, G5
|
CAS
|
| 19. |
165109
|
[1] |
DECAL
|
NH
Lube Fitting
|
| 20. |
849472
|
[1] |
DANGER DECAL
|
NH
English
|
| 20. |
849483
|
[1] |
DANGER DECAL
|
NH
French
|
| 21. |
87041061
|
[1] |
WARNING DECAL
|
BEL
English
|
| 21. |
87042013
|
[1] |
DECAL
|
BEL
WARNING, French
|
