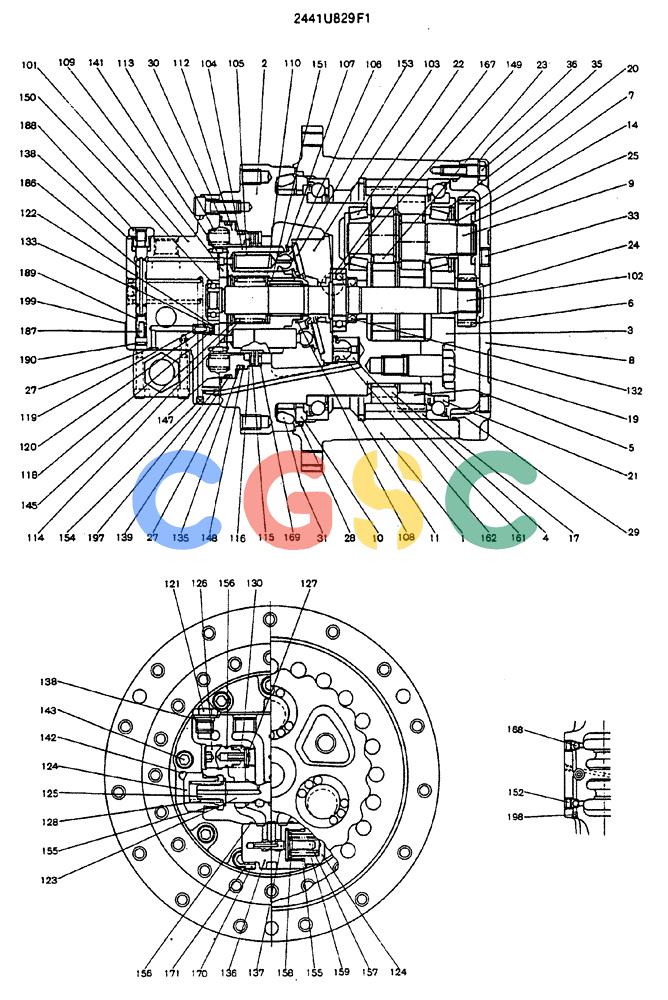

| . . | 2441U829F1 | [1] | HYDRAULIC MOTOR | KOB(PROPELLING) CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2441U829F5 |
| 1. | 2441U750S1 | [1] | HUB | KOB Superseded by part number: 2441U750S1M |
| 2. | 2441U829S2 | [1] | SPINDLE | |
| 3. | 2441U829S3 | [1] | FLANGE, HOLD | FLANGE, HOLD |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR |
| 6. | 2441U829S6 | [1] | CLUTCH INPUT SHAFT | KOBINPUT |
| 7. | NSS | [3] | NOT SOLD SEPARAT | CONGEAR, SPARE |
| 8. | 2441U750S8 | [1] | COVER | KOB |
| 9. | 2441U829S9 | [3] | SHAFT | KOB |
| 10. | 2441U750S10 | [1] | RING | KOBDISTANCE |
| 11. | 2441U750S11 | [1] | RING | KOB |
| 14. | 2441U750S14 | [3] | SEPARATOR | KOBDISTANCE |
| 17. | 2441U750S17 | [24] | PIN | KOB |
| 19. | 2441U829S19 | [3] | SPECIAL BOLT | KOB |
| 20. | 2441U524S20 | [3] | SNAP RING | KOB |
| 21. | 2441U750S21 | [2] | BALL BEARING | KOB |
| 22. | 2441U750S22 | [6] | ROLLER BEARING | KOB |
| 23. | 2441U750S23 | [6] | BEARING | KOB |
| 24. | ZR16X02800 | [1] | SNAP RING | KOB |
| 25. | ZR16X03500 | [3] | RING | KOBRetaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 27. | ZD12P00800 | [3] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 28. | ZD12G02800 | [1] | O-RING | KOBO-RING Superseded by part number: ZD12G28000 |
| 29. | 2441U829S29 | [1] | O-RING | KOB |
| 30. | 2441U829S30 | [1] | O-RING | KOB |
| 31. | 2441U750S31 | [1] | SEAL | KOB |
| 33. | 2441U829S33 | [2] | PLUG | KOB |
| 35. | ZS11C12045 | [12] | CAPSCREW M12x1.75x45mm | CAPSCREW M12x1.75x45mm |
| 36. | 2441U829S36 | [12] | WASHER | KOB |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONFLANGE, REAR |
| 102. | 2441U750S102 | [1] | SHAFT | KOB |
| 103. | 2441U829S103 | [1] | PLATE | KOB |
| 104. | 2441U750S104 | [1] | BLOCK | KOB |
| 105. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 106. | NSS | [1] | NOT SOLD SEPARAT | CONSHOE |
| 107. | 2441U750S107 | [1] | PLATE | KOBRETAINER Superseded by part number: 2441U829S301 |
| 108. | 2441U750S108 | [1] | BALL | KOBTHRUST |
| 109. | 2441U524S109 | [1] | PLATE | KOB |
| 110. | 2441U750S110 | [2] | WASHER | KOB |
| 112. | 2441U524S112 | [1] | PISTON | KOB |
| 113. | 2441U496S39 | [10] | SPRING | KOB |
| 114. | 2441U524S114 | [1] | SPRING | KOB |
| 115. | 2441U524S115 | [2] | PLATE | KOB |
| 116. | 2441U496S42 | [2] | PLATE | KOB |
| 118. | 2441U496S44 | [1] | SPRING SEAT | KOB |
| 119. | 2441U496S45 | [1] | HYDRAULIC VALVE | KOB |
| 120. | 2441U496S46 | [1] | SPRING | KOB |
| 121. | 2441U524S121 | [1] | PLUG | KOB |
| 122. | 2441U496S53 | [1] | RING | KOB |
| 123. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 124. | 2441U496S48 | [3] | PLUG | KOB |
| 125. | 2441U496S49 | [2] | STOPPER | |
| 126. | 2441U496S50 | [2] | PLUG | KOB |
| 127. | 2441U496S51 | [2] | HYDRAULIC VALVE | KOB |
| 128. | 2441U496S52 | [2] | SPRING | KOB |
| 130. | 2441U496S54 | [2] | SPRING | KOB |
| 132. | 2441U750S132 | [1] | SEAL KIT | HIT Superseded by part number: Y0595100900 |
| 133. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 135. | ZD12P14500 | [1] | O-RING | KOB |
| 136. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 137. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 138. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 139. | ZD12G17000 | [1] | O-RING,169.30mm ID x 180.70mm OD x 5.70mm | KOB |
| 141. | 2441U829S141 | [2] | PIN | KOB |
| 142. | 2441U829S142 | [2] | PIN | KOBPIN |
| 143. | ZS23C14040 | [9] | SCREW,Hex Socket Head, M14 x 40mm | KOBM14x2.0x40mm |
| 145. | 2441U829S145 | [1] | SNAP RING | KOBRING, SNAP |
| 147. | ZD85G17000 | [1] | BACK-UP RING | KOB |
| 148. | ZD85P14500 | [1] | BACK-UP RING | KOB |
| 149. | 2441U829S149 | [1] | BEARING ASSY | KOB Superseded by part number: 81875518 |
| 150. | 2441U829S150 | [1] | BALL BEARING | KOB Superseded by part number: 7781139 |
| 151. | 2441U829S151 | [3] | BEARING | KOB |
| 152. | 2441U829S152 | [2] | PLUG | KOB |
| 153. | 2441U750S153 | [1] | THRUST PLATE | KOB Superseded by part number: 2441U829S302 |
| 154. | 2441U829S154 | [2] | EXPANDER | KOB |
| 155. | ZD12P03200 | [3] | O-RING | KOBID 31.70 ± 0.31 x OD 38mm |
| 156. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 157. | 2441U750S157 | [1] | STOP | KOB |
| 158. | 2441U750S158 | [1] | SPRING | KOB |
| 159. | 2441U750S159 | [1] | SPRING | KOB |
| 161. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 162. | NSS | [1] | NOT SOLD SEPARAT | CONSHOE |
| 167. | 2441U829S167 | [2] | BALL | KOB |
| 168. | 2441U829S168 | [2] | BALL | KOB |
| 169. | 2441U750S169 | [1] | PLATE | KOB |
| 170. | ZS23C08060 | [4] | SCREW,Hex Socket Head, M8 x 60mm | KOBM08x1.25x60mm |
| 171. | 2441U750S171 | [4] | LOCK WASHER | KOB |
| 186. | 2441U829S186 | [1] | SPOOL | KOB |
| 187. | 2441U829S187 | [1] | STOPPER | |
| 188. | 2441U829S188 | [1] | HYD CONNECTOR | KOBCOUPLING |
| 189. | 2441U829S189 | [1] | SPRING | |
| 190. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 197. | 2441U831S175 | [1] | ORIFICE | ORIFICE |
| 198. | 2441U829S198 | [3] | EXPANDER | KOB |
| 199. | 2441U829S199 | [1] | PLATE | KOB |
| . . | 2441U829R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 27~31, 132, 133, 135, 138, 139, 147, 148, 155, 156 & 190 |
| . . | 2441U829R200 | [1] | SEAL KIT | KOBCONSISTS OF ITEM 2, 3 & 19 |
| . . | 2441U829R300 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 4, 5, 9, 22 & 23 |
| . . | 2441U829R400 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 7 |
| . . | 2441U829R500 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 101, 123, 154, 198 & 199 |
| . . | 2441U829R600 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 105 & 106 |
| . . | 2441U829R700 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 161 & 162 Superseded by part number: 24041Z38F1 |
| . . | 2441U750R600 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 136 & 137 |
