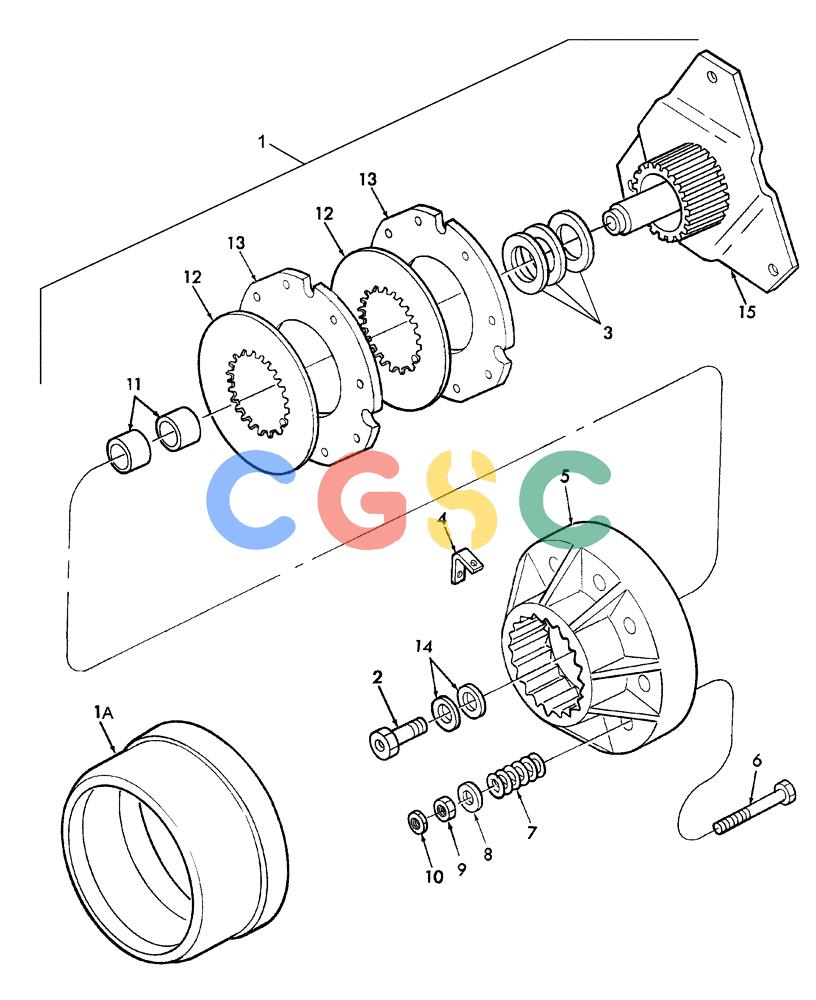

| 1. |
86626094
|
[1] |
CLUTCH
|
NH
PTO
|
| 1A. |
86626065
|
[1] |
SHIELD
|
NH
|
| . . |
135270
|
[3] |
SERRATED SCREW,5/16" - 18 x 3/4"
|
NH
|
| 2. |
221481
|
[1] |
BOLT,Hex, 1/4" - 28 x 1-3/4", Gr 5
|
NH
HH, Drilled, G5, 1/2"-13 x 1-3/4"
|
| . . |
219-90
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
Superseded by part number: 87569
|
| 3. |
189423
|
[2] |
SHIM,.030" Thk
|
NH
|
| 4. |
645650
|
[3] |
BRACKET
|
NH
|
| . . |
614-6020
|
[3] |
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 120100
|
| . . |
322357
|
[3] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| . . |
825-1406
|
[3] |
NUT,M6, Cl 8
|
CAS
Superseded by part number: 86500688
|
| 5. |
86640861
|
[1] |
HOUSING
|
NH
Includes: Ref. 11
|
| 6. |
814-10120
|
[8] |
BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8
|
CAS
CRS Superseded by part number: 86508574
|
| 7. |
86836510
|
[8] |
SPRING
|
NH
|
| 8. |
34187
|
[8] |
WASHER
|
PA
Hardened, 3/8" Superseded by part number: 9801065
|
| 9. |
825-1410
|
[8] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 10. |
829-4410
|
[8] |
THIN NUT,Thin, M10 x 1.5, Cl 05
|
CAS
Superseded by part number: 934300R1
|
| 11. |
184317
|
[1] |
BUSHING,34.88mm ID x 38.13mm OD x 33.3mm L
|
NH
|
| 12. |
261798
|
[2] |
CLUTCH PLATE,101.6mm ID x 174.6mm OD x 7.11mm Thk
|
NH
Friction
|
| 13. |
258425
|
[2] |
CLUTCH PLATE
|
NH
Superseded by part number: 80453419
|
| 14. |
58102
|
[3] |
WASHER
|
PA
Superseded by part number: 65319
|
| 15. |
86977224
|
[1] |
CLUTCH
|
NH
|
| . . |
814-10040
|
[3] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120112
|
| . . |
285072
|
[3] |
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
|
NH
(3/8")
|
