| 1. |
86635535
|
[1] |
GEARBOX
|
NH

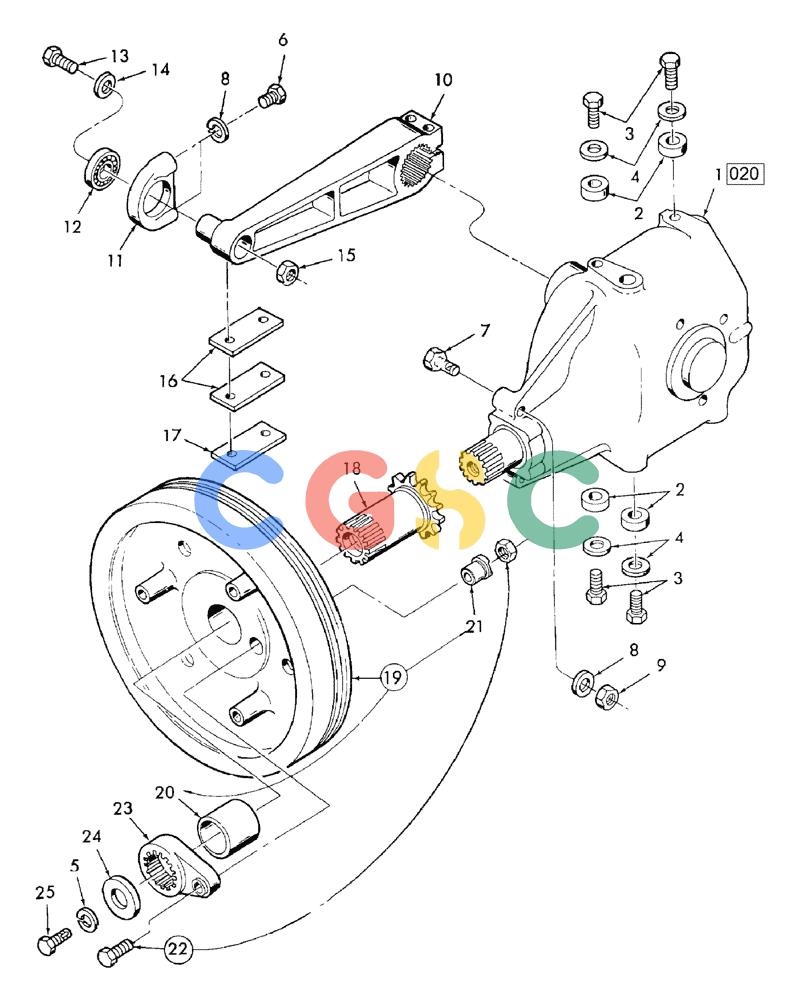

Main Drive, SBX520, Refer to Fig. 020
|
| 1. |
86635580
|
[1] |
GEARBOX
|
NH
Main Drive, SBX530 & SBX540, Refer to Fig. 020 Superseded by part number: 86635579
|
| 1. |
86635579R
|
[1] |
REMAN-GEARBOX
|
PA
SBX530, SBX540, Both (12/01-8/08), Reman for New PN 86635580
|
| 1. |
86635579C
|
[1] |
CORE-GEARBOX
|
PA
Return Number
|
| 2. |
86640836
|
[4] |
SPACER
|
NH
21/32" ID x 1-1/2" OD x 3/4" Thick
|
| 3. |
413-1032
|
[4] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
Superseded by part number: 86505999
|
| 4. |
86516680
|
[4] |
WASHER
|
NH
41/64" ID x 1-1/2" OD x .107" Thick
|
| 5. |
130358
|
[1] |
WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk
|
NH
Hardened, 5/8"
|
| 6. |
413-820
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 7. |
413-856
|
[2] |
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
|
CAS
Superseded by part number: 9637417
|
| 8. |
86513238
|
[4] |
LOCK WASHER,.515” ID x 1.070” OD x .120” TK
|
NH
Belleville, 1/2"
|
| 9. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 10. |
86640881
|
[1] |
CRANKSHAFT
|
NH
SBX520
|
| . . |
413-1072
|
[2] |
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5
|
CAS
Superseded by part number: 280183
|
| . . |
140048
|
[2] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| . . |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 10. |
86640880
|
[1] |
LINK CONROD
|
NH
SBX530, SBX540
|
| 11. |
86525589
|
[1] |
BEARING ASSY,36.52mm ID
|
NH
SBX520, Includes: Ref. 12
|
| 11. |
86525588
|
[1] |
BEARING ASSY,44.44mm ID
|
NH
SBX530 & SBX540, Includes: Ref. 12
|
| 12. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
BEARING, SBX520, Incl in 11
|
| 13. |
413-840
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87972
|
| 14. |
29684
|
[1] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
17/32" ID x 2" OD x 3/16" Thk
|
| 14. |
86629511
|
[1] |
WASHER,13.49mm ID x 63.5mm OD x 6.35mm Thk
|
NH
17/32" ID x 2-1/2" OD x 1/4" Thick, SBX530, SBX540
|
| 15. |
232-4148
|
[1] |
NUT,1/2"-13, GC
|
CAS
Superseded by part number: 86992215
|
| 16. |
286948
|
[2] |
CUSHION
|
NH
Tire Carcass
|
| 17. |
286947
|
[1] |
PLATE
|
NH
Face, Cushion
|
| . . |
413-640
|
[2] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
| . . |
232-4146
|
[2] |
NUT,3/8"-16, GC
|
CAS
Superseded by part number: 88902
|
| 18. |
86640891
|
[1] |
SPROCKET
|
NH
& Hub, 13 Teeth Superseded by part number: 635210
|
| 19. |
86626120
|
[1] |
FLYWHEEL
|
NH
1 Belt Groove, SBX520, Includes: Ref. 20 & 21
|
| 19. |
86626116
|
[1] |
FLYWHEEL
|
NH
1 Belt Groove, SBX530, SBX540, Includes: Ref. 20 & 21
|
| . . |
219-87
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 20. |
636420
|
[1] |
DRIVE BUSHING,57.15mm ID x 60.49mm OD x 76mm L
|
NH
|
| 21. |
9604539
|
[1] |
SLEEVE
|
NH
Shear Bolt, SBX520
|
| 21. |
9604553
|
[1] |
SLEEVE
|
NH
Shear Bolt, SBX530, SBX540
|
| 22. |
633169
|
[1] |
BOLT AND NUT
|
NH
SBX520
|
| 22. |
9806603
|
[1] |
SHEAR BOLT,M10-1.5 x 62mm L
|
NH
& Nut, SBX530, SBX540
|
| 23. |
86977125
|
[1] |
HUB
|
NH
Shear Bolt, SBX520
|
| 23. |
848659
|
[1] |
HUB
|
NH
Shear Bolt, SBX530, SBX540
|
| 24. |
636422
|
[1] |
WASHER,16.66mm ID x 69.85mm OD
|
NH
21/32" ID x 2-3/4" OD x 3/8" Thick
|
| 25. |
848780
|
[1] |
BOLT
|
NH
CL 8.8, Self-Locking, M16 x 2 x 40
|
