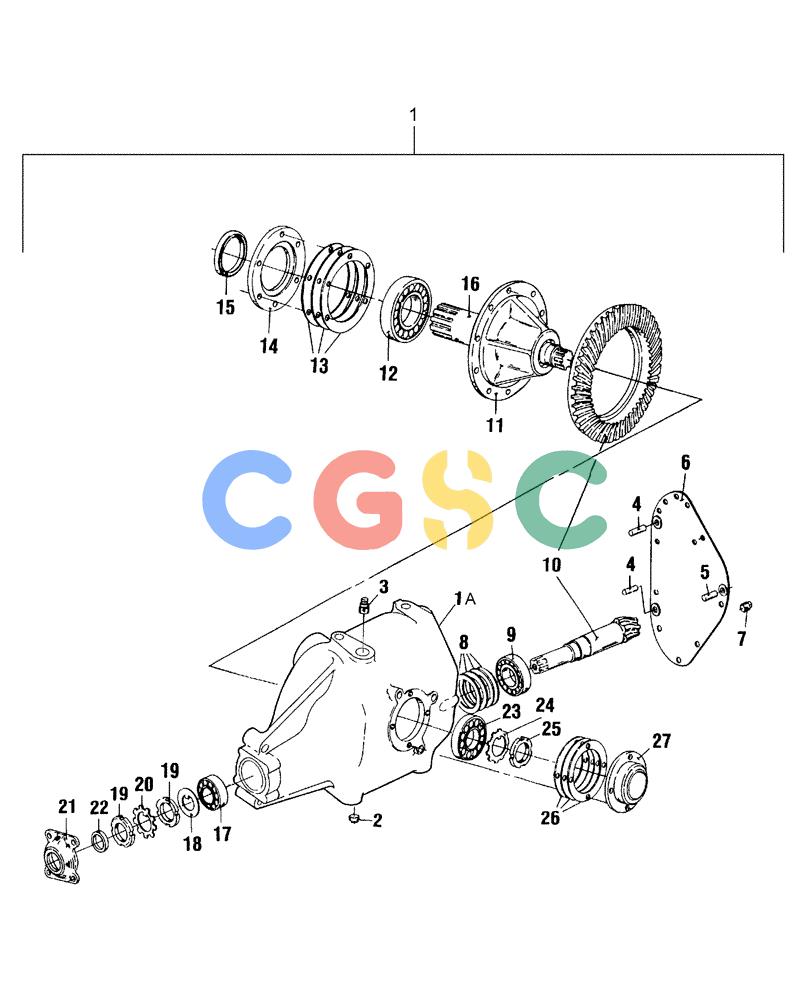

| 1. |
86635535
|
[1] |
GEARBOX
|
NH
SBX520
|
| 1. |
86635580
|
[1] |
GEARBOX
|
NH
SBX530, SBX540 Superseded by part number: 86635579
|
| 1. |
86635579R
|
[1] |
REMAN-GEARBOX
|
PA
SBX530, SBX540, Both (12/01-8/08), Reman for New PN 86635580
|
| 1. |
86635579C
|
[1] |
CORE-GEARBOX
|
PA
Return Number
|
| 1A. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
HOUSING Gearbox, SBX520
|
| 2. |
217-517
|
[1] |
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
|
CAS
|
| 3. |
9821757
|
[1] |
PLUG
|
NH
Pipe
|
| 4. |
378398
|
[2] |
PIN
|
NH
10mm x 40mm Superseded by part number: 354775
|
| 5. |
378399
|
[1] |
DOWEL,M12 x 40
|
NH
|
| 6. |
449785
|
[1] |
COVER
|
NH
|
| . . |
413-512
|
[12] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187196, 87872
|
| . . |
322358
|
[12] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 7. |
86539484
|
[1] |
PIPE PLUG,Sq Hd, 1/8"-27, NTPF
|
NH
|
| 8. |
38034
|
[1] |
SCREW,.002" Thk
|
NH
SBX520 Superseded by part number: 80038034
|
| 8. |
38035
|
[1] |
SHIM,.005" Thk
|
NH
SBX520
|
| 8. |
38036
|
[1] |
SHIM,.007" Thk
|
NH
SBX520
|
| 8. |
38037
|
[1] |
SHIM,.010" Thk
|
NH
SBX520
|
| 8. |
222554
|
[1] |
SHIM,.005" Thk
|
NH
|
| 8. |
222555
|
[1] |
SHIM,.003" Thk
|
NH
|
| 9. |
86529553
|
[1] |
BEARING ASSY,48.41mm ID x 95.28mm OD x 30.37mm W
|
NH
Tapered, Half Tolerance, SBX520
|
| 9. |
86529552
|
[1] |
TAPERED BEARING,50.8mm ID x 111.25mm OD x 30.16mm W
|
NH
Tapered, Half Tolerance, SBX530, SBX540
|
| 10. |
9827515
|
[1] |
GEAR SET
|
NH
Ring & Pinion, SBX520
|
| 10. |
9806493
|
[1] |
GEAR SET
|
PA
Ring & Pinion, SBX530, SBX540
|
| . . |
614-12030
|
[10] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| . . |
80679
|
[10] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 11. |
56541
|
[1] |
HUB
|
NH
Ring Gear, SBX520
|
| 11. |
188805
|
[1] |
HUB
|
NH
Ring Gear, SBX530, SBX540
|
| 12. |
64373H
|
[1] |
ROLLER BEARING,82.56mm ID x 30.26mm W
|
IH
Superseded by part number: 86629496
|
| 13. |
29814
|
[1] |
SHIM,0.076mm Thk
|
NH
(.003")
|
| 13. |
29815
|
[1] |
SHIM,0.127mm Thk
|
NH
(.005")
|
| 13. |
29813
|
[1] |
SHIM,0.178mm Thk
|
NH
(.007")
|
| 14. |
86977043
|
[1] |
RETAINER
|
NH
Bearing
|
| . . |
413-620
|
[6] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187207, 88011
|
| . . |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 15. |
37705
|
[1] |
OIL SEAL,82.55mm ID x 108.13mm OD x 8.41mm Thk
|
NH
|
| 16. |
848925
|
[1] |
CRANKSHAFT
|
NH
|
| 17. |
37734
|
[1] |
BEARING ASSY,44.98mm ID x 82.93mm OD x 25.4mm W
|
NH
Tapered
|
| 18. |
54167
|
[1] |
WASHER
|
NH
Keyed Superseded by part number: 80054167
|
| 19. |
9615771
|
[2] |
BEARING LOCK NUT,44.026 mm ID x 65 mm OD
|
NH
|
| 20. |
58153
|
[1] |
BEARING WASHER,45.52mm ID x 70.2mm OD x 1.8mm Thk
|
NH
|
| 21. |
86629504
|
[1] |
CAP COVER
|
NH
|
| . . |
219-87
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 22. |
37707
|
[1] |
OIL SEAL,41.27mm ID x 54.13mm OD x 6.91mm Thk
|
NH
|
| 23. |
37436
|
[1] |
TAPERED BEARING,55.58mm ID x 96.84mm OD x 26.26mm W
|
NH
|
| 24. |
37426
|
[1] |
LOCK WASHER,Bearing, W-11
|
NH
Superseded by part number: 80037426
|
| 25. |
9615770
|
[1] |
BEARING LOCK NUT,55 mm ID x 75.4 mm OD x 10.85 mm
|
NH
M55 x 1.5, Bearing
|
| 26. |
38030
|
[1] |
SHIM,.003" Thk
|
NH
|
| 26. |
38031
|
[1] |
SHIM,.005" Thk
|
NH
|
| 26. |
38032
|
[1] |
SHIM,.007" Thk
|
NH
|
| 27. |
799031
|
[1] |
BEARING ASSY,95 mm ID x 146 mm
|
NH
|
| . . |
413-624
|
[4] |
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 72187209, 88044
|
