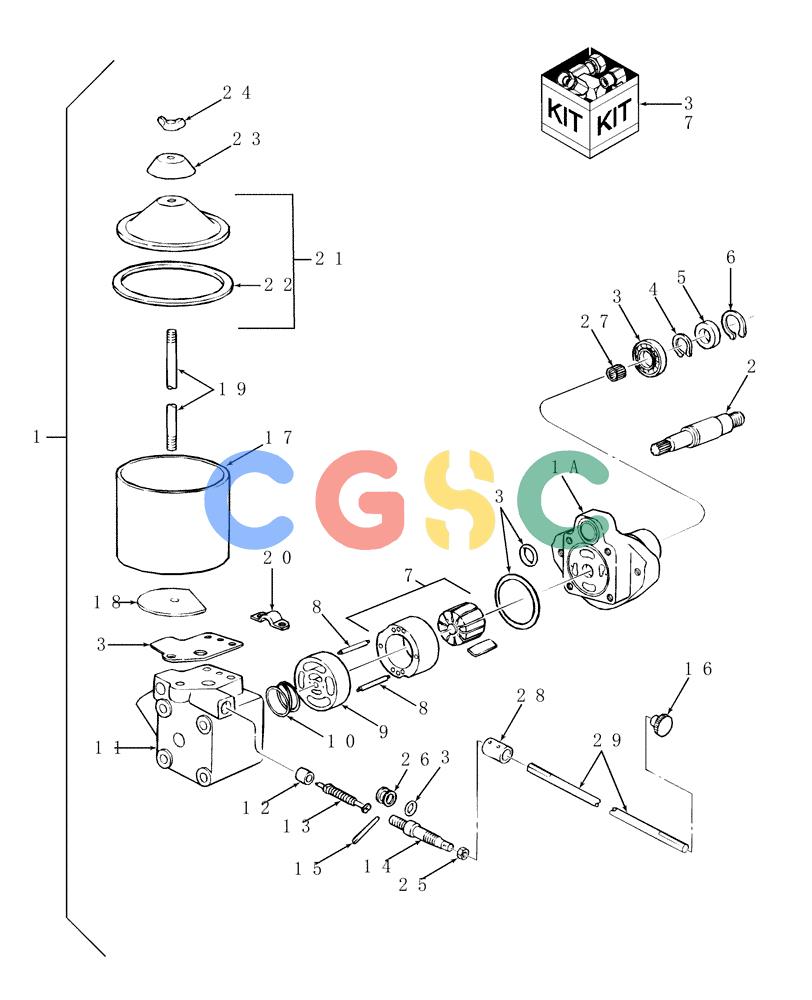

| 1. |
86640940
|
[1] |
HYDRAULIC PUMP,3.93 CC
|
NH
|
| . . |
86640940R
|
[1] |
REMAN-HYD PUMP
|
NH
SBX520, SBX530, SBX540,
|
| . . |
86640940C
|
[1] |
CORE-HYDRAULIC PUMP
|
RAC
Return Number
|
| 1A. |
273366
|
[1] |
BODY
|
NH
Pump
|
| 2. |
87667998
|
[1] |
SHAFT
|
NH
|
| . . |
126-13
|
[1] |
WOODRUFF KEY,#61, 3/16" x 5/8"
|
CAS
Superseded by part number: 88406
|
| 3. |
128619
|
[1] |
SEAL KIT
|
NH
Includes: Seal Shaft, (3) O-Rings, Cover Gasket & Reservoir Gasket
|
| 4. |
100-1166
|
[1] |
SNAP RING,#66, Ext
|
CAS
Superseded by part number: 41329
|
| 5. |
539103R91
|
[1] |
BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"
|
IH
Superseded by part number: 86629493
|
| 6. |
100-21156
|
[1] |
SNAP RING,1.562", Int, #156
|
CAS
Superseded by part number: 9635563
|
| 7. |
87667977
|
[1] |
KIT
|
NH
Cartridge, Includes: Rotor, (10) Vanes & O-Ring Superseded by part number: 84306043
|
| 8. |
127469
|
[2] |
PIN
|
NH
3/16" x 1-1/16"
|
| 9. |
128623
|
[1] |
SUPPORT
|
NH
Pressure
|
| 10. |
128624
|
[1] |
SPRING
|
NH
|
| 11. |
273353
|
[1] |
COVER
|
NH
Pump
|
| . . |
413-648
|
[4] |
BOLT,Hex, 3/8" - 16 x 3", Gr 5
|
CAS
Superseded by part number: 280161
|
| 12. |
273365
|
[1] |
SEAT/SLOT
|
NH
|
| 13. |
709186
|
[1] |
HYDRAULIC VALVE
|
NH
Poppet
|
| 14. |
9600755
|
[1] |
SCREW,3/8" - 24 x 2 15/16"
|
NH
|
| 15. |
273363
|
[1] |
PIN
|
NH
|
| 16. |
127476
|
[1] |
KNOB
|
NH
|
| 17. |
128625
|
[1] |
TANK
|
NH
Superseded by part number: 84470933
|
| 18. |
126127
|
[1] |
PLATE
|
NH
Reservoir Superseded by part number: 84470933
|
| 19. |
136077
|
[1] |
STUD
|
NH
Superseded by part number: 84470933
|
| . . |
425-104
|
[1] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 20. |
127462
|
[1] |
HALF-FLANGE
|
NH
|
| . . |
413-48
|
[2] |
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
|
CAS
Superseded by part number: 88542
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
Superseded by part number: 72187247, 80682
|
| 21. |
136076
|
[1] |
COVER
|
NH
Superseded by part number: 84470933
|
| 22. |
136082
|
[1] |
GASKET
|
NH
Superseded by part number: 84306042
|
| 23. |
134256
|
[1] |
SHIELD
|
NH
Rain
|
| 24. |
129-409
|
[1] |
WING NUT,1/4"-20
|
CAS
Superseded by part number: 86627130
|
| 25. |
232-4646
|
[1] |
LOCK NUT,3/8"-24, GC
|
CAS
Superseded by part number: 80855
|
| 26. |
86629497
|
[1] |
WASHER
|
NH
Stop
|
| 27. |
H754721
|
[1] |
BEARING
|
CAS
Superseded by part number: 127468
|
| 28. |
86640901
|
[1] |
COUPLING,6.53mm ID x 15.88mm OD x 22.23mm L
|
NH
|
| . . |
86512756
|
[2] |
SET SCREW,Hex Skt, #10 - 24 x 1/4"
|
NH
|
| 29. |
848633
|
[1] |
SHAFT
|
NH
|
| 30. |
277203
|
[1] |
REPAIR KIT
|
NH
Hydraulic Pump, Includes: Ref. 12, 15, 25, & 26
|
