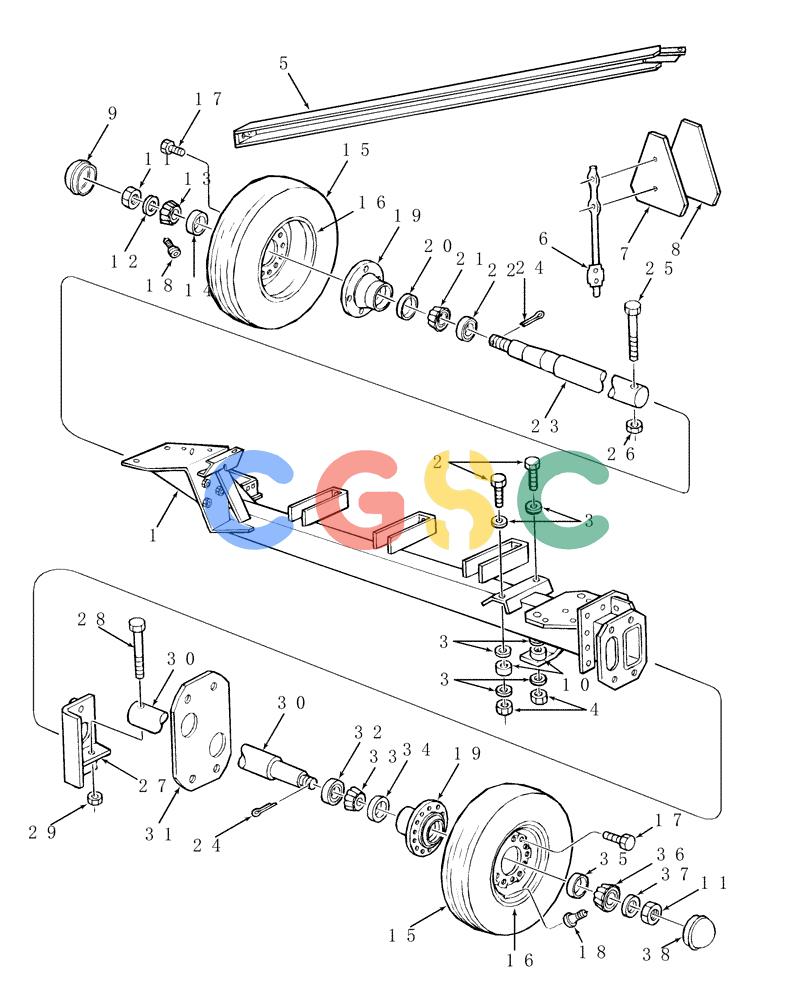

| 1. |
86635500
|
[1] |
AXLE
|
NH
SBX520, SBX530
|
| 1. |
86635605
|
[1] |
AXLE
|
NH
SBX540 Superseded by part number: 86635604
|
| . . |
814-12050
|
[1] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 9706702
|
| . . |
614-12040
|
[2] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| . . |
65319
|
[6] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| . . |
832-46412
|
[3] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 2. |
814-10050
|
[2] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 3. |
285072
|
[6] |
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
|
NH
(3/8")
|
| 4. |
832-46410
|
[2] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 5. |
86635505
|
[1] |
BRACE
|
NH
SBX520
|
| 5. |
86635554
|
[1] |
BRACE
|
NH
SBX530
|
| 5. |
86635607
|
[1] |
BRACE
|
NH
SBX540 Superseded by part number: 86630047
|
| . . |
811-10020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| . . |
811-12030
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 120044
|
| . . |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| . . |
86513238
|
[1] |
LOCK WASHER,.515” ID x 1.070” OD x .120” TK
|
NH
Belleville, 1/2"
|
| . . |
825-1410
|
[2] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| . . |
829-1412
|
[1] |
NUT,M12, Cl 10.9
|
CAS
Superseded by part number: 337475
|
| 6. |
195036
|
[1] |
PLATE
|
NH
Pole Mount
|
| 7. |
86547710
|
[1] |
EMBLEM
|
ZED
KIT SMV
|
| . . |
84821
|
[2] |
SCREW,Truss HD, #10 - 24 x 1/2"
|
NH
|
| . . |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| . . |
225-14110
|
[2] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 8. |
86547711
|
[1] |
DECAL,SMV
|
NH
SMV
|
| 9. |
249130
|
[1] |
HUB CAP
|
NH
Hub, RH
|
| 10. |
86610677
|
[2] |
SPACER,10.3mm ID X 19.05mm OD X 14.3mm L
|
NH
|
| 11. |
412106
|
[2] |
SLOTTED NUT,M20 x 1.5, Cl 04
|
NH
|
| 12. |
495-11081
|
[1] |
WASHER,3/4", SAE
|
CAS
Superseded by part number: 87381
|
| 13. |
536056R91
|
[1] |
ROLLER BEARING,0.8656" ID x 0.655"
|
IH
Cone Superseded by part number: 574809
|
| 14. |
574810
|
[1] |
BEARING CUP,45.26mm OD x 12.06mm W
|
NH
|
| 15. |
PL
|
[1] |
PROCURE LOCALLY
|
BAS
TIRE Rib Tread, 5.00-15, 4-Ply, Standard, RH, SBX520
|
| 15. |
224151
|
[1] |
TYRE/TIRE
|
NH
Rib Implement, 27 x 9.50 - 15, 6-Ply, LH SBX520, RH SBX530, SBX540
|
| 15. |
86564435
|
[1] |
TYRE/TIRE
|
NH
Terra Rib, 31 x 13.50-15, 8-Ply, Flotation, LH, SBX530, SBX540 Superseded by part number: TT41N397
|
| 16. |
86622669
|
[1] |
WHEEL
|
NH
Disc, 4 Bolt, Standard, RH, SBX520
|
| 16. |
86621299
|
[1] |
WHEEL
|
NH
6 Bolt, 27 x 9.50-15 Flotation, RH, SBX530, SBX540 W/ 224151 Tire
|
| 16. |
86622671
|
[1] |
WHEEL
|
NH
Disc, 6 Bolt, Flotation, LH, SBX520
|
| 16. |
86621298
|
[1] |
WHEEL
|
NH
Disc, 6 Bolt, for 31x 13.50-15, Flotation, LH, SBX530, SBX540 Superseded by part number: 87047834
|
| 17. |
32383
|
[12] |
BOLT,Wheel, G5, 1/2"-20 x 13/16"
|
NH
Wheel, G5, 1/2"-20 x 13/16"
|
| 18. |
387897R91
|
[1] |
VALVE STEM
|
IH
Superseded by part number: 196033
|
| 18. |
86626246
|
[1] |
VALVE STEM
|
NH
Tubeless Tire, LH, SBX530
|
| 19. |
86978502
|
[1] |
HUB
|
NH
Wheel, RH, SBX520
|
| 19. |
86977071
|
[1] |
HUB
|
NH
Wheel, LH, SBX520
|
| 19. |
86631051
|
[1] |
HUB
|
NH
Wheel, RH, SBX530, SBX540
|
| 19. |
86836910
|
[1] |
HUB
|
NH
Wheel, LH, SBX530, SBX540
|
| 20. |
651817R1
|
[1] |
BEARING CUP
|
IH
Superseded by part number: 84356153
|
| 21. |
651818R91
|
[1] |
ROLLER BEARING,31.77 mm ID x 16.08 mm
|
IH
Superseded by part number: 84356153
|
| 22. |
663004R91
|
[1] |
OIL SEAL
|
IH
Oil Superseded by part number: B13281
|
| 23. |
86977228
|
[1] |
SPINDLE
|
NH
RH
|
| 24. |
432-1020
|
[2] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
Superseded by part number: 86523851
|
| 25. |
814-16080
|
[1] |
BOLT,Hex, M16 x 2 x 80mm, Cl 8.8
|
CAS
Superseded by part number: 120093
|
| 26. |
832-46416
|
[1] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 27. |
86629997
|
[1] |
ANGLE
|
NH
SBX520
|
| . . |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
SBX520
|
| 27. |
86630431
|
[1] |
ANGLE
|
NH
SBX530, SBX540
|
| 28. |
827-12080
|
[1] |
BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9
|
CAS
Superseded by part number: 412085
|
| 30. |
9604345
|
[1] |
SPINDLE
|
NH
SBX520
|
| 30. |
86977195
|
[1] |
SPINDLE
|
NH
SBX530, SBX540
|
| 31. |
86629995
|
[1] |
PLATE
|
NH
Spindle
|
| . . |
614-16050
|
[4] |
BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 120090
|
| . . |
781316
|
[8] |
WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk
|
NH
Hardened
|
| 32. |
100412
|
[1] |
SEAL,44.45mm ID x 69.19mm OD x 10.72mm Thk
|
NH
|
| 33. |
36057
|
[2] |
BEARING CONE,38.11mm ID x 19.05mm W
|
NH
1-1/2" ID
|
| 34. |
453012R1
|
[2] |
BEARING CUP
|
IH
Superseded by part number: 72062
|
| 35. |
618024R1
|
[1] |
BEARING CUP,65.113mm OD x 13.97mm W
|
IH
Outer, SBX520 Superseded by part number: 86516467
|
| 36. |
618023R91
|
[1] |
BEARING ASSY,34.93mm ID x 18.2mm W
|
IH
Outer, SBX520
|
| 37. |
495-21081
|
[1] |
WASHER,3/4"
|
CAS
Superseded by part number: 86511191
|
| 38. |
249127
|
[1] |
HUB CAP
|
NH
LH
|
| . . |
87298555
|
[1] |
KIT
|
MKT
Wheel Bearing Kit / Ship Direct Option
|
