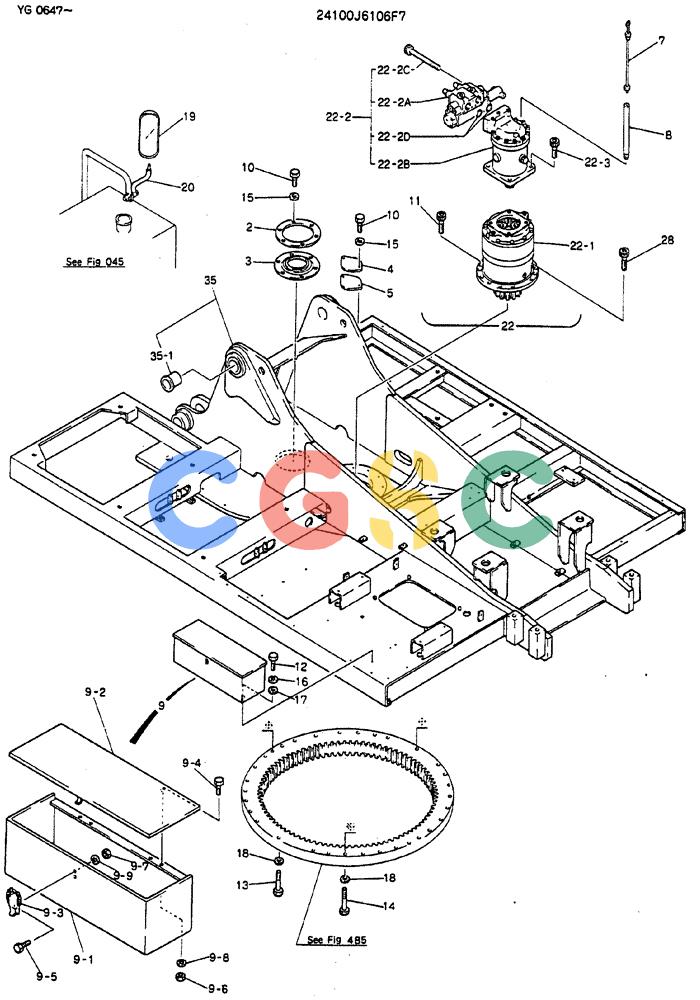

神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (01-001) - FRAME ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6106F7 | [1] | FRAME ASSY, UPP | |
| 2. | 2414T2341 | [1] | COVER | KOB Superseded by part number: YN52F01158P1 |
| 3. | 2414Z234 | [1] | COVER | KOB |
| 4. | 2418T12125 | [1] | PLATE | KOB Superseded by part number: YN52F01159P1 |
| 5. | 2416Z434 | [1] | PACKING | KOBRubber |
| 7. | 2420R561D1 | [1] | DIPSTICK | KOB |
| 8. | 2420T4039C2D7 | [1] | RIGID TUBE | KOB |
| 9. | 24100P1564F1 | [1] | BOX ASSY, TOOL | BOX ASSY, TOOL |
| 9-1. | 2427P2492 | [1] | CAM | CAM |
| 9-2. | 2414P4756 | [1] | COVER | COVER |
| 9-3. | 2432Z451 | [1] | CATCH | KOB |
| 9-4. | ZS16C08016 | [4] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 9-5. | ZS31C03008 | [2] | SCREW,Phillips Drive, Pan HD, M3 x 8mm | KOBM03x0.5x08mm |
| 9-6. | ZN16C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 9-7. | ZN11C03003 | [2] | NUT | KOBM03x0.5mm |
| 9-8. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 9-9. | ZW26X03000 | [2] | LOCK WASHER | HIT |
| 10. | ZS13C10025 | [8] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 11. | ZS23C20055 | [11] | SCREW,Hex Socket Head, M20 x 55mm | KOBM20x2.5x55mm |
| 12. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 13. | ZS13C20100 | [30] | SCREW | KOBM20x2.50x100mm |
| 14. | 2420Z991D1 | [3] | SCREW | KOB |
| 15. | 2418T5373C2 | [8] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 16. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 17. | 2418T10357 | [2] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 18. | R16T0152D3 | [33] | WASHER | KOBFlat -- ID 21 x OD 37 x Th 4.5mm |
| 19. | 2456Z253 | [1] | MIRROR | KOB |
| 20. | 2406P2568 | [1] | STAY | KOB |
| 22. | 24100J6173F1 | [1] | MOTOR ASSY, SWING | MOTOR ASSY, SWING |
| 22-1. | 24100J6175F1 | [1] | REDUCTION UNIT | REDUCTION UNIT |
| 22-2. | 2441U547F1 | [1] | MOTOR ASSY, SWING | MOTOR ASSY, SWING |
| 22-2A. | 2436U1167F1 | [1] | CONTROL VALVE | KOB |
| 22-2B. | 2441U549F1 | [1] | HYDRAULIC MOTOR | KOBHYDR |
| 22-2C. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 22-2D. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 22-3. | ZS23C16040 | [4] | CAPSCREW,Hex Socket Head, M16 x 40mm | KOBSCREW M16x2.0x40mm |
| 28. | ZS23C20065 | [1] | SCREW,Hex Socket Head, M20 x 65mm | KOBM20x2.5x65mm |
| 35. | 2422J1816 | [1] | FRAME, UPP | |
| 35-1. | 2405T1064 | [2] | BUSHING | KOB |
