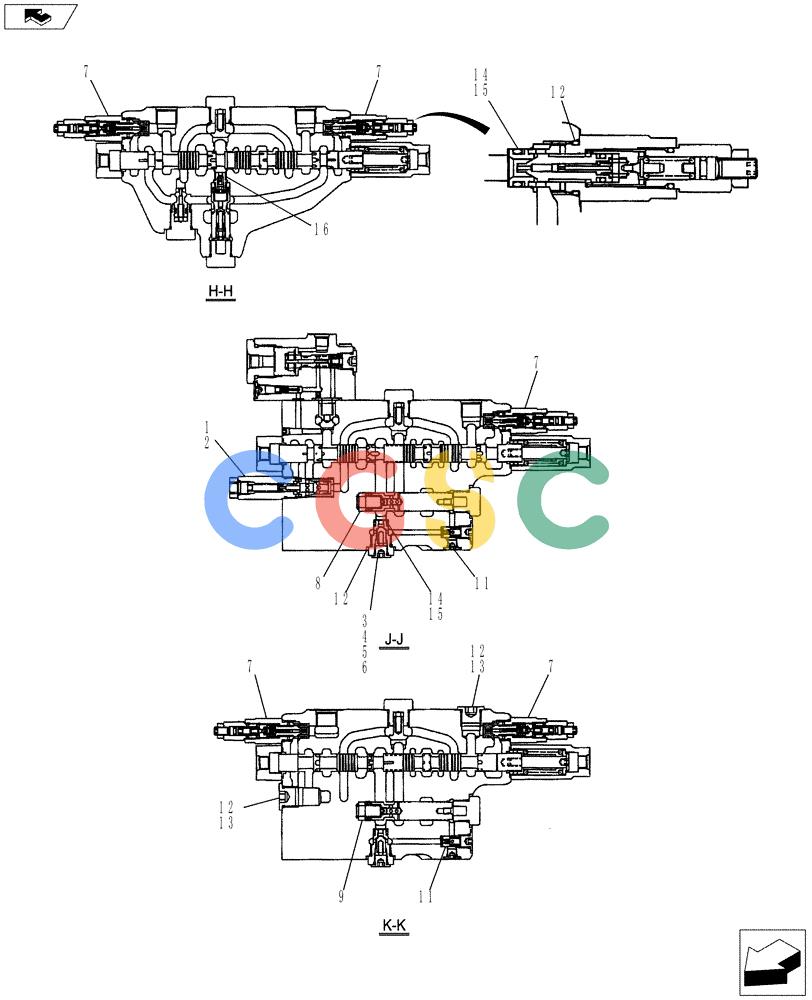

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-017[06]) - VALVE INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
722 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT21V00006F1 | [1] | CHECK VALVE | KOB |
| 2. | ZD12P01800 | [1] | O-RING | KOB |
| 3. | YT21V00005F1 | [5] | CHECK VALVE | KOB |
| 4. | ZD12P01100 | [2] | O-RING | KOB |
| 6. | ZD85P01100 | [1] | BACK-UP RING | KOB |
| 7. | YT22V00016F1 | [8] | VALVE, PRESSURE RELI | KOBEF |
| 8. | YT30V00039S036 | [1] | SPRING | KOB |
| 9. | YT30V00039S037 | [3] | SPRING | KOB |
| 10. | YT30V00039S039 | [2] | PLUG | KOBAssy. |
| 11. | YT30V00039S040 | [2] | PLUG | KOBAssy. |
| 13. | YT30V00042S022 | [6] | CAP | KOB |
| 16. | YT30V00039S091 | [1] | CHECK CONTROL | KOBValve |
